Product Model

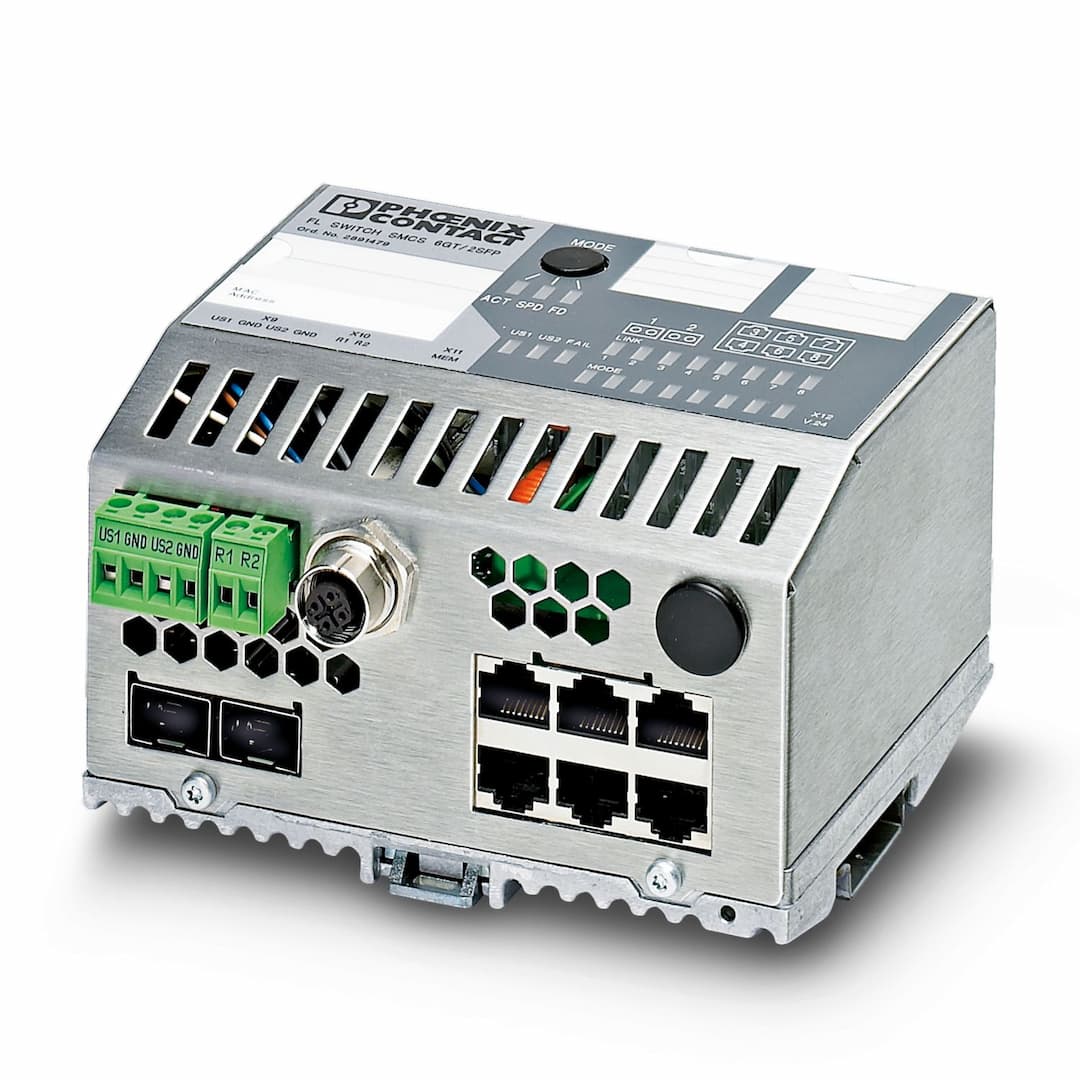

FL SWITCH SMCS 6GT/2SFP
Key Features
- 1Compact design for easy DIN rail mounting.
- 2Six Gigabit (1000 Mbps) RJ45 copper ports for reliable connectivity.
- 3Two Gigabit (1000 Mbps) SFP plugin slots for flexible fiber optic integration.
- 4Supports advanced features like VLAN, IGMP snooping, and Rapid Spanning Tree (RSTP).
- 5Web-based management and SNMP support for seamless network management.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 128 mm | Height | 110 mm |
| Depth | 69 mm | Color | gray aluminum |
| Mounting type | DIN rail mounting | Connection method | RJ45 |
| Note on the connection method | Auto negotiation and autocrossing | Transmission speed | 10/100/1000 Mbps |
| Transmission physics | Copper | Transmission length | 100 m (per segment) |
| Signal LEDs | Supply voltage, data transmission, error, link, activity | No. of channels | 6 (RJ45 ports) |
| Connection method | SFP | Transmission speed | 1000 Mbps (full duplex) |
| Transmission physics | Depending on the SFP module | Transmission length | up to 80 km (Depending on the fiber/SFP module used) |
| No. of channels | 2 (SFP ports) | Connection method | RS-232-C, 6-pos. MINI-DIN socket (PS/2) |
| Product type | Switch | Product family | Managed Switch SMCS |
| Type | Block design | Article revision | 16 |
| Protection class | III (VDE 0106) | Diagnostic functions | RMON History
N:1-Portmirroring
LLDP (Link Layer Discovery Protocol)
SNMP-Traps
ACD (Address Conflict Detection) |
| Basic functions | Store-and-forward switch complies with IEEE 802.3 4 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), PROFINET Device, Media Redundancy Protocol (MRP). | Signal contact control voltage | 24 V (typical) |
| Signal contact control current | 650 mA | PROFINET conformance class | Conformance-Class B |
| PROFINET device function | PROFINET device
Fast Startup | Filter functions | Quality of Service (4 priority classes)
Port-Priorisierung
VLAN
IGMP Snooping (128 groups)
IGMP Query
Auto-Query-Port
Extended Multicast Filtering
Static Multicast Filtering |
| MAC address table | 4000 | Management | Web-based management (HTTP)
SNMP v1/v2
Serial interface (V.24) |
| Redundancy | MRP (Media Redundancy Protocol)
RSTP (Rapid Spanning Tree Protocol)
FRD (Fast Ring Detection)
Large Tree Support | Status and diagnostic indicators | LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex) |
| Supported browsers | Internet Explorer 5.5 or higher | Additional functions | BootP
DHCP-Client |
| Time synchronization | SNTP | Basic functions | Store-and-forward switch complies with IEEE 802.3 4 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), PROFINET Device, Media Redundancy Protocol (MRP). |
| Link Layer Discovery Protocol (LLDP) | As per protocol 802.2 | Current consumption | 650 mA |
| Local diagnostics | US1/2 Supply voltage US1, US2 Green LED
FAIL Div. LED red
LINK Link status Green LED
ACT/MODE Receiving/sending telegrams Green LED
SPD/MODE Data transmission speed Green/orange LED
FD/MODE Duplex mode Green LED | Maximum power dissipation for nominal condition | 15.6 W |
| Test section | 500 V DC 1 min | Transmission medium | Copper
FO |
| Supply voltage (DC) | 24 V DC (redundant) | Supply voltage range | 18 V DC ... 32 V DC |
| Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² | Residual ripple | 3.6 V |
| Typical current consumption | 600 mA (at U | Current consumption | 650 mA |
| Signal contact control voltage | 24 V (typical) | Signal contact control current | 650 mA |
| Connection method | Screw connection | Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
| Stripping length | 7 mm | Degree of protection | IP20 |
| Ambient temperature (operation) | 0 °C ... 55 °C (non-condensing) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Vibration (operation) | in accordance with IEC 60068-2-6: 5g, 10 Hz ... 150 Hz | Air pressure (operation) | 86 kPa ... 108 kPa (2000 m above mean sea level) |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (3500 m above sea level) | Free from substances that could impair the application of coating | Yes |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion A
IEC 61000-4-3 (electromagnetic fields) Criterion A
IEC 61000-4-4 (burst) Criterion A
IEC 61000-4-5 (surge) Criterion A
IEC 61000-4-6 (immunity to conducted interference) Criterion A |
| Noise immunity | EN 61000-6-2:2005 | Noise emission | EN 61000-6-3 +A11 |
| Basic functions | Store-and-forward switch complies with IEEE 802.3 4 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), PROFINET Device, Media Redundancy Protocol (MRP). | Supported browsers | Internet Explorer 5.5 or higher |
| Status display | LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex) |
