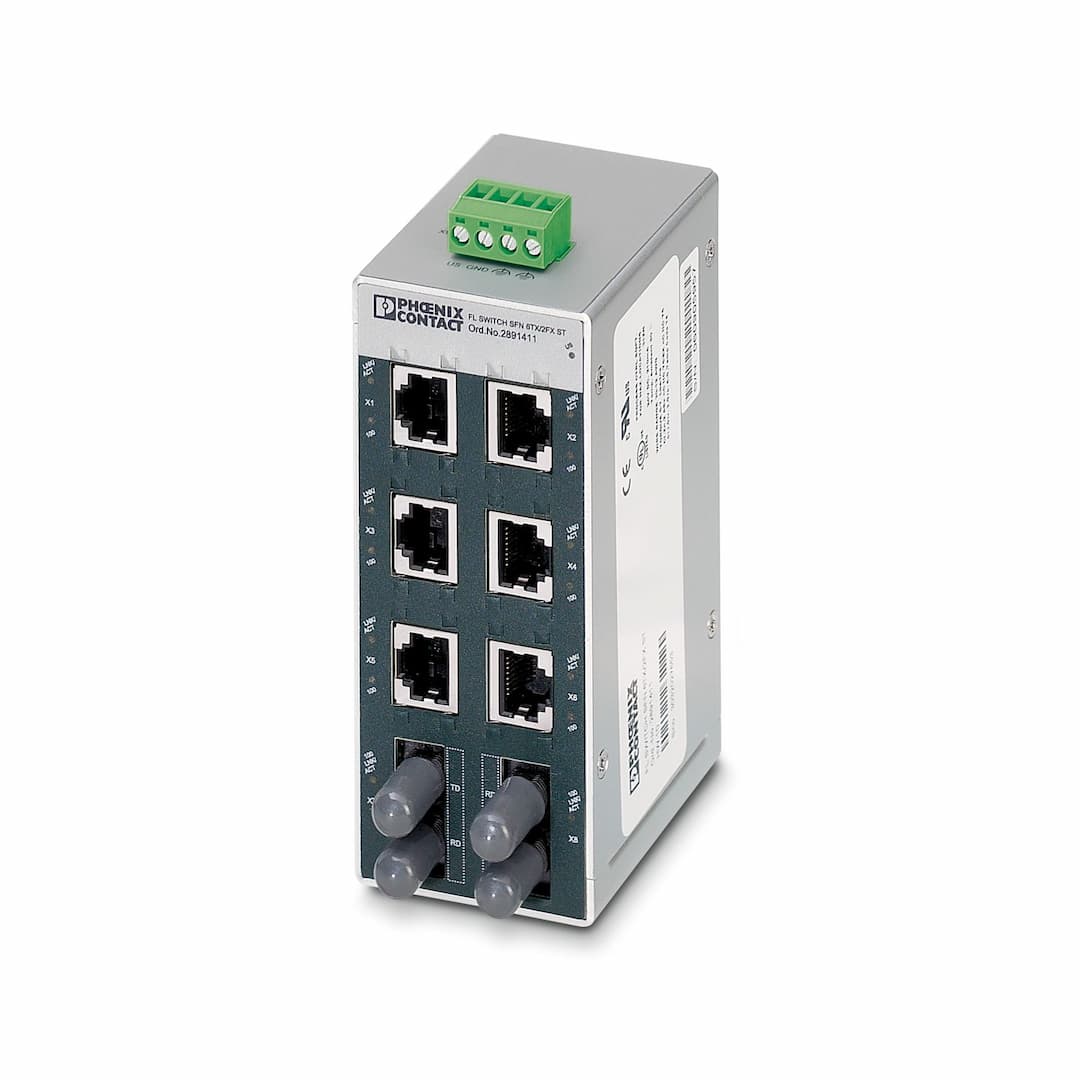

FL SWITCH SFN 6TX/2FX ST
Key Features
- 16 RJ45 Ports & 2 Fiber Optic Ports: Supports both Ethernet and fiber optic connections for versatile network setup.
- 2100 Mbps Full Duplex: Ensures high-speed data transmission with full duplex capability.
- 3Auto Negotiation & Autocrossing Detection: Simplifies installation with automatic data transmission speed detection.
- 4Cable Locking & Port Blocking: Enhances security with cable locking and port blocking features.
- 5LED Diagnostic Indicators: Provides local diagnostic indicators with LEDs for easy network monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 50 mm | Height | 120 mm |
| Depth | 70 mm | Housing material | Aluminum |
| Mounting type | DIN rail mounting | Connection method | RJ45 |
| Note on the connection method | Auto negotiation and autocrossing | Transmission speed | 10/100 Mbps |
| Transmission physics | Ethernet in RJ45 twisted pair | Transmission length | 100 m (per segment) |
| Signal LEDs | Data receive, link status | No. of channels | 6 (RJ45 ports) |
| Connection method | ST | Transmission speed | 100 Mbps (full duplex) |
| Transmission physics | multi-mode fiberglass | Transmission length | 2000 m (Fiberglass 50/125)
2000 m (Fiberglass 62.5/125) |
| Wavelength | 1300 nm | No. of channels | 2 (ST multi-mode) |
| Product type | Switch | Product family | Unmanaged Switch SFN |
| Type | Block design | MTTF | 56.8 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode |
| Status and diagnostic indicators | LEDs: U | Additional functions | Autonegotiation |
| Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode | Local diagnostics | US1/2 Supply voltage Green LED
LNK/ACT Link status/data transmission Green LED
100 Data transmission speed Yellow LED |
| Maximum power dissipation for nominal condition | 5.54 W | Test section | 500 V DC 1 min |
| Transmission medium | Copper
FO | Supply voltage (DC) | 24 V DC |
| Supply voltage range | 9 V DC ... 32 V DC | Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² |
| Residual ripple | 3.6 V | Typical current consumption | 230 mA (at U |
| Connection name | Power supply | pluggable | yes |
| Connection method | Screw connection | Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
| Stripping length | 7 mm | Degree of protection | IP20 |
| Ambient temperature (operation) | 0 °C ... 60 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz | Air pressure (operation) | 86 kPa ... 108 kPa (up to 1500 m above sea level) |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) | Resistance to gases that may endanger the functions, in acc. with DIN 40046-36, DIN 40046-37 | Sulfur dioxide (SO |
| Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC | Noise immunity | EN 61000-6-2:2005 |
| Noise emission | EN 61000-6-4 | Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode |
| Status display | LEDs: U |
