Product Model

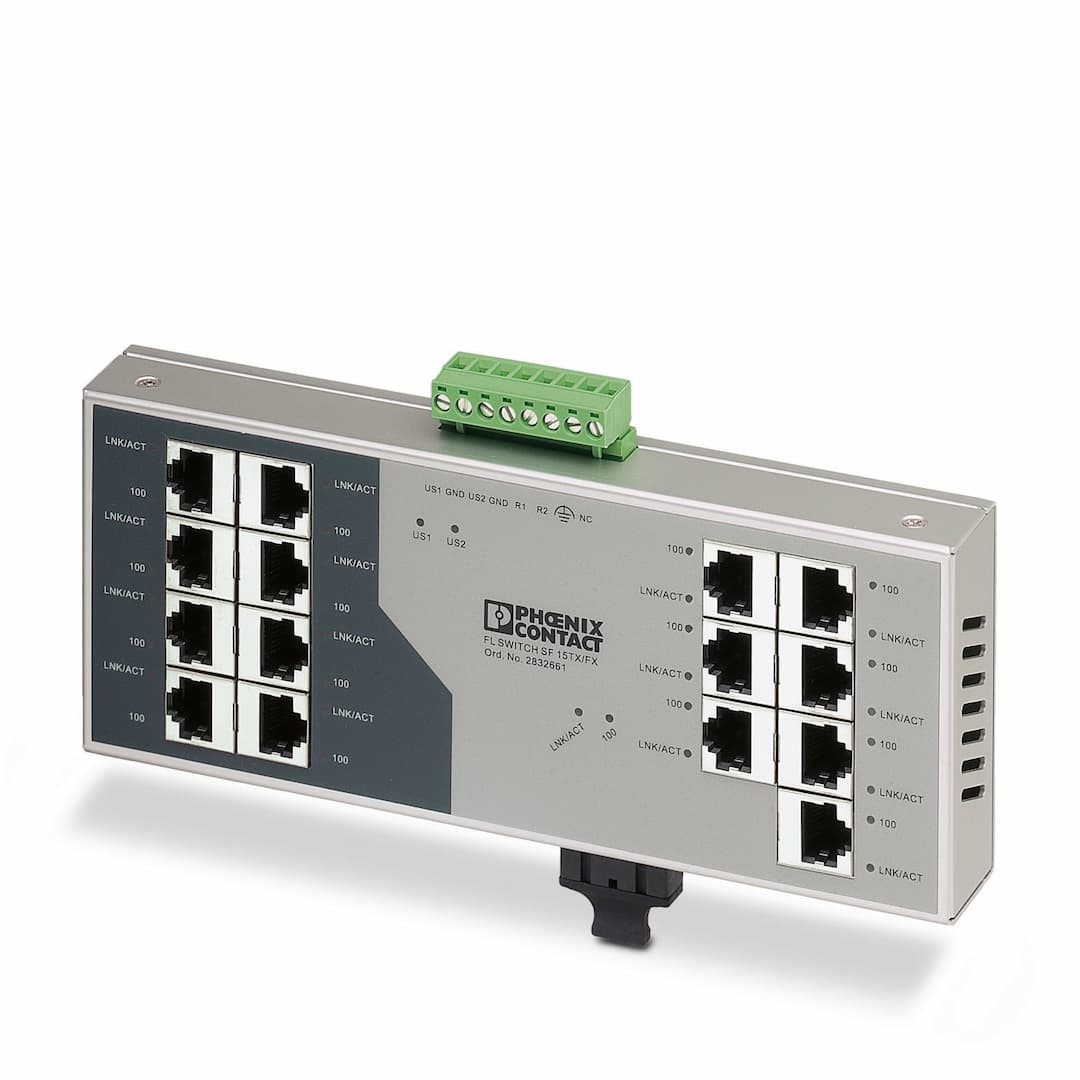

FL SWITCH SF 15TX/FX
Key Features
- 115 RJ45 Ports: Supports up to 15 Ethernet connections via RJ45 ports.
- 2Auto Negotiation & Autocrossing: Simplifies installation with automatic detection of data transmission speed and autocrossing function.
- 3100 Mbps Full Duplex: Ensures high-speed data transfer with 100 Mbps full duplex transmission speed.
- 4Local Diagnostic Indicators: Includes LEDs for data receive, link status, and activity per port for easy diagnostics.
- 5Security Options: Features cable locking and relay contact for alarm processing of voltage states for enhanced security.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 205 mm | Height | 115.3 mm |
| Depth | 30 mm | Housing material | Aluminum |
| Mounting type | DIN rail mounting | Connection method | RJ45 |
| Note on the connection method | Auto negotiation and autocrossing | Transmission speed | 10/100 Mbps |
| Transmission physics | Ethernet in RJ45 twisted pair | Transmission length | 100 m (per segment) |
| Signal LEDs | Data receive, link status | No. of channels | 15 (RJ45 ports) |
| Connection method | SC | Transmission speed | 100 Mbps (full duplex) |
| Transmission physics | multi-mode fiberglass | Transmission length | 6400 m (fiberglass with F-G 50/125 0.7 dB/km F1200) |
| Wavelength | 1300 nm | No. of channels | 1 (SC multi-mode) |
| Connection method | Plug-in/screw connection via COMBICON | Product type | Switch |
| Product family | Unmanaged Switch SF | Type | Block design |
| MTTF | 50.3 Years (MIL-HDBK-217F standard, temperature 25°C) | Article revision | 12 |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode |
| Status and diagnostic indicators | LEDs: U | Additional functions | Autonegotiation |
| Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode | Local diagnostics | US1/2 Supply voltage Green LED
LNK/ACT Link status/data transmission Green LED
100 Data transmission speed Yellow LED |
| Maximum power dissipation for nominal condition | 7.92 W | Test section | 500 V DC 1 min |
| Transmission medium | Copper
FO | Supply voltage (DC) | 24 V DC (redundant) |
| Supply voltage range | 18.5 V DC ... 30.2 V DC | Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² |
| Residual ripple | 3.6 V | Typical current consumption | 193 mA (at U |
| Connection method | Screw connection | Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
| Stripping length | 7 mm | Degree of protection | IP20 |
| Ambient temperature (operation) | 0 °C ... 55 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz | Air pressure (operation) | 86 kPa ... 108 kPa (up to 1500 m above sea level) |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) | Resistance to gases that may endanger the functions, in acc. with DIN 40046-36, DIN 40046-37 | Sulfur dioxide (SO |
| Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC | Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B
IEC 61000-6-2 IEC 61000-4-3 (immunity to radiated interference) Criterion A
IEC 61000-6-2 IEC 61000-4-4 (burst) Criterion A
IEC 61000-6-2 IEC 61000-4-5 (surge) Criterion A
IEC 61000-6-2 IEC 61000-4-6 (immunity to conducted interference) Criterion A
IEC 61000-6-2 IEC 61000-4-8 (immunity to magnetic fields) Criterion A
IEC 61000-6-2 EN 55022 (emitted interference) Criterion A |
| Noise immunity | EN 61000-6-2:2005 | Noise emission | EN 61000-6-4 |
| Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode | Status display | LEDs: U |
Specifications may be subject to change without notice
