Product Model

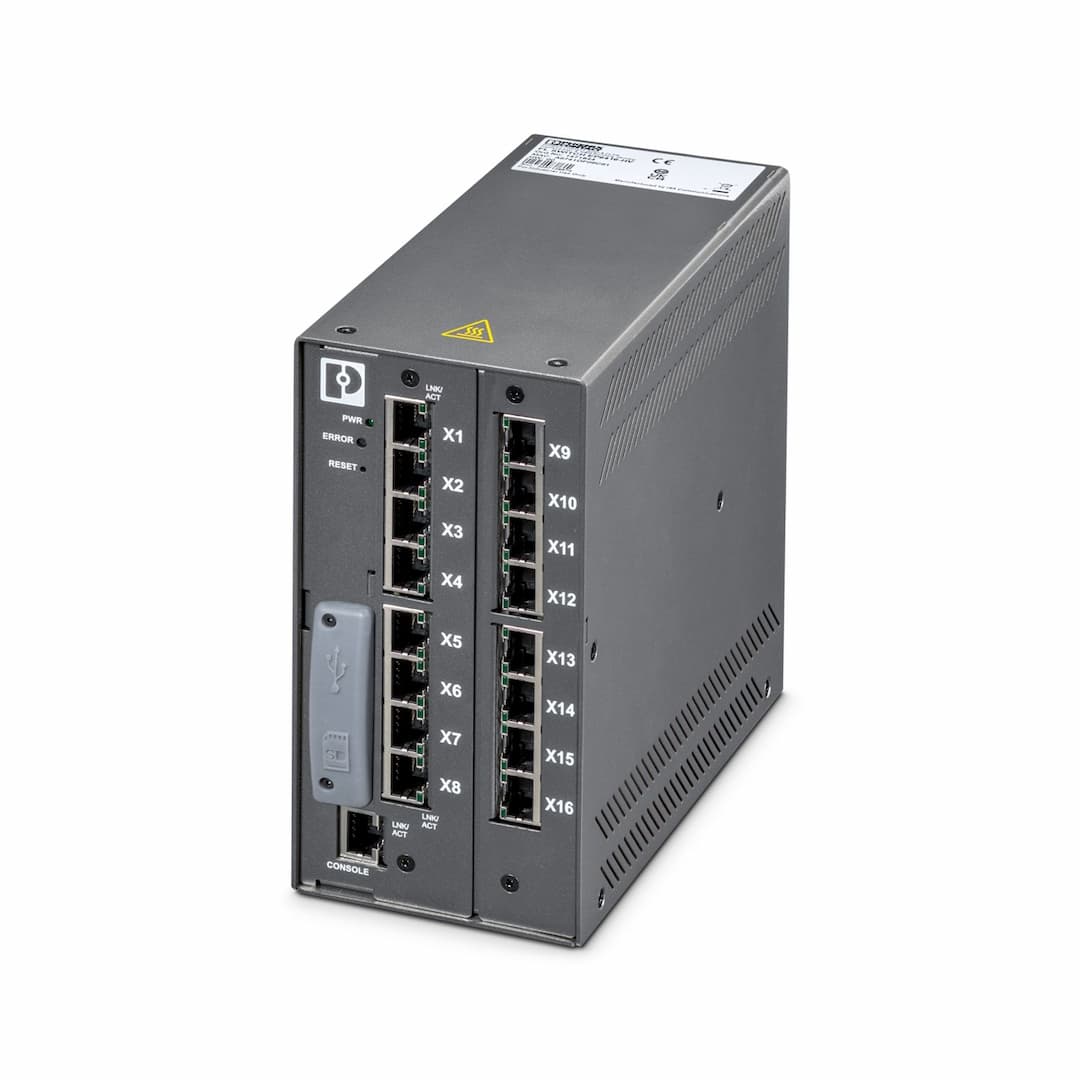

FL SWITCH EP6416-HV
Key Features
- 1Ensures long-lasting performance in demanding environments.
- 2Features standard DIN rail mounting for streamlined setup in control panels.
- 3Supports transmission speeds of 10/100/1000 Mbps for efficient data transfer.
- 4Includes 16 RJ45 ports with a transmission length of up to 100 m per segment.
- 5Secure and stable connectivity via screw connection method.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 82.7 mm | Height | 188.39 mm |
| Depth | 197.12 mm | Note on application | Only for industrial use |
| Color | gray | Housing material | Metal |
| Mounting type | DIN rail | Mounting type | DIN rail mounting |
| Connection method | RJ45 | Note on the connection method | Auto negotiation and autocrossing |
| Transmission speed | 10/100/1000 Mbps | Transmission physics | Copper |
| Transmission length | 100 m (per segment) | No. of channels | 16 (RJ45 ports) |
| Output name | Alarm relay output: 24 V DC, 1 A maximum | Product type | Switch |
| Product family | Managed Switch EP6000 | Article revision | 00 |
| Overvoltage category | II | Degree of pollution | 2 |
| Signal contact control voltage | 24 V DC | Signal contact control current | 1 A |
| MAC address table | 16k | Status and diagnostic indicators | LEDs: POWER, ERROR, Link status |
| Local diagnostics | Power Supply voltage Green LED
Error Alarm signal LED red
X1...X16 Link status Green LED | Maximum power dissipation for nominal condition | max. 50 W |
| Transmission medium | Copper | Supply voltage (AC/DC) | 240 V AC/DC |
| Supply voltage range | 100 V AC/DC ... 240 V AC/DC | Signal contact control voltage | 24 V DC |
| Signal contact control current | 1 A | Connection name | Power supply |
| Connection method | Screw connection | Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 85 °C (Type tested to 85 °C for 16 hours) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Standard designation | Ambient conditions | Standards/specifications | IEC 61850-3
IEEE 1613 |
| Conformance | CE-compliant | Noise immunity | IEC 61850-3, IEEE 1613, EN 61000-6-2: 2005 |
| Status display | LEDs: POWER, ERROR, Link status |
Specifications may be subject to change without notice
