Product Model

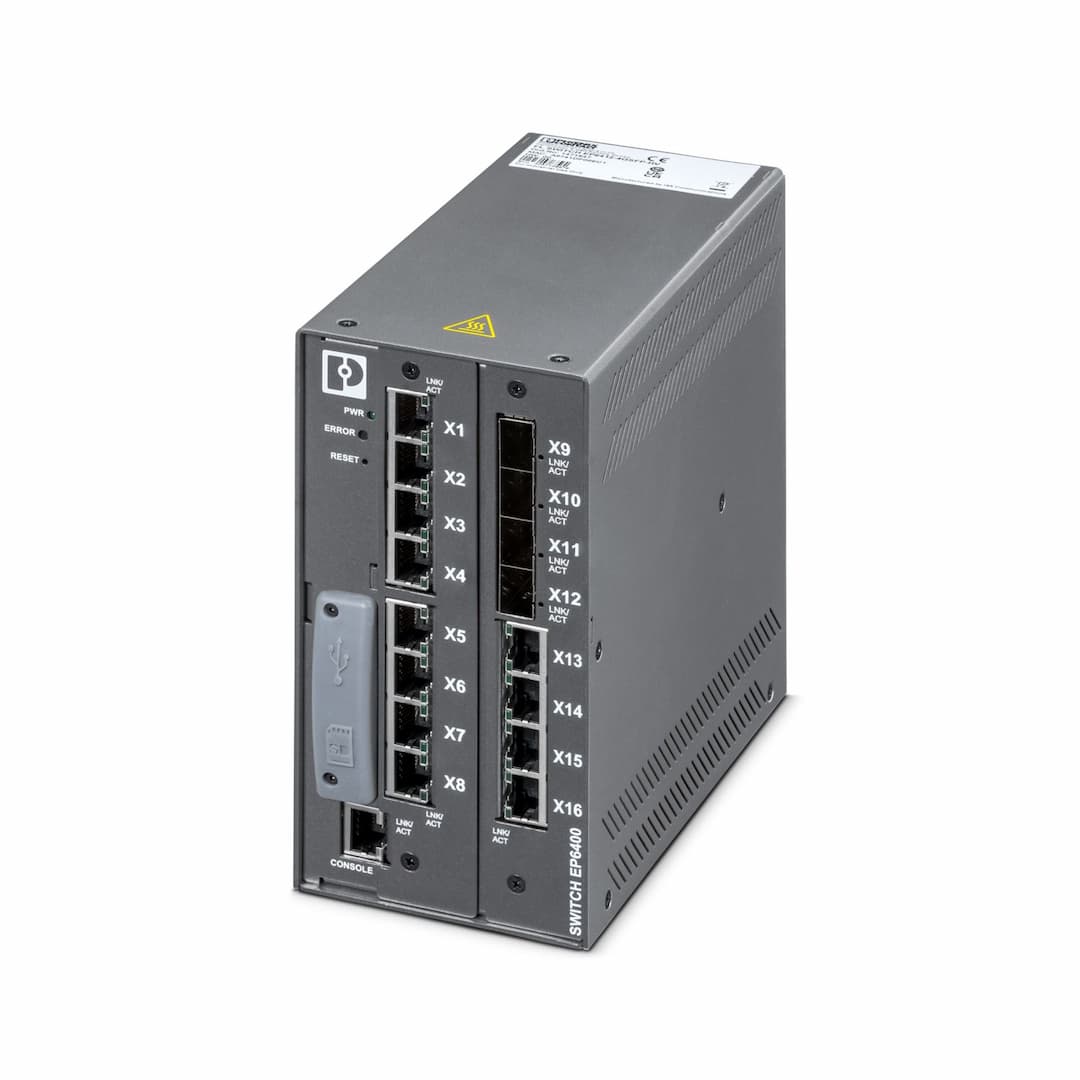

FL SWITCH EP6412-4GSFP-MV
Key Features
- 1Ensures long-lasting performance in demanding environments.
- 2Supports standard DIN rail mounting for streamlined setup in control panels.
- 3Reliable screw connection provides secure and stable connectivity.
- 4Transmits at 100/1000 Mbps (full duplex) for efficient data communication.
- 5Supports up to 100 m (per segment) transmission length, ideal for various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 82.7 mm | Height | 188.39 mm |
| Depth | 197.12 mm | Note on application | Only for industrial use |
| Housing material | Metal | Mounting type | DIN rail |
| Mounting type | DIN rail mounting | Connection method | RJ45 |
| Note on the connection method | Auto negotiation and autocrossing | Transmission speed | 10/100/1000 Mbps |
| Transmission physics | Copper | Transmission length | 100 m (per segment) |
| Connection method | SFP | Transmission speed | 100/1000 Mbps (full duplex) |
| Transmission physics | Depending on the SFP module | Output name | Alarm relay output: 24 V DC, 1 A maximum |
| Product type | Switch | Product family | Managed Switch EP6000 |
| Overvoltage category | II | Degree of pollution | 2 |
| Signal contact control voltage | 24 V DC | Signal contact control current | 1 A |
| MAC address table | 16k | Status and diagnostic indicators | LEDs: POWER, ERROR, Link status |
| Local diagnostics | Power Supply voltage Green LED
Error Alarm signal LED red | Maximum power dissipation for nominal condition | max. 50 W |
| Transmission medium | Copper
depending on the SFP module used | Supply voltage (DC) | 48 V DC (Redundant DC power supplies are load sharing) |
| Supply voltage range | 36 V DC ... 72 V DC | Signal contact control voltage | 24 V DC |
| Signal contact control current | 1 A | Connection method | Screw connection |
| Degree of protection | IP20 | Ambient temperature (operation) | -40 °C ... 85 °C (Type tested to 85 °C for 16 hours) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) | Standard designation | Ambient conditions |
| Standards/specifications | IEC 61850-3
IEEE 1613 | Conformance | CE-compliant |
| Noise immunity | IEC 61850-3, IEEE 1613, EN 61000-6-2: 2005 | Status display | LEDs: POWER, ERROR, Link status |
Specifications may be subject to change without notice
