Product Model

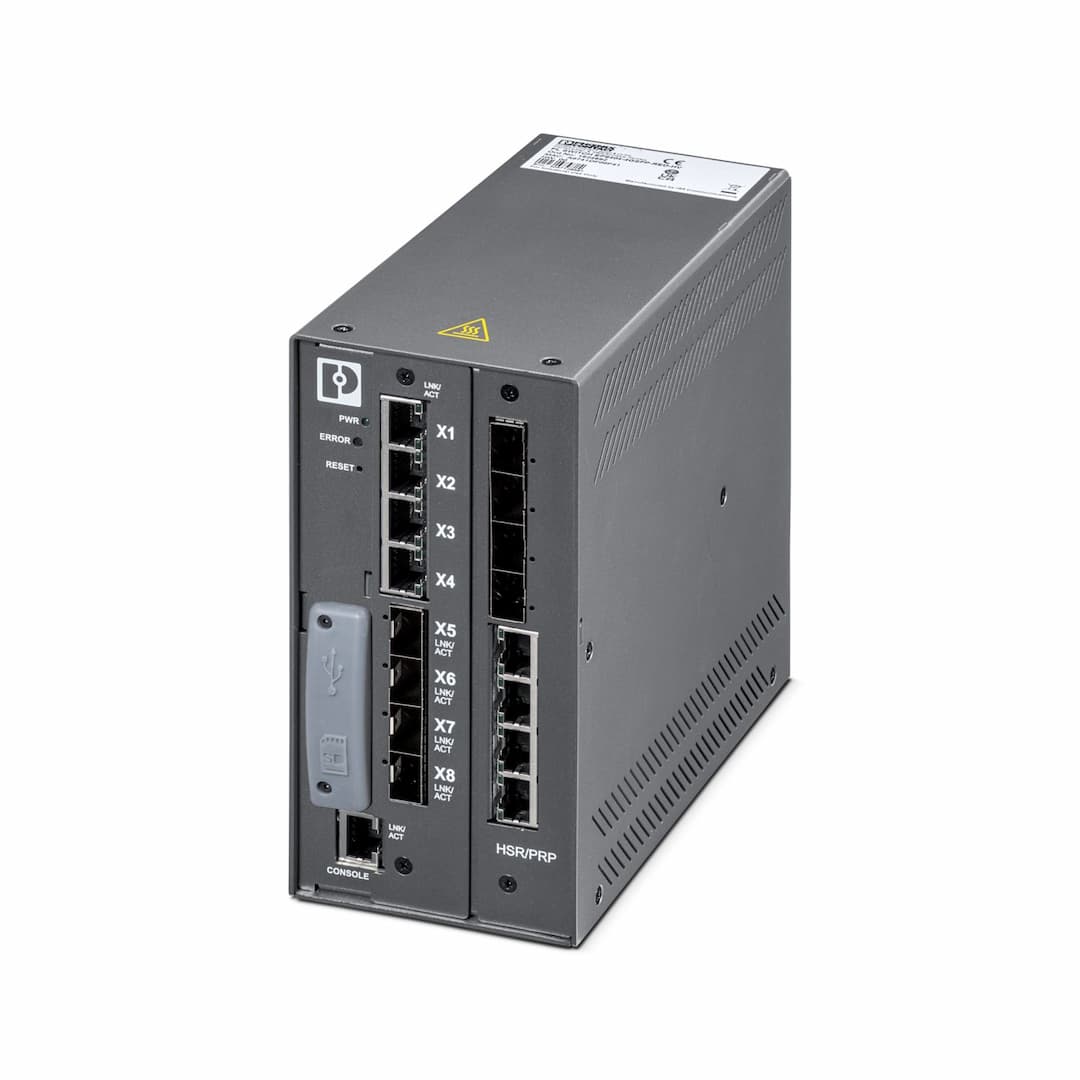

FL SWITCH EP6404-4GSFP-RED-HV
Key Features
- 1High-Speed Connectivity: Supports transmission speeds of 100/1000 Mbps (full duplex) for fast data communication.
- 2Durable Design: Metal housing ensures long-lasting performance in harsh industrial environments.
- 3Easy Installation: DIN rail mounting and screw connection for streamlined setup in control panels.
- 4Versatile Connectivity: Includes four RJ45 ports and four SFP ports for flexible networking options.
- 5Reliable Operation: Operates within a wide temperature range of -40°C to 85°C and supports up to 95% non-condensing humidity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 82.7 mm | Height | 188.39 mm |
| Depth | 197.12 mm | Note on application | Only for industrial use |
| Housing material | Metal | Mounting type | DIN rail |
| Mounting type | DIN rail mounting | Connection method | RJ45 |
| Note on the connection method | Auto negotiation and autocrossing | Transmission speed | 10/100/1000 Mbps |
| Transmission physics | Copper | Transmission length | 100 m (per segment) |
| Connection method | SFP | Transmission speed | 100/1000 Mbps (full duplex) |
| Transmission physics | Depending on the SFP module | Output name | Alarm relay output: 24 V DC, 1 A maximum |
| Product type | Switch | Product family | Managed Switch EP6000 |
| Article revision | 00 | Overvoltage category | II |
| Degree of pollution | 2 | Signal contact control voltage | 24 V DC |
| Signal contact control current | 1 A | MAC address table | 16k |
| Status and diagnostic indicators | LEDs: POWER, ERROR, Link status | Local diagnostics | Power Supply voltage Green LED
Error Alarm signal LED red |
| Maximum power dissipation for nominal condition | max. 50 W | Transmission medium | Copper
depending on the SFP module used |
| Supply voltage (AC/DC) | 240 V AC/DC | Supply voltage range | 100 V AC/DC ... 240 V AC/DC |
| Signal contact control voltage | 24 V DC | Signal contact control current | 1 A |
| Connection method | Screw connection | Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 85 °C (Type tested to 85 °C for 16 hours) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Standard designation | Ambient conditions | Standards/specifications | IEC 61850-3
IEEE 1613 |
| Conformance | CE-compliant | Noise immunity | IEC 61850-3, IEEE 1613, EN 61000-6-2: 2005 |
| Status display | LEDs: POWER, ERROR, Link status |
Specifications may be subject to change without notice
