Product Model

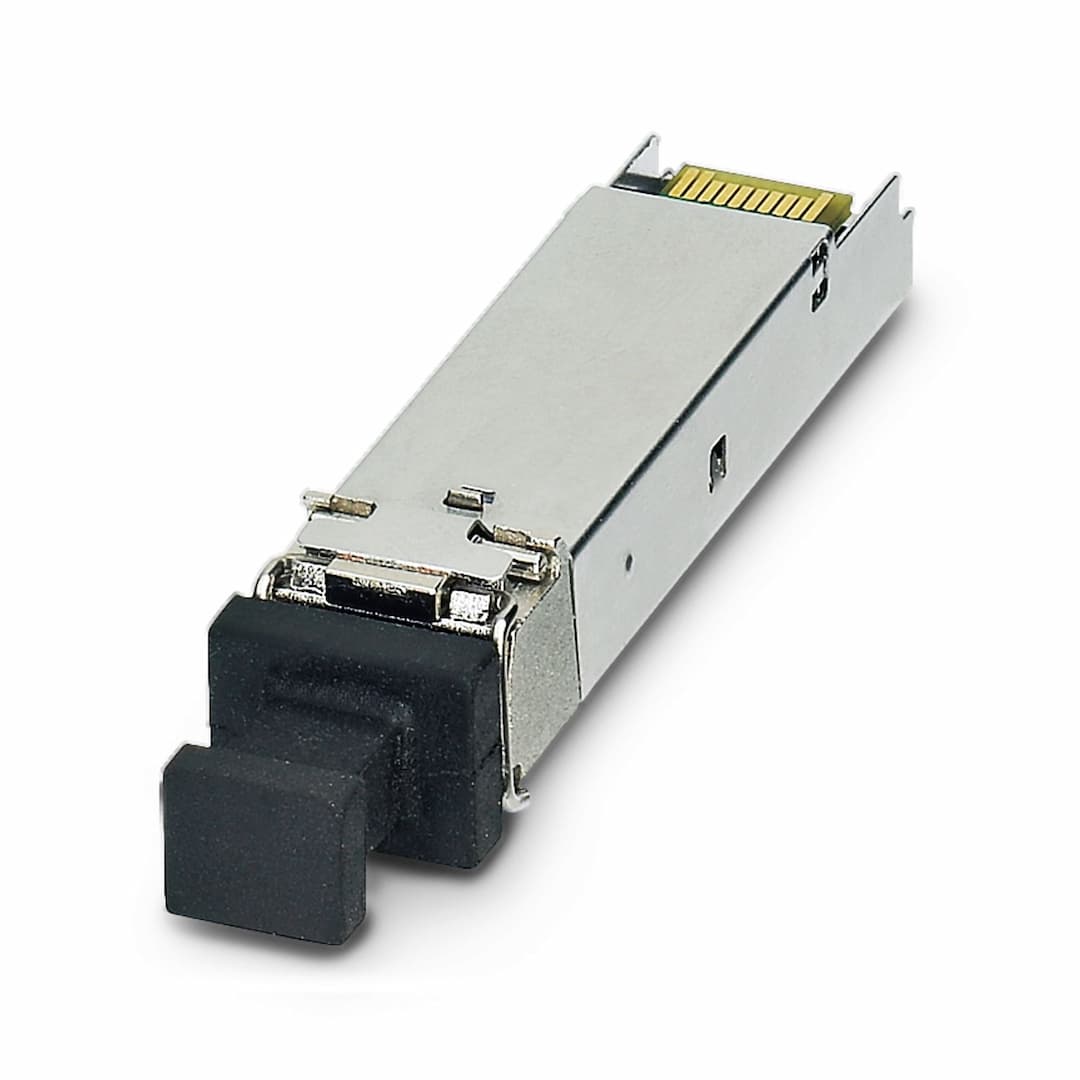

FL SFP LX
Key Features
- 1High-speed transmission: Supports data transmission at 1000 Mbps.
- 2Long-distance coverage: Transmits data up to 30 km with a wavelength of 1310 nm.
- 3MSA compliant: Meets MSA standards for compatibility and reliability.
- 4Versatile mounting: Easily inserts into SFP slots for seamless integration.
- 5Durable design: Constructed with metal housing and designed for harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 13.7 mm | Height | 8.95 mm |
| Length | 56.5 mm | Note on application | Only for industrial use |
| Housing material | Metal | Mounting type | Insert in SFP slot |
| Connection method | LC | Transmission speed | 1 Gbps |
| Transmit capacity, minimum | -5 dBm | Transmit capacity, maximum | 0 dBm |
| Minimum receiver sensitivity | -24 dBm | Maximum receiver sensitivity | -3 dBm |
| Transmission physics | Single-mode fiberglass | Transmission length | 30 km (Fiberglass 9/125)
250 m (Fiberglass 62.5/125) |
| Wavelength | 1310 nm | Signal LEDs | depending on the Factoryline device |
| No. of channels | 1 (LC single mode) | Transmit capacity, minimum | -5 dBm |
| Transmit capacity, maximum | 0 dBm | Minimum receiver sensitivity | -3 dBm |
| Maximum receiver sensitivity | -24 dBm | Product type | SFP module |
| Type | Factoryline devices with SFP slot | MTTF | 748 Years (Telcordia SR-332, temperature factor at 40°C = 1, stress factor at 50% = 1, environmental factor = 1) |
| Format | SFP (Small Form-factor Pluggable) | Article revision | 04 |
| Status display | via a Factoryline device | Current consumption | 300 mA |
| Maximum power dissipation for nominal condition | 1 W | Transmission medium | FO |
| Supply voltage | 3.3 V (via Factoryline switch) | Power supply connection | via SFP slot |
| Max. current consumption | 300 mA | Current consumption | 300 mA |
| Connection method | To insert in SFP slot | Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 85 °C (non-condensing) | Ambient temperature (storage/transport) | -40 °C ... 85 °C (non-condensing) |
| Permissible humidity (operation) | 30 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 30 % ... 95 % (non-condensing) |
| Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz | Air pressure (operation) | 86 kPa ... 108 kPa (1500 m above sea level) |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (3500 m above sea level) | Standard designation | Laser equipment safety |
| Standards/specifications | IEC 60825 |
Specifications may be subject to change without notice
