Product Model

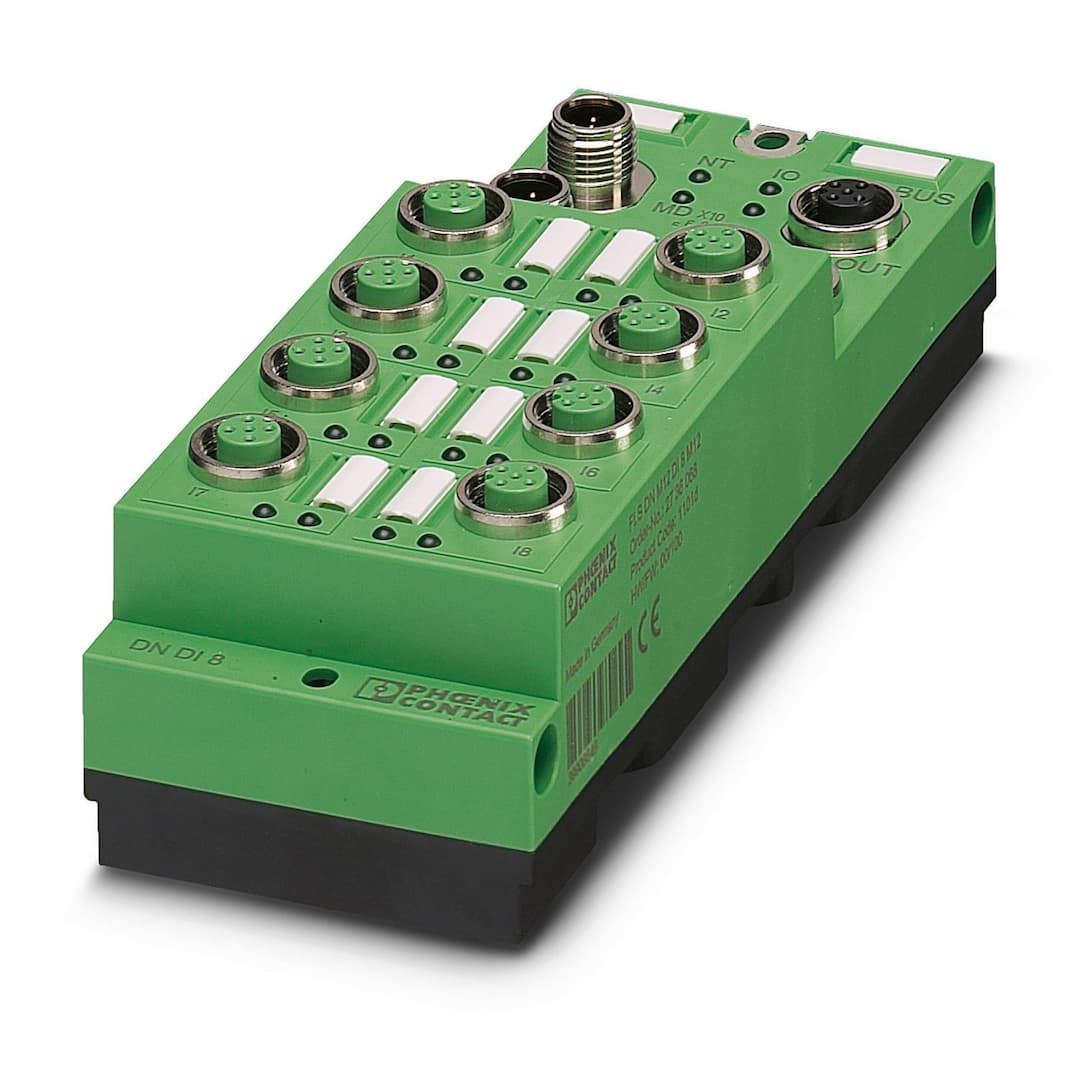

FLS DN M12 DI 8 M12
Key Features
- 18 Digital Inputs: Supports up to 8 digital inputs for various DeviceNet applications.
- 2Fast M12 Connections: Utilizes fast connection technology for efficient data transfer.
- 324 V DC Supply Protection: Protected against short circuit and overload for reliable operation.
- 4Robust Design: Withstood in ambient temperatures from -25 °C to 60 °C and humidity up to 95%.
- 5Compliant with Standards: Meets WEEE/RoHS compliance since June 15, 2009.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 60 mm | Height | 161 mm |
| Depth | 44.5 mm | Drill hole spacing | 151 mm |
| EMC note | EMC: class A product, see manufacturer's declaration in the download area | Connection method | 2 M12 connectors, A-coded |
| Number of positions | 5 | Transmission speed | 125 kbps, 250 kbps, 500 kbps (Automatic baud rate detection) |
| Transmission physics | Copper cable in acc. with DeviceNet™ specification | Address area assignment | 0 ... 63, can be set |
| Number of local bus devices that can be connected | 0 | Number of devices with parameter channel | 0 |
| Input address area | 8 bit | Output address area | 0 bit |
| Register length | 8 bit | Input name | Digital inputs |
| Description of the input | IEC 61131-2 type 1 | Number of inputs | 8 |
| Connection method | M12 connector | Connection technology | 2-, 3-, 4-conductor |
| Input voltage | 24 V DC | Input voltage range "0" signal | -30 V DC ... 5 V DC |
| Input voltage range "1" signal | 13 V DC ... 30 V DC | Nominal input voltage U | 24 V DC |
| Filter time | 3 ms | Protective circuit | Reverse polarity protection |
| Product type | I/O component | Product family | Fieldline |
| Type | Block design | No. of channels | 8 |
| Voltage supply U | 24 V DC | Power supply at U | max. 4 A |
| Current consumption from U | typ. 65 mA
max. 100 mA | Voltage supply U | 24 V DC |
| Power supply at U | max. 4 A | Current consumption from U | typ. 5 mA (plus sensor current)
max. 700 mA |
| Connection method | M12 connector (A-coded) | Designation | U |
| Supply voltage | 24 V DC | Supply voltage range | 11 V DC ... 30 V DC (including ripple) |
| Test voltage: 24 V supply (bus logics) / Digital inputs (sensor supply) | 500 V AC, 50 Hz, 1 min | Test voltage: FE / Digital inputs (sensor supply) | 500 V AC, 50 Hz, 1 min |
| Connection method | M12 connector | Ambient temperature (operation) | -25 °C ... 60 °C |
| Degree of protection | IP65/IP67 | Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (storage/transport) | 95 % | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Mounting type | Wall mounting |
Specifications may be subject to change without notice
