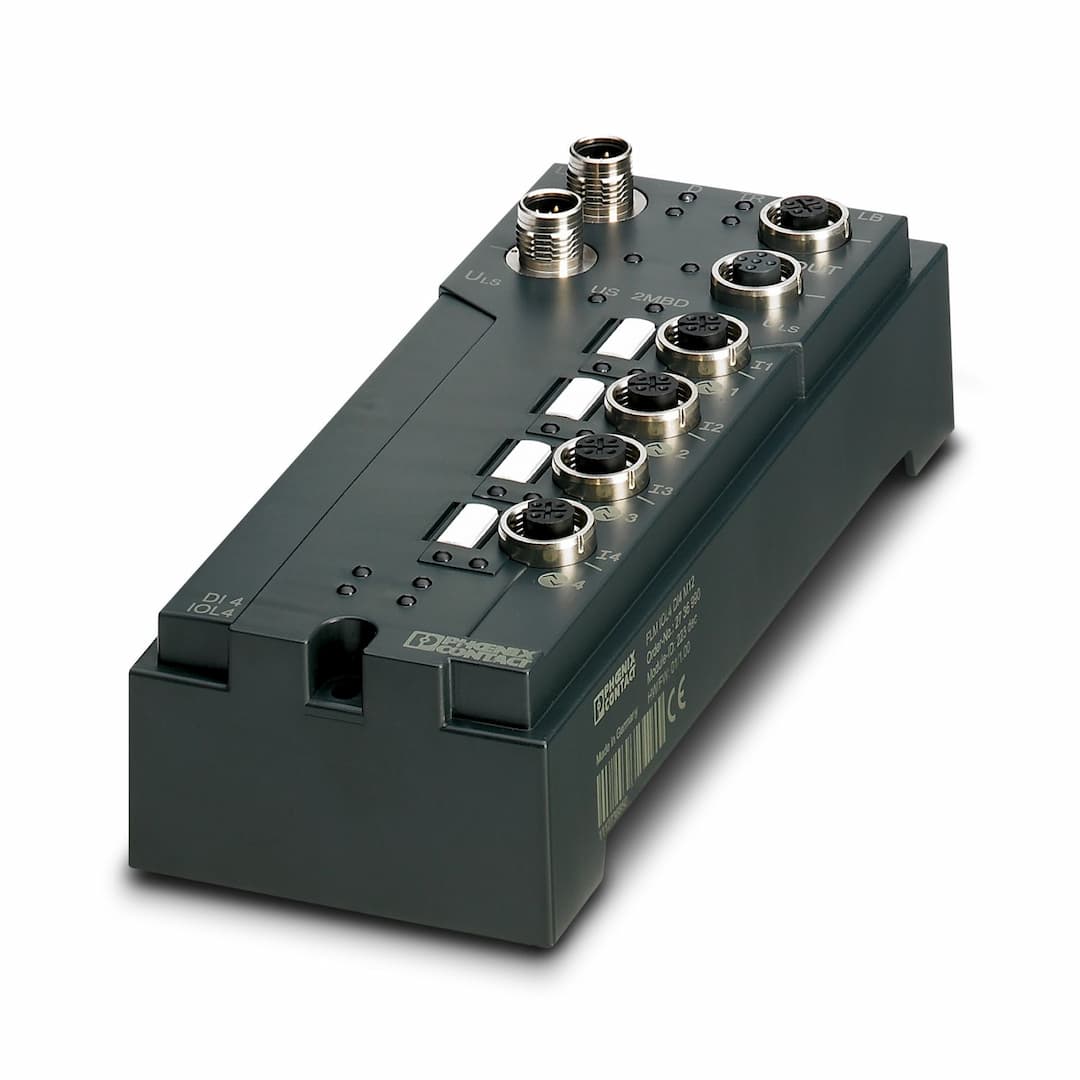

Product Model
FLM IOL 4 DI 4 M12
Key Features
- 14 IO-Link ports with 200 mA each for parallel processing of service and process data.
- 2Consistent M12 connector connections ensure reliable and fast data transfer.
- 3Short-circuit and overload protection safeguard against electrical faults.
- 4Diagnostic and status indicators for easy monitoring and troubleshooting.
- 5Flexible power supply concept with a nominal current of 800 mA.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 70 mm | Height | 178 mm |
| Depth | 50 mm | Drill hole spacing | 168 mm |
| Color | anthracite | Connection method | M12 connector, B-coded |
| Designation connection point | Copper cable | Number of positions | 5 |
| Transmission speed | 500 kbps / 2 Mbps | ID code (dec.) | 223 |
| ID code (hex) | DF | Length code (hex) | 06 |
| Length code (dec) | 06 | Process data channel | 80 bit |
| Input address area | 80 bit | Output address area | 80 bit |
| Register length | 96 bit | Required parameter data | 33 Byte |
| Required configuration data | 5 Byte | Input name | Digital inputs |
| Number of inputs | 4 | Connection method | M12 connector |
| Connection technology | 2-, 3-conductor | Nominal input voltage U | 24 V DC |
| Number of inputs | max. 4 | Nominal input current | 8 mA (at 24 V DC) |
| Signal delay | < 3 ms (t
3 ms (t | Permissible cable length | < 20 m |
| Description of the input | IEC 61131-2 type 1 | Connection method | M12 plug connection |
| Input filter time | typ. 3 ms | Protective circuit | Reverse polarity protection |
| Number of ports | 4 | Connection method | M12 connector |
| Connection technology | 3-conductor | Number of outputs | max. 4 |
| Nominal current per channel | 500 mA (I | Maximum total current consumption | 2 A (observe derating) |
| Limitation of the voltage induced on circuit interruption | approx. -1 V | Protective circuit | Freewheeling diode; Integrated per channel |
| Product type | I/O component | Product family | Fieldline |
| Type | modular | No. of channels | 4 |
| Voltage supply U | 24 V DC | Power supply at U | max. 4 A |
| Current consumption from U | max. 150 mA (At 500 kBaud)
typ. 75 mA (At 500 kBaud) | Voltage supply U | 24 V DC |
| Power supply at U | max. 4 A | Current consumption from U | typ. 25 mA (plus power supply for sensors)
max. 2 A |
| Nominal current for every IO-Link port | max. 200 mA | Nominal current per device | 800 mA |
| Permissible cable length | < 20 m | Protective circuit | Overload protection; Electronics in the device
Short-circuit protection; Electronics in the device |
| Connection method | M12 connector | Designation | U |
| Supply voltage | 24 V DC | Supply voltage range | 18 V DC ... 30 V DC (including ripple) |
| Connection method | M12 connector | Ambient temperature (operation) | -25 °C ... 60 °C |
| Degree of protection | IP65/IP67 | Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (storage/transport) | 95 % |
| Mounting type | Wall mounting |
Specifications may be subject to change without notice
