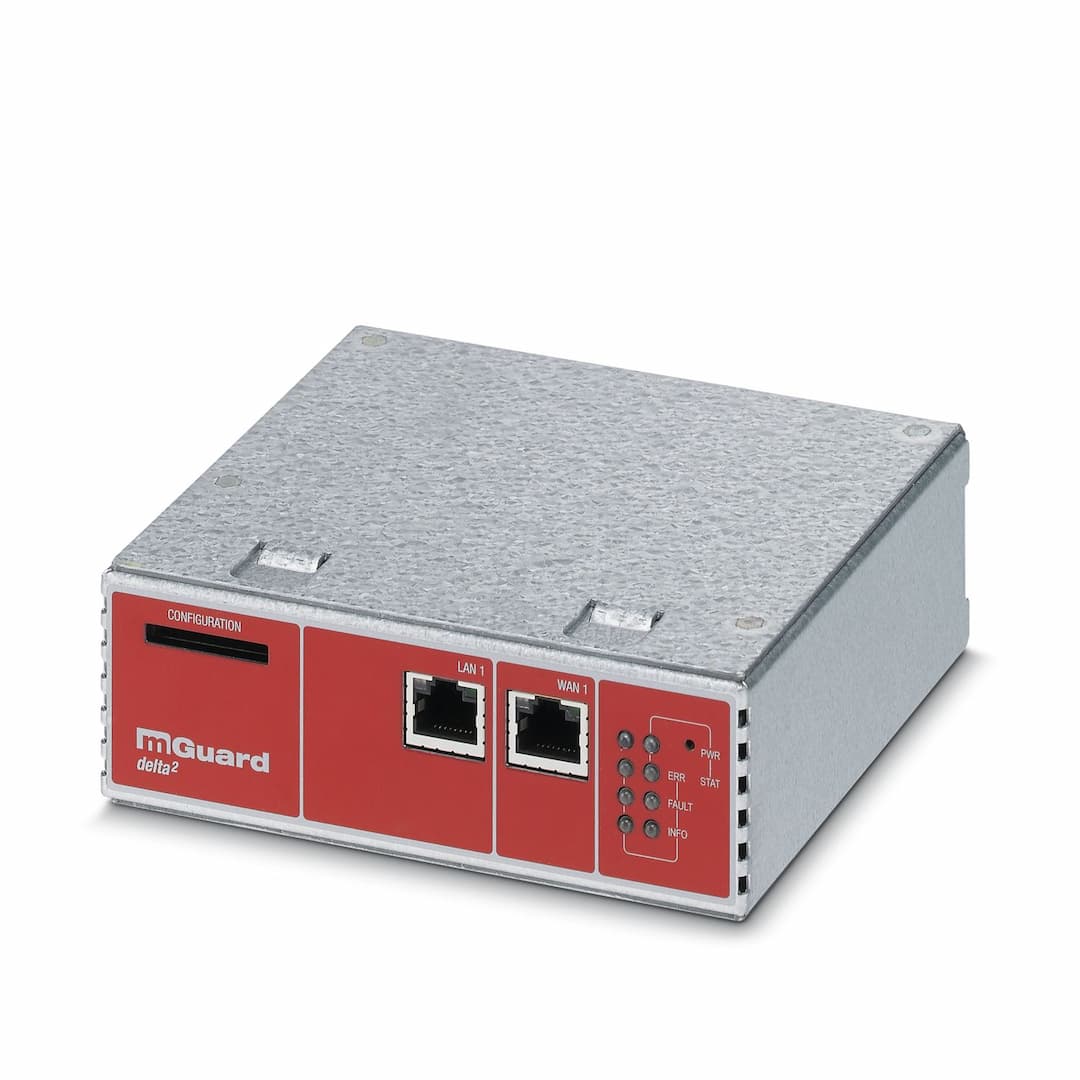

Product Model
FL MGUARD DELTA TX/TX VPN
Key Features
- 1Advanced Firewall Protection: Configurable stateful inspection firewall with full scope of functions.
- 2Secure VPN Capabilities: Supports up to 10 VPN tunnels (up to 250 with optional license), IPsec standard.
- 3Central Management Tool: Simplify device management with a central tool for maximum security.
- 4High-Speed Connectivity: 10/100 Mbps Ethernet ports with RJ45 connections.
- 5Robust Metal Housing: Durable metal housing for desktop or distributor room use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 130 mm | Height | 50 mm |
| Depth | 114 mm | Note on application | Only for industrial use |
| Color | silver | Housing material | Metal |
| Connection method | RJ45 | Transmission speed | 10/100 Mbps |
| Transmission physics | Ethernet in RJ45 twisted pair | Transmission length | 100 m (per segment) |
| Signal LEDs | Supply voltage, data transmission, error, link, activity | No. of channels | 2 (RJ45 ports) |
| Basic functions | Router with intelligent firewall and VPN for 10 tunnels (up to 250 supported with optional additional license), CIFS Integrity Monitoring (as an option), metal housing, slot for SD memory card | Supported browsers | HTTPS support required |
| Product type | Security routers without DIN rail mounting | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Local diagnostics | Green LED
One LED per port Link active Green LED | Maximum power dissipation for nominal condition | 2.99 W |
| Supply voltage (AC) | 230 V AC | Supply voltage range | 90 V AC ... 264 V AC ((50/60 Hz)) |
| Max. current consumption | 40 mA | Typical current consumption | 13 mA |
| Degree of protection | IP20 | Ambient temperature (operation) | 5 °C ... 40 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Noise immunity | EN 61000-6-2:2005 |
| Noise emission | EN 55022 / Class B | Status display | LEDs:P1, P2, Fault, State, Error, LAN, WAN |
Specifications may be subject to change without notice
