Product Model

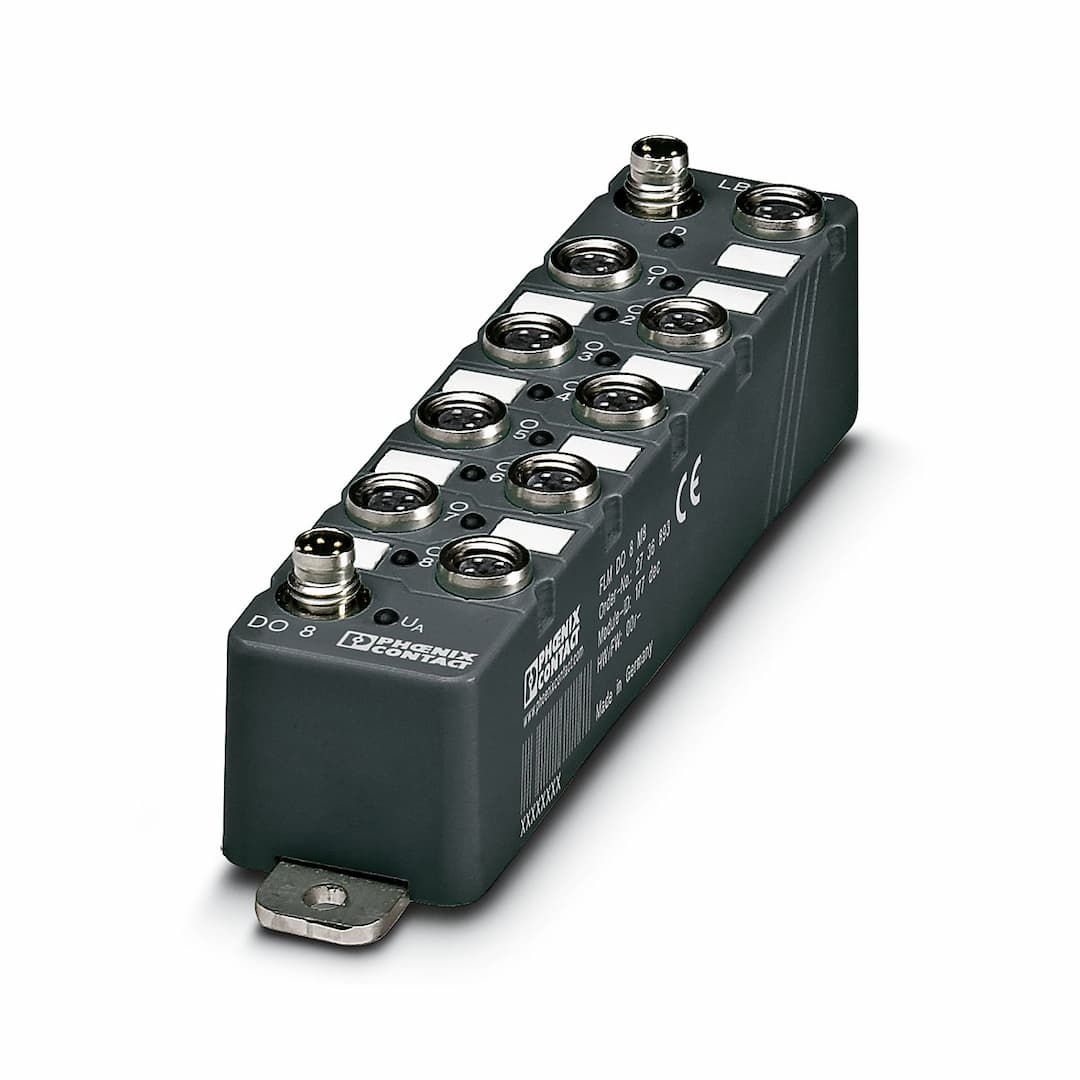

FLM DO 8 M8-2MBD
Key Features
- 1Compact dimensions (29.8 mm x 143 mm x 26.5 mm) for easy integration.
- 28 digital outputs with a load capacity of 500 mA each.
- 3Channel-specific diagnostics for reliable operation.
- 4Short-circuit and overload protection for safe use.
- 5Consistent connection via M8 connectors for easy integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 29.8 mm | Height | 143 mm |
| Depth | 26.5 mm | Drill hole spacing | 133 mm |
| Note on dimensions | Length details incl. fixing clips | EMC note | EMC: class A product, see manufacturer's declaration in the download area |
| Color | black | Connection method | M8 connector |
| Designation connection point | Copper cable | Number of positions | 4 |
| Transmission speed | 2 Mbps | ID code (dec.) | 177 |
| ID code (hex) | B1 | Length code (hex) | 81 |
| Length code (dec) | 129 | Process data channel | 8 bit |
| Input address area | 0 bit | Output address area | 8 bit |
| Register length | 8 bit | Required parameter data | 3 Byte |
| Required configuration data | 4 Byte | Output name | Digital outputs |
| Connection method | M8 connector | Connection technology | 2-, 3-conductor |
| Number of outputs | 8 | Protective circuit | Short-circuit protection |
| Output voltage | 24 V DC | Maximum output current per channel | 500 mA |
| Product type | I/O component | Product family | Fieldline |
| Type | modular | No. of channels | 8 |
| Voltage supply U | 24 V DC | Connection method | M8 connector |
| Designation | U | Number of positions | 4 |
| Supply voltage | 24 V DC | Supply voltage range | 18 V DC ... 30 V DC (including ripple) |
| Supply current | 3 A | Test voltage: To I/O | 500 V AC |
| Connection method | M8 connector | Ambient temperature (operation) | -25 °C ... 60 °C |
| Degree of protection | IP65/IP67 | Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % | Permissible humidity (storage/transport) | 10 % ... 95 % |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | Wall mounting |
