Product Model

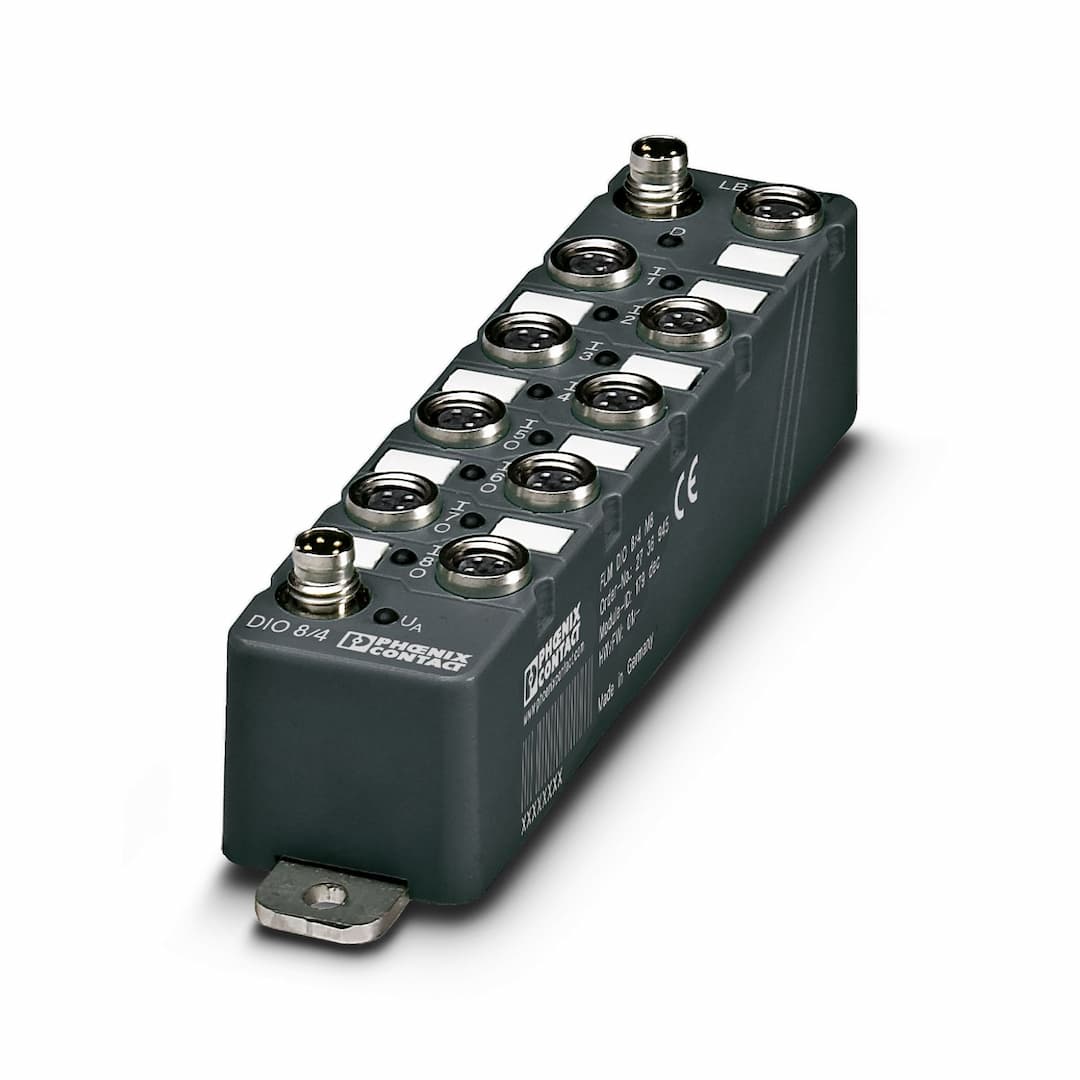

FLM DIO 8/4 M8-2MBD
Key Features
- 1Optimized for 30 mm mounting profile, perfect for tight spaces.
- 2Supports 2 Mbaud transmission speed for efficient data transfer.
- 3Features short-circuit and overload protection for reliable operation.
- 4Consistent connection via M8 connectors, easy to integrate with Fieldline Modular M8 local bus.
- 5Includes channel-specific diagnostics and status indicators for easy monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 29.8 mm | Height | 143 mm |
| Depth | 26.5 mm | Drill hole spacing | 133 mm |
| Note on dimensions | Length details incl. fixing clips | EMC note | EMC: class A product, see manufacturer's declaration in the download area |
| Color | black | Connection method | M8 connector |
| Designation connection point | Copper cable | Number of positions | 4 |
| Transmission speed | 2 Mbps | ID code (dec.) | 179 |
| ID code (hex) | B3 | Length code (hex) | 81 |
| Length code (dec) | 129 | Process data channel | 8 bit |
| Input address area | 8 bit | Output address area | 8 bit |
| Register length | 8 bit | Required parameter data | 3 Byte |
| Required configuration data | 5 Byte | Input name | Digital inputs |
| Description of the input | IEC 61131-2 type 1 | Number of inputs | 8 (4 fixed, 4 freely selectable) |
| Connection method | M8 connector | Connection technology | 2-, 3-conductor |
| Input voltage | 24 V DC | Input voltage range "0" signal | -30 V DC ... 5 V DC |
| Input voltage range "1" signal | 13 V DC ... 30 V DC | Nominal input voltage U | 24 V DC |
| Filter time | 3 ms | Protective circuit | Reverse polarity protection |
| Output name | Digital outputs | Connection method | M8 connector |
| Connection technology | 2-, 3-conductor | Number of outputs | 4 (Can also be used as an input) |
| Protective circuit | Short-circuit protection | Output voltage | 24 V DC |
| Maximum output current per channel | 500 mA | Product type | I/O component |
| Product family | Fieldline | Type | modular |
| No. of channels | 8 | Voltage supply U | 24 V DC |
| Connection method | M8 connector | Designation | U |
| Number of positions | 4 | Supply voltage | 24 V DC |
| Supply voltage range | 18 V DC ... 30 V DC (including ripple) | Supply current | 3 A |
| Test voltage: To I/O | 500 V AC | Connection method | M8 connector |
| Ambient temperature (operation) | -25 °C ... 60 °C | Degree of protection | IP65/IP67 |
| Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) | Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C | Permissible humidity (operation) | 5 % ... 95 % |
| Permissible humidity (storage/transport) | 10 % ... 95 % | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Mounting type | Wall mounting |
Specifications may be subject to change without notice
