Product Model

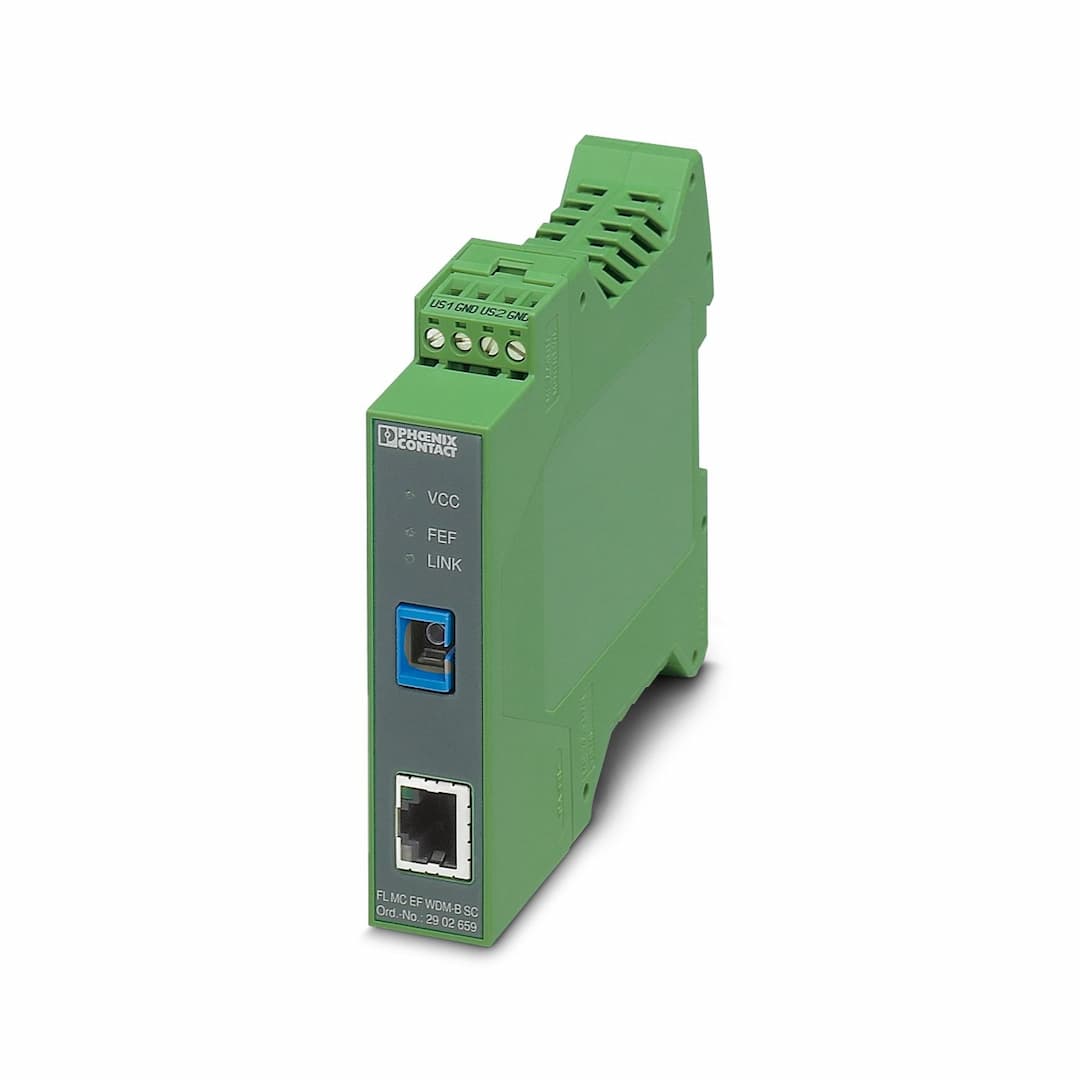

FL MC EF WDM-B SC
Key Features
- 1Full duplex communication with one fiber for efficient data transfer.
- 2Transmission ranges up to 38 km for extended network coverage.
- 3Auto negotiation and MDI/MDI-X switch-over for seamless connection management.
- 4Link fault pass through (LFPT) and far end fault (FEF) functions for easy connection monitoring.
- 510/100 Mbps data rate for high-speed Ethernet connectivity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| CCCex note | Use in potentially explosive areas is not permitted in China. | Product type | Media converter |
| MTTF | 1400 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
599 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
101 Years (SN 29500 standard, temperature 40°C, operating cycle 100%) | MTBF | 492 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
133 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day)) |
| Signal delay | ± 1.3 µs (Store and Forward mode, 10/100 Mbps, depending on the frame size) | Article revision | 11 |
| Basic functions | Store-and-forward media converter | Electrical isolation | according to IEEE 802.3
VCC // FE // Ethernet |
| Maximum power dissipation for nominal condition | 2.64 W | Test voltage data interface/power supply | 0.5 kV |
| Supply voltage range | 18 V DC ... 30 V DC (Screw connection)
18 V DC ... 30 V DC (as an alternative or redundant, via backplane bus contact and system current supply) | Nominal supply voltage | 24 V DC |
| Typical current consumption | 110 mA (24 V DC) | Protective circuit | Reverse polarity protection |
| Connection method | Plug-in screw terminal block (COMBICON), redundancy possible | Single conductor/terminal point, rigid | 0.2 mm² ... 2.5 mm² |
| Single-wire/terminal point, flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section, flexible [AWG] | 24 ... 14 |
| Stripping length | 7.00 mm | Tightening torque | 0.56 Nm ... 0.79 Nm |
| Signal | Ethernet | Basic functions | Store-and-forward media converter |
| Transmit capacity, minimum | ≥ -14 dBm ((9/125 µm) dynamic in link mode (average)) | Transmit capacity, maximum | ≤ -8 dBm ((9/125 µm) dynamic in link mode (average)) |
| Transmission length incl. 3 dB system reserve | 38 km (F-E 9/125 0.36 dB/km)
34 km (F-E 9/125 0.4 dB/km)
28 km (F-E 9/125 0.5 dB/km)
21 km (F-G 62.5/125 0.7 dB/km F 1000)
5.5 km (F-G 62.5/125 2.6 dB/km F 600)
21 km (F-G 50/125 0.7 dB/km F 1200)
9 km (F-G 50/125 1.6 dB/km F 800) | Connection method | SC simplex |
| Wavelength | 1550 nm (Send)
1310 nm (Receiving) | Minimum receiver sensitivity | min. -31 dBm (dynamic in link mode (average)) |
| Maximum receiver sensitivity | -3 dBm (dynamic in link mode (average)) | Transmission medium | Multi-mode fiberglass
Single-mode fiberglass |
| Transmission speed | 10/100 Mbps | Connection method | RJ45 jack, shielded |
| No. of channels | 1 | Transmission length | 100 m (shielded twisted pair) |
| Transmission medium | Copper | Signal LEDs | Activity, link status, 10/100 Mbps |
| Auto-negotiation modes | Auto | Link through | Link fault pass through |
| MDI-/MDI-X switchover | Auto-MDI(X) | Width | 22.5 mm |
| Height | 99 mm | Depth | 114.5 mm |
| Color (Housing) | green (RAL 6021) | Material (Housing) | PA 6.6-FR |
| Fiber types | 50/125 µm
62.5/125 µm
Fiberglass | Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 65 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation)
≤ 2000 m (in acc. with UL) | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) | Certificate | CE-compliant |
| Identification | II 3 G Ex nA IIC T4 Gc X | Note | Please follow the special installation instructions in the documentation! |
| Identification | 508 Listed
Class I, Zone 2, AEx nA IIC T4
Class I, Zone 2, Ex nA IIC T4 Gc X
Class I, Div. 2, Groups A, B, C, D | Identification | ISA-S71.04-1985 G3 Harsh Group A |
| Identification | DNV GL | Temperature | B |
| Humidity | A | Vibration | A |
| EMC | B | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Standards/regulations | EN 61000-4-2 |
| Contact discharge | ± 6 kV (Test Level 3) | Discharge in air | ± 8 kV (Test Level 3) |
| Indirect discharge | ± 6 kV | Comments | Criterion B |
| Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 3 GHz (Test Level 3) |
| Field intensity | 10 V/m | Comments | Criterion A |
| Standards/regulations | EN 61000-4-4 | Input | ± 2 kV (Test Level 3) |
| Signal | ± 2 kV (Test Level 3) | Comments | Criterion B |
| Standards/regulations | EN 61000-4-5 | Input | ± 0.5 kV (DC supply) |
| Signal | ± 1 kV (Data line, asymmetrical) | Comments | Criterion B |
| Standards/regulations | EN 61000-4-6 | Frequency range | 0.15 MHz ... 80 MHz |
| Comments | Criterion A | Voltage | 10 V |
| Standards/regulations | EN 55032 | Comments | Class A, industrial applications |
| Criterion A | Normal operating behavior within the specified limits. | Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
| Free from substances that could impair the application of coating | VDMA 24364:2018-05 | Electrical isolation | according to IEEE 802.3 |
| Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
