Product Model

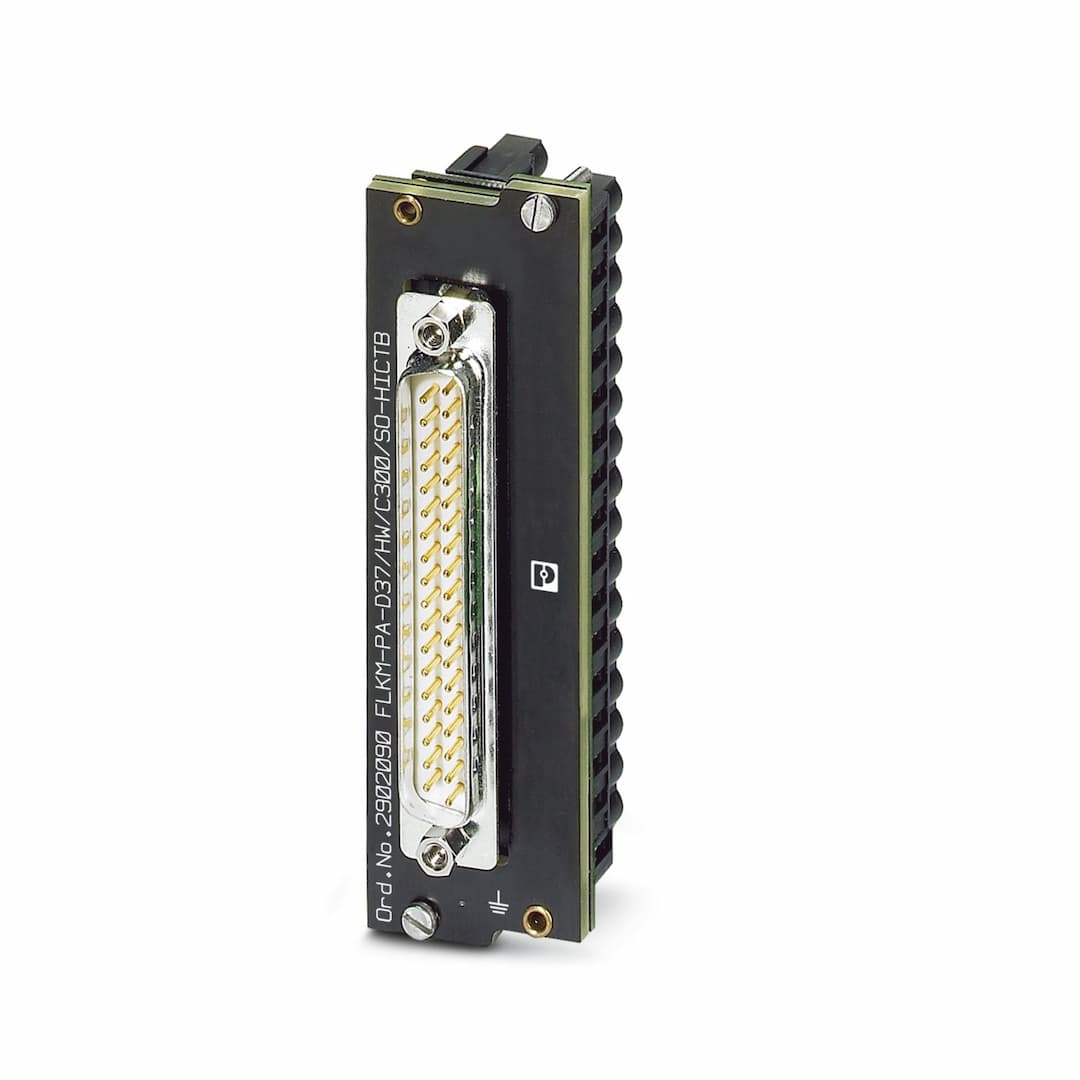

FLKM-PA-D37/HW/C300/SO-HICTB
Key Features
- 1Connects up to 16 digital channels for seamless I/O operations.
- 2Designed specifically for Honeywell C300 Series I/O systems.
- 3Features a 37-position D-SUB connector for secure connections.
- 4RoHS compliant and UL recognized for safety and reliability.
- 5Pre-assembled system cables ensure easy integration with I/O modules.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Front adapter | Product family | VARIOFACE |
| Article revision | 05 | Insulation | Functional insulation |
| Overvoltage category | II | Pollution degree | 2 |
| Operating voltage (AC) | ≤ 30 V AC | Operating voltage (DC) | ≤ 60 V DC |
| Nominal operating mode | 100% operating factor | Current (per branch) | ≤ 1 A |
| Rated insulation voltage | 63 V | Rated surge voltage | 0.6 kV (1.2/50 μs) |
| Connection method | Plug-in connection | Number of connections | 2 |
| Number of positions | 16 | Pitch | 5.08 mm |
| Connection in acc. with standard | IEC 60807-2 | Connection method | D-SUB pin strip |
| Screw thread | UNC 4-40 | Number of connections | 1 |
| Number of positions | 37 | Insertion/withdrawal cycles | > 500 |
| Pitch | 2.77 mm | Number of positions | 1 |
| Width | 93.8 mm | Height | 28 mm |
| Depth | 46.74 mm | Degree of protection (Module) | IP00 |
| Degree of protection (Installation location) | ≥ IP54 | Ambient temperature (operation) | -20 °C ... 70 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C | Altitude | ≤ 2000 m |
| Standards/regulations | EN IEC 60664-1 | Mounting type | Plug-in mounting |
| Mounting position | any | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
