Product Model

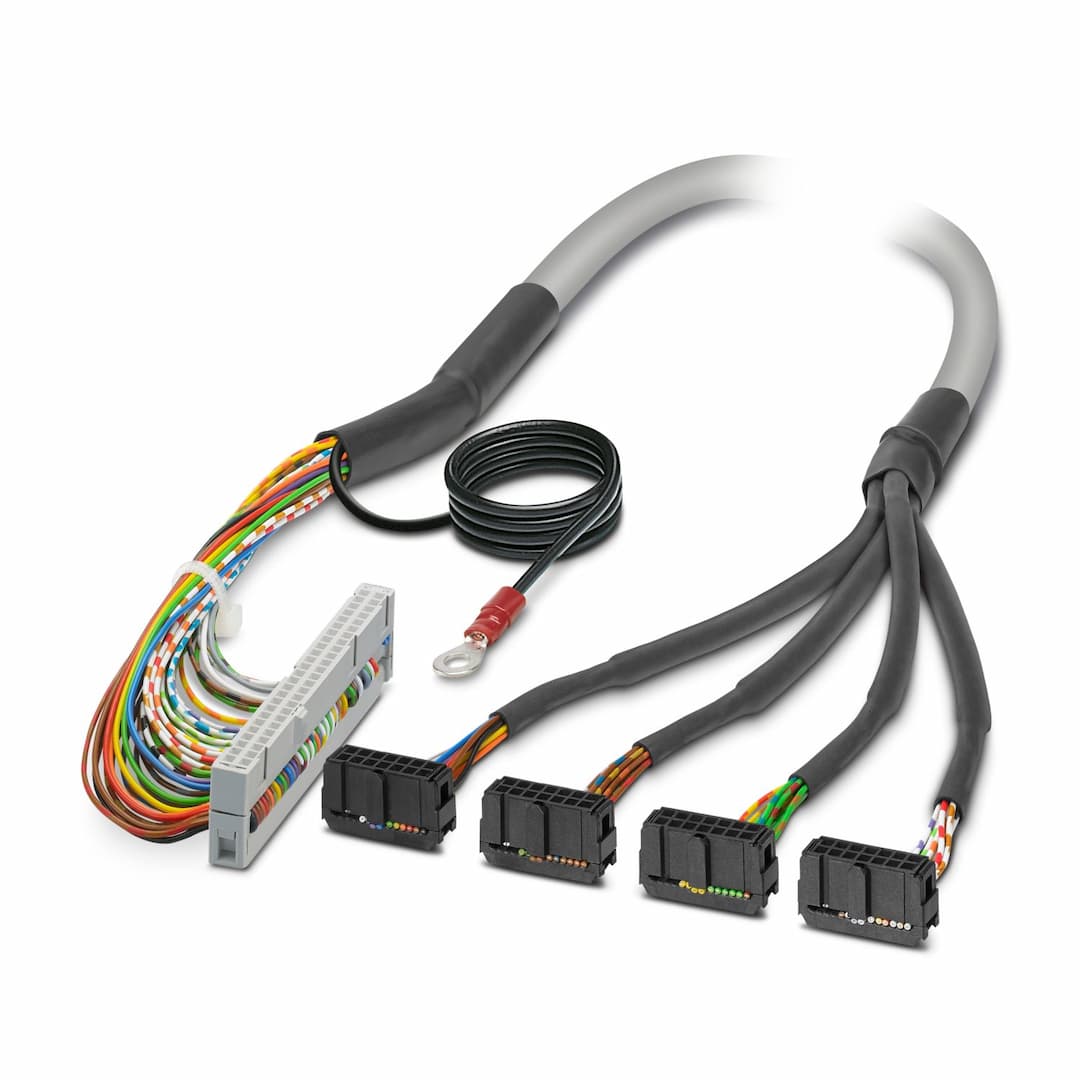

FLKMIL-50/4FLK14/EZ-DR/2000/CS
Key Features
- 1Reduces wiring time significantly with pre-assembled system cables.
- 2Ensures protection against polarity reversal with high-pole pin strips and free-wheeling diodes.
- 3Supports up to 50 positions and 14-pole connections for various PLC configurations.
- 4Built with robust materials and designed for reliable operation in harsh environments.
- 5Simple plug-in connections simplify the installation process, reducing errors and troubleshooting time.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | System cable | Article revision | 07 |
| Degree of protection | IP00 | Degree of protection (Installation location) | ≥ IP54 (Installation location) |
| Ambient temperature (operation) | -40 °C ... 70 °C (fixed installation)
-10 °C ... 70 °C (flexible installation) | Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | ≤ 2000 m | Operating voltage (DC) | ≤ 30 V DC |
| Nominal operating mode | 100% operating factor | Current (Per path) | ≤ 500 mA (uncoiled) |
| Suitable I/O card | ADV161
ADV561 | Suitable I/O card | NFDV161
NFDV561 |
| Cable length | 20 m | UL AWM Style | 2464/1061 |
| Number of positions | 40 | Shielded | yes |
| Cable type | 40X0.14 [PVC] | Conductor type | Assembled shielded round cable |
| Conductor structure signal line | 7x 0.16 mm | AWG signal line | 26 |
| Conductor cross section | 40x 0.14 mm² | Wire diameter incl. insulation | 1 mm ±0.03 mm |
| External cable diameter | 9.80 mm ±0.3 mm | Outer sheath, material | Semi-rigid PVC |
| External sheath, color | gray | Conductor material | Tin-plated Cu litz wires |
| Cable resistance | ≤ 145 Ω/km (at 20 °C) | Insulation resistance | ≥ 20 MΩ*km (20 °C) |
| Smallest bending radius, fixed installation | 101 mm | Smallest bending radius, movable installation | 182 mm |
| Dynamic load capacity (bending) | Max. bending cycles: 5000 (at a radius of ≥ 18x outside diameter) | Halogen-free | no |
| Flame resistance | IEC 60332-1-2 (raw cable)
VDE 0842, Part 332-1-2 (raw cable)
IEC 60332-3-22 (raw cable)
UL VW-1
CSA FT-1 | Resistance to oil | can withstand occasional splashes (raw cable) |
| Cable type | Splitting cable for four modules | Connection in acc. with standard | IEC 60603-13 (in compliance) |
| Connection method | IDC/FLK socket strip | Number of connections | 1 |
| Number of positions | 50 | Insertion/withdrawal cycles | > 50 |
| Pitch | 2.54 mm | Connection in acc. with standard | IEC 60603-13 (in compliance) |
| Connection method | IDC/FLK socket strip | Number of connections | 4 |
| Number of positions | 14 | Insertion/withdrawal cycles | > 50 |
| Pitch | 2.54 mm | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
