Product Model

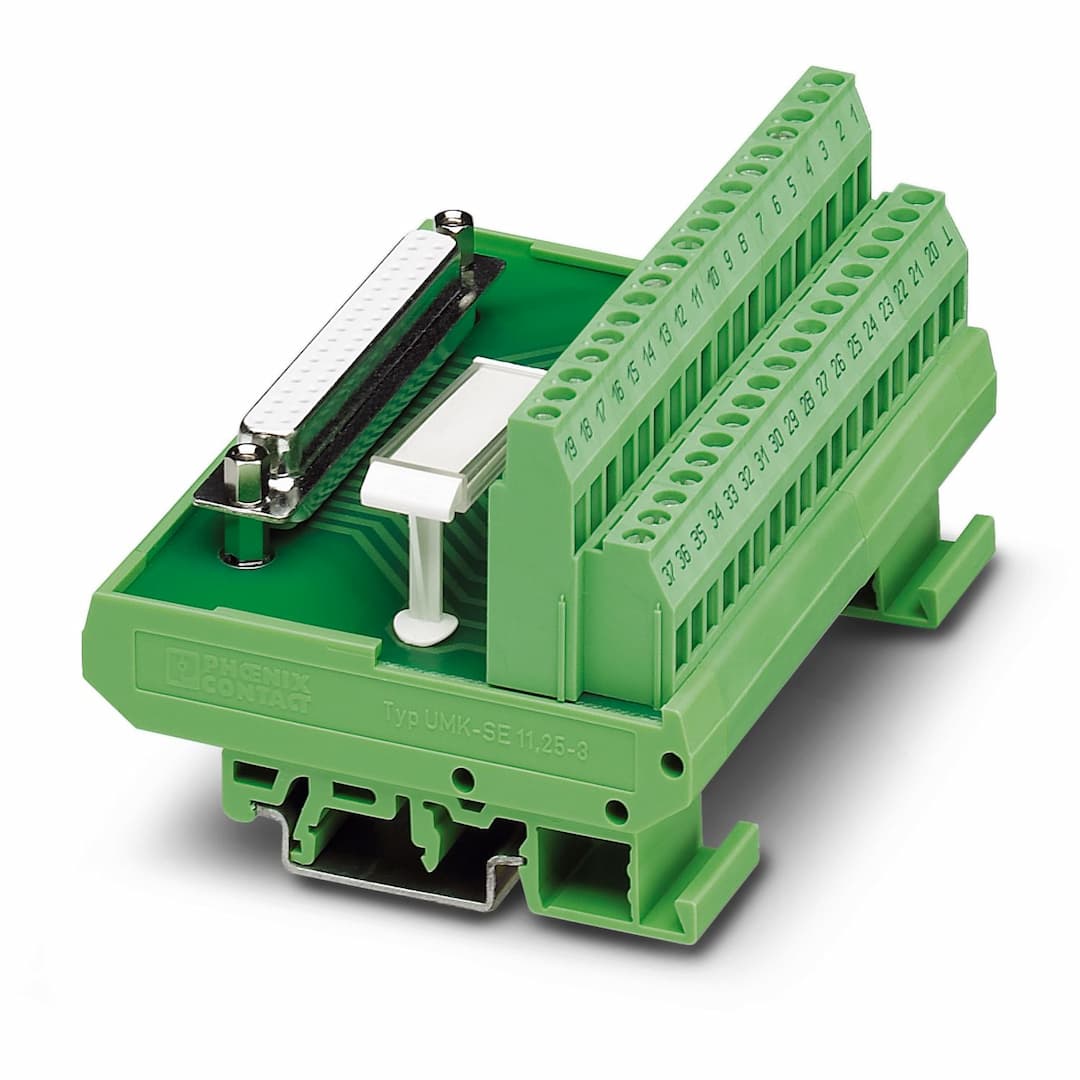

FLKM-D37 SUB/B
Key Features
- 1DIN Rail Mounting: Easily integrate into your industrial setup with DIN rail mounting.
- 237-Contact D-Sub Connector: Compatible with 37-position D-sub connectors for versatile connectivity.
- 32.5A Current Rating: Handles up to 2.5A of current, suitable for various electrical applications.
- 4Operating Temperature Range: Operates between -20°C and +50°C, ensuring reliability in diverse environments.
- 5IP20 Rating: Meets IP20 protection standards, providing a safe and secure connection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Interface module | Product family | VARIOFACE |
| Article revision | 19 | Insulation | Functional insulation |
| Overvoltage category | II | Pollution degree | 2 |
| Operating voltage (AC) | ≤ 30 V AC | Operating voltage (DC) | ≤ 60 V DC |
| Current (per branch) | ≤ 2.5 A | Current (Total current) | ≤ 9.4 A |
| Rated insulation voltage | 125 V | Rated surge voltage | 1.2 kV (1.2/50 μs) |
| Connection in acc. with standard | IEC 60807-2 | Connection method | D-SUB socket strip |
| Screw thread | UNC 4-40 | Number of connections | 1 |
| Number of positions | 37 | Insertion/withdrawal cycles | > 500 |
| Pitch | 2.77 mm | Connection method | Screw connection |
| Stripping length | 7 mm | Screw thread | M3 |
| Number of positions | 38 | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross-section rigid (2 conductors with same cross section) | 0.2 mm² ... 1.5 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm²
0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve)
0.25 mm² ... 2.5 mm² (Ferrule with plastic sleeve) |
| Conductor cross section flexible (2 conductors with same cross section) | 0.2 mm² ... 1.5 mm²
0.25 mm² ... 0.75 mm² (Ferrule without plastic sleeve)
0.5 mm² ... 0.5 mm² (TWIN ferrule with plastic sleeve) | Conductor cross section AWG | 24 ... 12 |
| Tightening torque | 0.5 Nm ... 0.6 Nm | Pitch | 5.08 mm |
| Status display present | No | Width | 101.3 mm |
| Height | 77 mm | Depth | 57.57 mm |
| Color | green (RAL 6021) | Housing insulation material | Polyamide PA non-reinforced |
| Degree of protection (Module) | IP20 | Degree of protection (Installation location) | ≥ IP54 |
| Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Altitude | ≤ 2000 m | Certificate | UKCA-compliant |
| Standards/regulations | EN IEC 60664-1 | Mounting type | DIN rail mounting |
| Mounting position | any | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
