Product Model

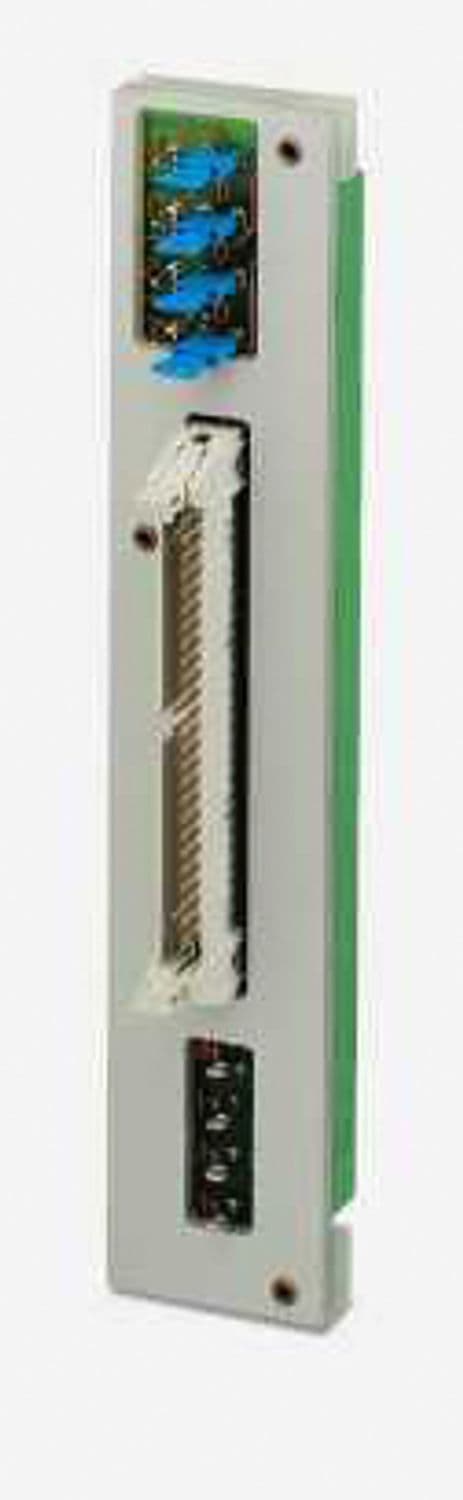

FLKM 50-PA-T200
Key Features
- 1Connects 50 analog channels via a 50-pos. system cable.
- 2Easy plug-in mounting for quick installation.
- 3Functional insulation with overvoltage category II and pollution degree 2.
- 4Operates at ambient temperatures from -20°C to 50°C.
- 5Meets EN IEC 60664-1 standards for air clearances and creepage distances.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Front adapter | Overvoltage category | II |
| Pollution degree | 2 | Max. permissible operating voltage | < 50 V AC
60 V DC |
| Max. permissible current | 1 A (per path)
4 A (per connection, supply via separate power supply) | Connection method | IDC/FLK pin strip |
| Number of connections | 1 | Number of positions | 50 |
| Pitch | 2.54 mm | Ambient temperature (operation) | -20 °C ... 50 °C |
| Standards/regulations | IEC 60664
IEC 60664A
DIN VDE 0110
DIN VDE 0160 (in parts) | Mounting position | any |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
