Product Model

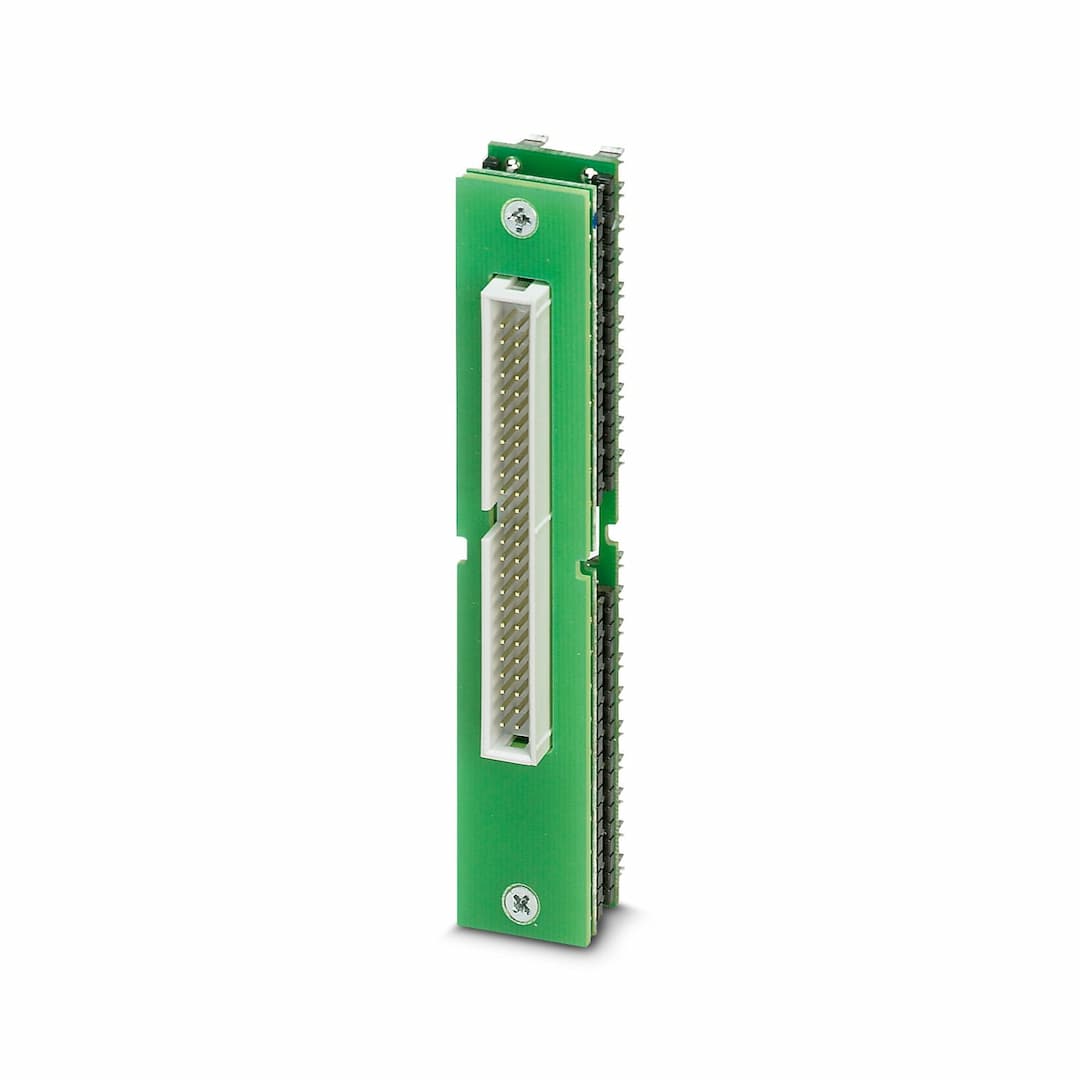

FLKM 50-PA-S300/SO167
Key Features
- 1Compatible with Siemens SIMATIC S7-300 systems.
- 2Supports up to 32 channels for efficient connectivity.
- 3Operating voltage: ≤ 25 V AC, ≤ 60 V DC.
- 4Current rating: ≤ 1 A per path, ≤ 2 A total.
- 5Durable design for reliable performance in industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Front adapter | Insulation | Functional insulation |
| Overvoltage category | II | Pollution degree | 2 |
| Operating voltage (AC) | ≤ 25 V AC | Operating voltage (DC) | ≤ 60 V DC |
| Current (Per path) | ≤ 1 A | Current (Total current) | ≤ 2 A |
| Rated insulation voltage | 63 V | Rated surge voltage | 0.6 kV (1.2/50 μs) |
| Suitable I/O card | 6ES7326-1BK02-0AB0
6ES7336-1HE00-0AB0 | Connection method | IDC/FLK pin strip |
| Number of connections | 1 | Number of positions | 50 |
| Pitch | 2.54 mm | Degree of protection | IP00 |
| Degree of protection (Installation location) | ≥ IP54 (Installation location) | Ambient temperature (operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C | Altitude | < 2000 m |
| Standards/regulations | DIN EN 50178: 1998-04 | Mounting position | any |
| Notes on operation | The products may only be installed or used by qualified personnel. Compliance with all safety requirements, including all applicable laws, regulations, and standards, must be ensured. | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
