Product Model

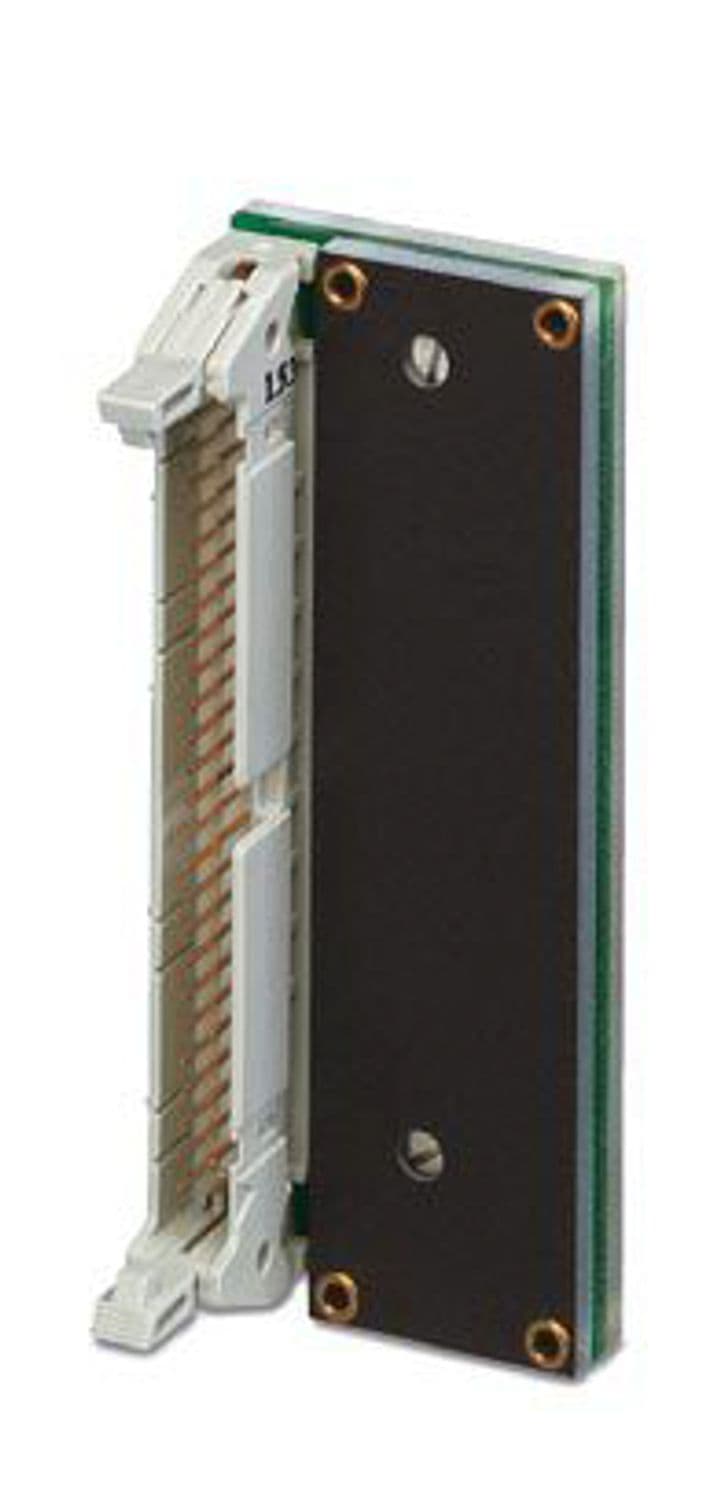

FLKM 50-PA-MELSEC A1S/32-I
Key Features
- 1Designed for demanding industrial applications with a maximum permissible current of 1 A per path.
- 2Features IDC/FLK pin strip connections with 50 positions, ensuring flexible and secure connections.
- 3Operates in ambient temperatures from -20 °C to 50 °C, making it suitable for various environments.
- 4Meets IEC 60664 and DIN VDE 0110 standards for safety and reliability.
- 5Simple mounting and connection process, reducing setup time and increasing efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Front adapter | Overvoltage category | II |
| Pollution degree | 2 | Max. permissible current | 1 A (per path) |
| Connection method | IDC/FLK pin strip | Number of connections | 1 |
| Number of positions | 50 | Pitch | 2.54 mm |
| Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Standards/regulations | IEC 60664
IEC 60664A
DIN VDE 0110
DIN VDE 0160 (in parts) | Mounting position | any |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
