Product Model

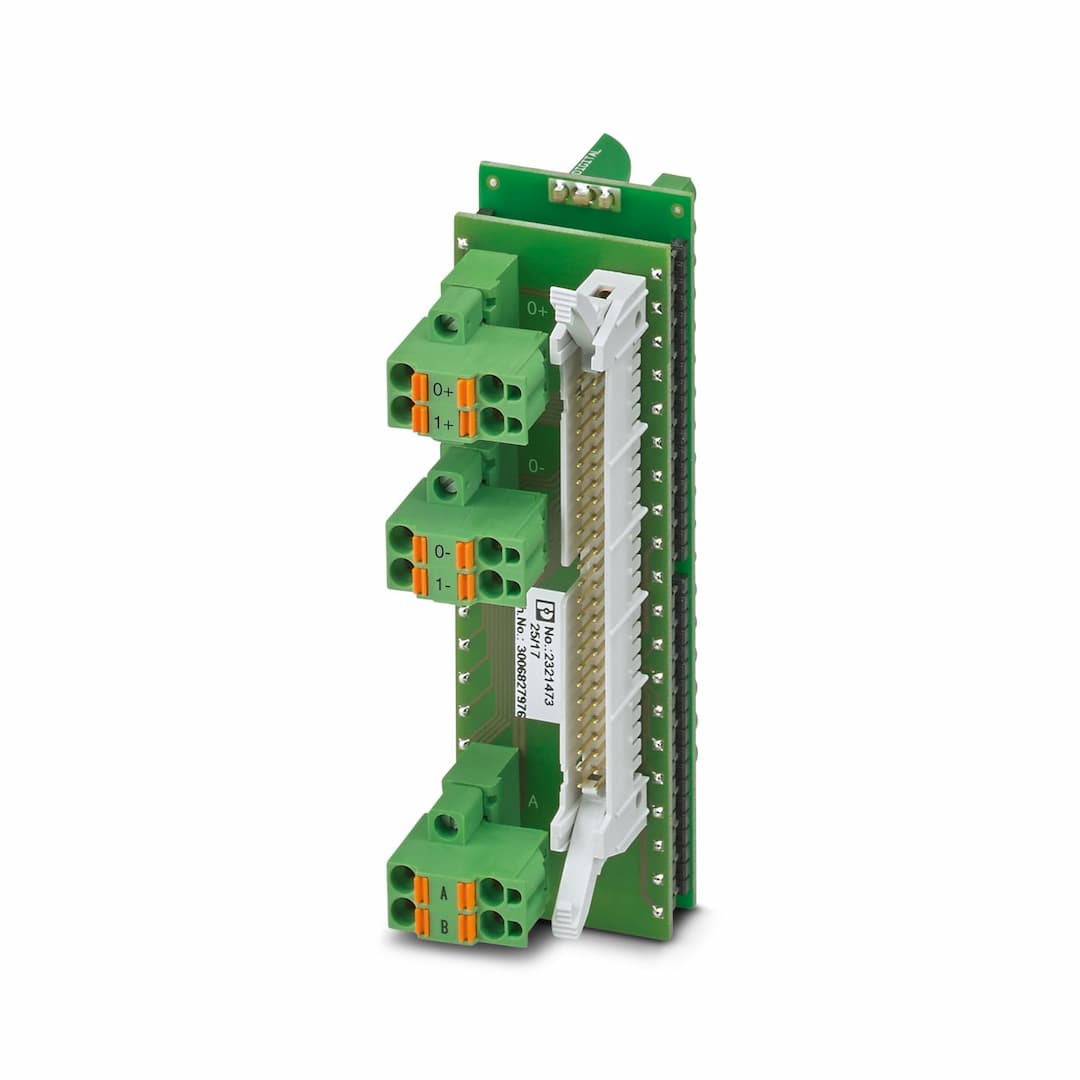

FLKM 50-PA-GE/TKFC/RXI
Key Features
- 1Connects up to 32 channels for GE Fanuc PACSystems RX3i.
- 2Compatible with VARIOFACE termination boards and I/O modules.
- 3Supports transmission via a 50-pos. system cable.
- 4Meets DIN EN 50178 and IEC 60664 standards.
- 5Suitable for ambient temperatures from -20°C to 50°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Front adapter | Article revision | 06 |
| Insulation | Functional insulation | Overvoltage category | II |
| Pollution degree | 2 | Operating voltage (AC) | ≤ 25 V AC |
| Operating voltage (DC) | ≤ 60 V DC | Current (Per path) | ≤ 1 A |
| Current (per connection) | ≤ 8 A (Feed-in via separate power supply) | Rated insulation voltage | 63 V |
| Rated surge voltage | 0.6 kV | Suitable I/O card | IC694MDL754 |
| Connection method | IDC/FLK pin strip | Number of connections | 1 |
| Number of positions | 50 | Pitch | 2.54 mm |
| Connection method | Pluggable spring-cage connection | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
| Width | 34.8 mm | Height | 108.5 mm |
| Depth | 59.62 mm | Degree of protection | IP00 |
| Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Standards/regulations | DIN EN 50178
IEC 60664 | Mounting position | any |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
