Product Model

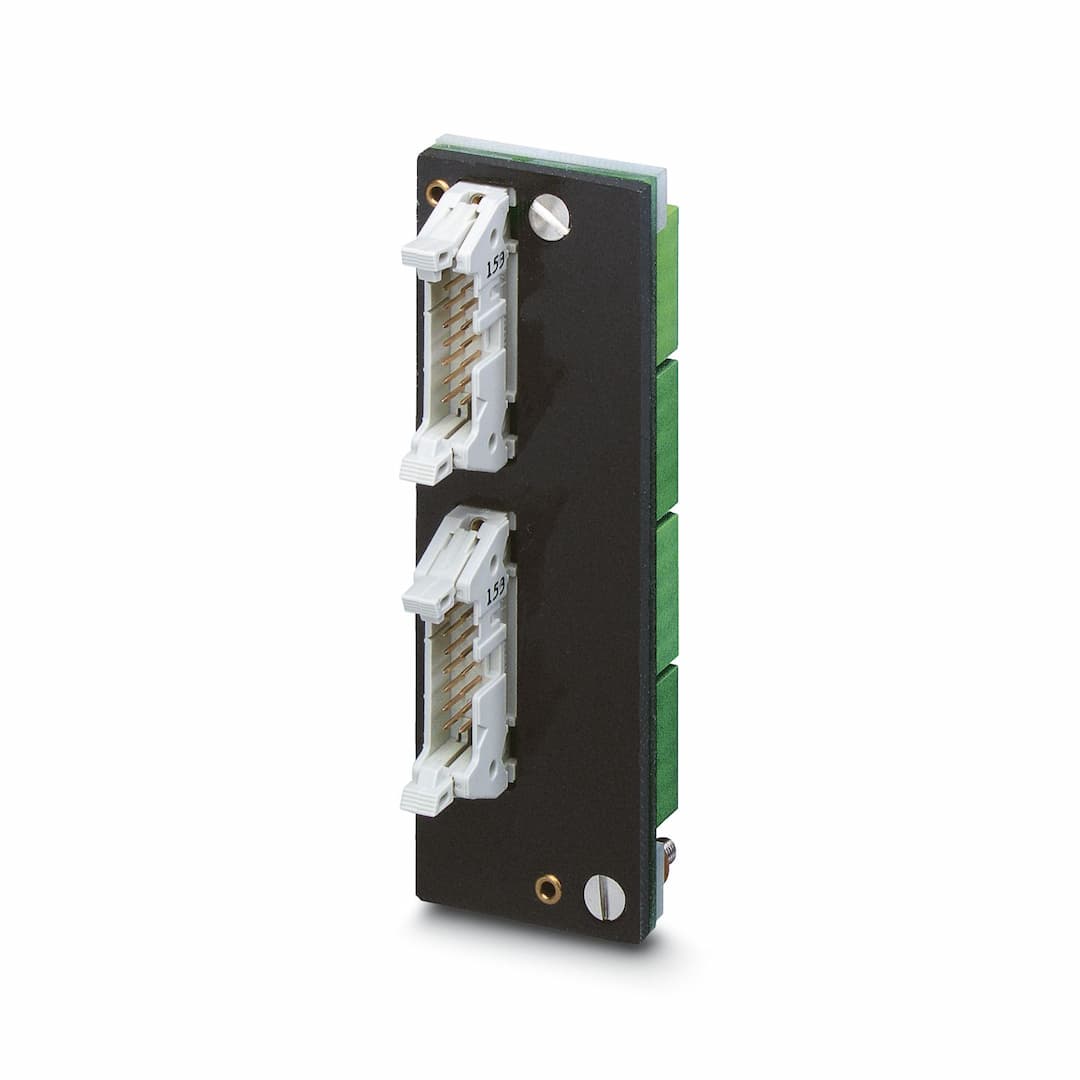

FLKM 14-PA-MELSEC A1S/O
Key Features
- 1Versatile Connectivity: Connects 2 x 8 channels for seamless integration with Mitsubishi Electric MELSEC A1S X80 and X80-1 systems.
- 2High-Quality Insulation: Features functional insulation with an overvoltage category of II and pollution degree of 2, ensuring reliable operation.
- 3Compact Design: Lightweight at 0.099 kg, making it easy to handle and mount in various positions.
- 4Durable Construction: Rated insulation voltage of 50 V and surge voltage of 0.5 kV, providing robust protection against electrical surges.
- 5Compliance with Standards: Meets IEC 60664 and DIN EN 50178 standards, ensuring compliance with industry regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Front adapter | Insulation | Functional insulation |
| Overvoltage category | II | Pollution degree | 2 |
| Operating voltage (DC) | ≤ 30 V DC | Current (Per path) | ≤ 1 A |
| Current (per connection) | ≤ 4 A (Feed-in via separate power supply) | Rated insulation voltage | 50 V |
| Rated surge voltage | 0.5 kV | Connection method | IDC/FLK pin strip |
| Number of connections | 2 | Number of positions | 14 |
| Pitch | 2.54 mm | Degree of protection | IP00 |
| Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Standards/regulations | IEC 60664
DIN EN 50178 | Mounting position | any |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
