Product Model

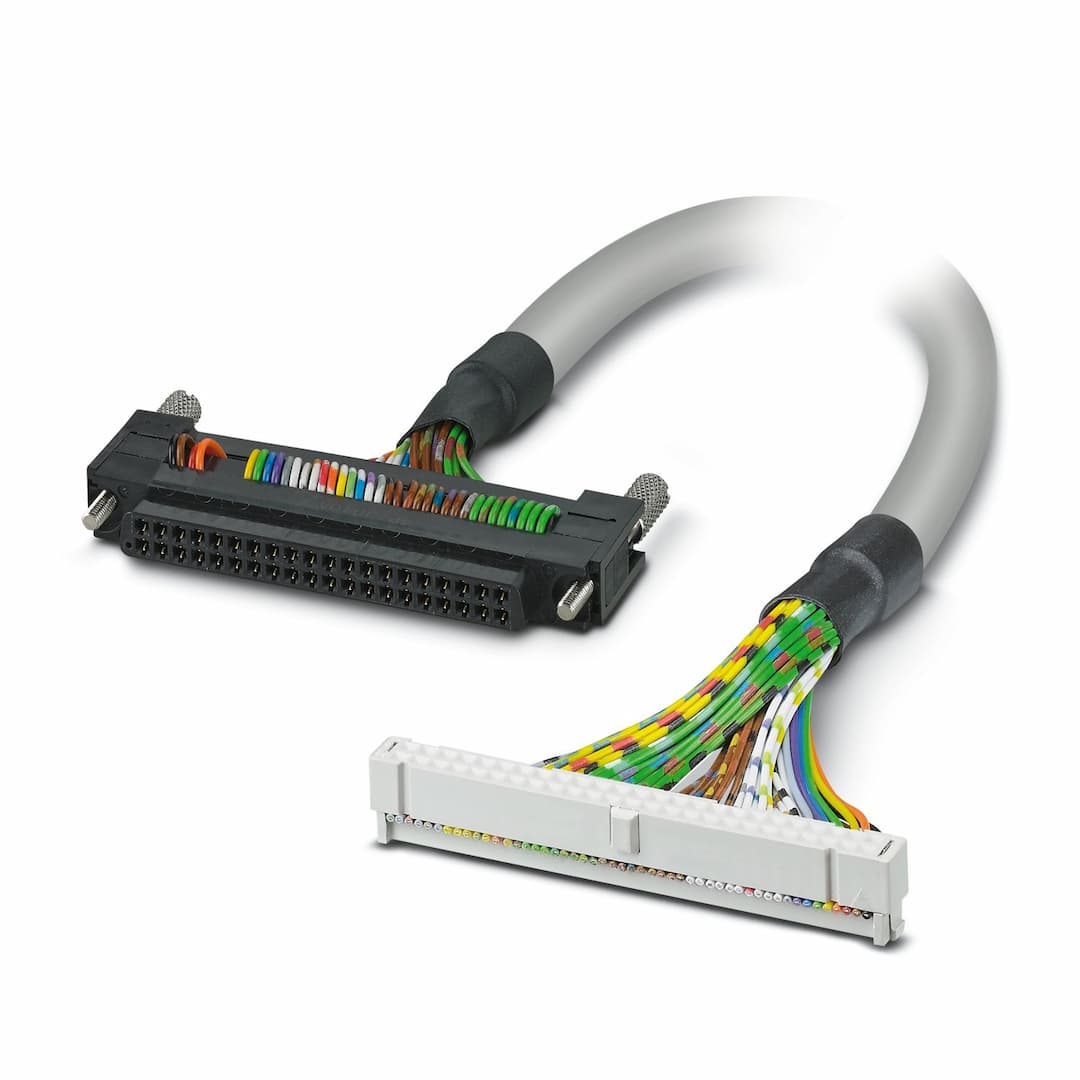

FLK 50/EZ-DR/FCN40/100/OMR-OUT
Key Features
- 1Efficiently transfer signals across 32 channels with this reliable interface cable.
- 2Suitable for both fixed and flexible installations, ensuring versatility in your automation setup.
- 3Made with tin-plated Cu litz wires and semi-rigid PVC, providing long-lasting performance.
- 4Supports OMRON CQM1, CS1/C200H, and CJ1 controllers with specific I/O cards.
- 5Compact 1-meter length with a 50-position IDC/FLK socket strip and 40-position Fujitsu connector.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | System cable | Degree of protection | IP00 |
| Degree of protection (Installation location) | ≥ IP54 (Installation location) | Ambient temperature (operation) | -40 °C ... 70 °C (fixed installation)
-10 °C ... 70 °C (flexible installation) |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C | Altitude | ≤ 2000 m |
| Operating voltage (AC) | ≤ 30 V AC | Operating voltage (DC) | ≤ 60 V DC |
| Nominal operating mode | 100% operating factor | Current (Per path, 50°C) | ≤ 1 A (Uncoiled, see derating) |
| Current (Per path, 70°C) | ≤ 0.6 A (Uncoiled, see derating) | Suitable I/O card | OD213 |
| Suitable I/O card | OD218
OD219 | Suitable I/O card | OD218
OD219 |
| Suitable I/O card | OD231
OD261 | Cable length | 1 m |
| UL AWM Style | 2464/1061 | Number of positions | 40 |
| Shielded | no | Cable type | 40X0.14 [PVC] |
| Conductor type | Round cable set | Conductor structure signal line | 7x 0.16 mm |
| AWG signal line | 26 | Conductor cross section | 40x 0.14 mm² |
| Wire diameter incl. insulation | 1 mm ±0.03 mm | External cable diameter | 9.90 mm ±0.4 mm |
| Outer sheath, material | Semi-rigid PVC | External sheath, color | gray |
| Conductor material | Tin-plated Cu litz wires | Cable resistance | ≤ 145 Ω/km (20 °C) |
| Insulation resistance | ≥ 20 MΩ*km (20 °C) | Smallest bending radius, fixed installation | 82 mm |
| Smallest bending radius, movable installation | 155 mm | Dynamic load capacity (bending) | Max. bending cycles: 5000 (at a radius of ≥ 15x outside diameter) |
| Halogen-free | no | Flame resistance | IEC 60332-1-2 (raw cable)
VDE 0842, Part 332-1-2 (raw cable)
IEC 60332-3-22 (raw cable)
UL VW-1
CSA FT-1 |
| Resistance to oil | can withstand occasional splashes (raw cable) | Cable type | Cable for one module |
| black | Fujitsu40 (A1) = IDC/FLK50 (3) | brown | Fujitsu40 (B1) = IDC/FLK50 (27) |
| red | Fujitsu40 (A2) = IDC/FLK50 (4) | orange | Fujitsu40 (B2) = IDC/FLK50 (28) |
| yellow | Fujitsu40 (A3) = IDC/FLK50 (5) | green | Fujitsu40 (B3) = IDC/FLK50 (29) |
| blue | Fujitsu40 (A4) = IDC/FLK50 (6) | violet | Fujitsu40 (B4) = IDC/FLK50 (30) |
| gray | Fujitsu40 (A5) = IDC/FLK50 (7) | white | Fujitsu40 (B5) = IDC/FLK50 (31) |
| white-black | Fujitsu40 (A6) = IDC/FLK50 (8) | white-brown | Fujitsu40 (B6) = IDC/FLK50 (32) |
| white-red | Fujitsu40 (A7) = IDC/FLK50 (9) | white-orange | Fujitsu40 (B7) = IDC/FLK50 (33) |
| white-yellow | Fujitsu40 (A8) = IDC/FLK50 (10) | white-green | Fujitsu40 (B8) = IDC/FLK50 (34) |
| white-blue | Fujitsu40 (A9) = IDC/FLK50 (11) | white-violet | Fujitsu40 (B9) = IDC/FLK50 (35) |
| white-gray | Fujitsu40 (A10) = IDC/FLK50 (1) | brown-black | Fujitsu40 (B10) = IDC/FLK50 (25) |
| brown-red | Fujitsu40 (A11) = IDC/FLK50 (15) | brown-orange | Fujitsu40 (B11) = IDC/FLK50 (39) |
| brown-yellow | Fujitsu40 (A12) = IDC/FLK50 (16) | brown-green | Fujitsu40 (B12) = IDC/FLK50 (40) |
| brown-blue | Fujitsu40 (A13) = IDC/FLK50 (17) | brown-violet | Fujitsu40 (B13) = IDC/FLK50 (41) |
| brown-gray | Fujitsu40 (A14) = IDC/FLK50 (18) | brown-white | Fujitsu40 (B14) = IDC/FLK50 (42) |
| green-black | Fujitsu40 (A15) = IDC/FLK50 (19) | green-brown | Fujitsu40 (B15) = IDC/FLK50 (43) |
| green-red | Fujitsu40 (A16) = IDC/FLK50 (20) | green-orange | Fujitsu40 (B16) = IDC/FLK50 (44) |
| green-blue | Fujitsu40 (A17) = IDC/FLK50 (21) | green-violet | Fujitsu40 (B17) = IDC/FLK50 (45) |
| green-gray | Fujitsu40 (A18) = IDC/FLK50 (22) | green-white | Fujitsu40 (B18) = IDC/FLK50 (46) |
| yellow-black | Fujitsu40 (A19) = IDC/FLK50 (23) | yellow-brown | Fujitsu40 (B19) = IDC/FLK50 (47) |
| yellow-red | Fujitsu40 (A20) = IDC/FLK50 (13) | yellow-orange | Fujitsu40 (B20) = IDC/FLK50 (37) |
| Connection method | Fujitsu connector | Type | FCN 367 |
| Number of connections | 1 | Number of positions | 40 |
| Insertion/withdrawal cycles | > 50 | Pitch | 2.54 mm |
| Connection in acc. with standard | IEC 60603-13 (in compliance) | Connection method | IDC/FLK socket strip |
| Number of connections | 1 | Number of positions | 50 |
| Insertion/withdrawal cycles | > 50 | Pitch | 2.54 mm |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
