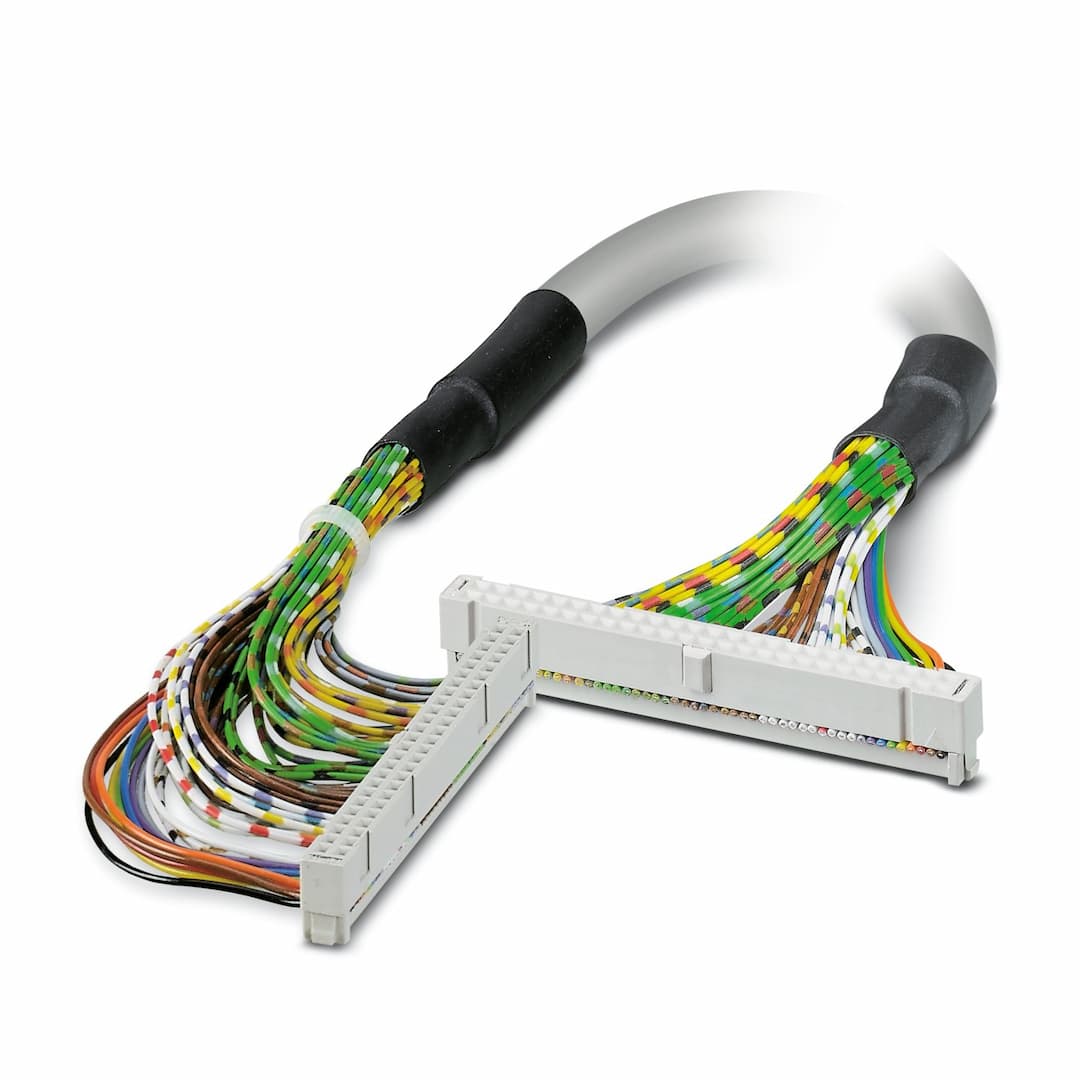

Product Model
FLK 50/EZ-DR/ 625/KONFEK
Key Features
- 1High-Quality Connectivity: Reliable and durable round cable set for industrial use.
- 2Efficient Connection: Connects 32 channels with two 50-pos socket strips for a 1:1 connection.
- 3Long Cable Length: Available in 6.25 m length, suitable for various industrial setups.
- 4Industrial Compatibility: Compatible with Siemens S7-300, Schneider Electric MODICON TSX QUANTUM, and Allen-Bradley PLCs.
- 5Durable Construction: Tinned copper-braided shield provides excellent shielding and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | System cable | Operating voltage (AC) | ≤ 50 V AC |
| Operating voltage (DC) | ≤ 60 V DC | Current (Per path) | ≤ 1 A |
| Cable length | 6.25 m | UL AWM Style | 2464/1061 |
| Number of positions | 50 | Shielded | no |
| Cable type | 50X0.14 [PVC] | Conductor type | Round cable set |
| Conductor structure signal line | 7x 0.16 mm | AWG signal line | 26 |
| Conductor cross section | 50x 0.14 mm² | Wire diameter incl. insulation | 1 mm ±0.03 mm |
| External cable diameter | 10.30 mm ±0.4 mm | Outer sheath, material | Semi-rigid PVC |
| External sheath, color | gray | Conductor material | Tin-plated Cu litz wires |
| Cable resistance | ≤ 145 Ω/km (20 °C) | Insulation resistance | ≥ 20 MΩ*km (20 °C) |
| Smallest bending radius, fixed installation | 86 mm | Smallest bending radius, movable installation | 161 mm |
| Dynamic load capacity (bending) | Max. bending cycles: 5000 (at a radius of ≥ 15x outside diameter) | Halogen-free | no |
| Flame resistance | IEC 60332-1-2 (raw cable)
VDE 0842, Part 332-1-2 (raw cable)
IEC 60332-3-22 (raw cable)
UL VW-1
CSA FT-1 | Resistance to oil | can withstand occasional splashes (raw cable) |
| Cable type | Cable for one module | Connection method | IDC/FLK socket strip |
| Number of connections | 1 | Number of positions | 50 |
| Pitch | 2.54 mm | Connection method | IDC/FLK socket strip |
| Number of connections | 1 | Number of positions | 50 |
| Pitch | 2.54 mm | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
