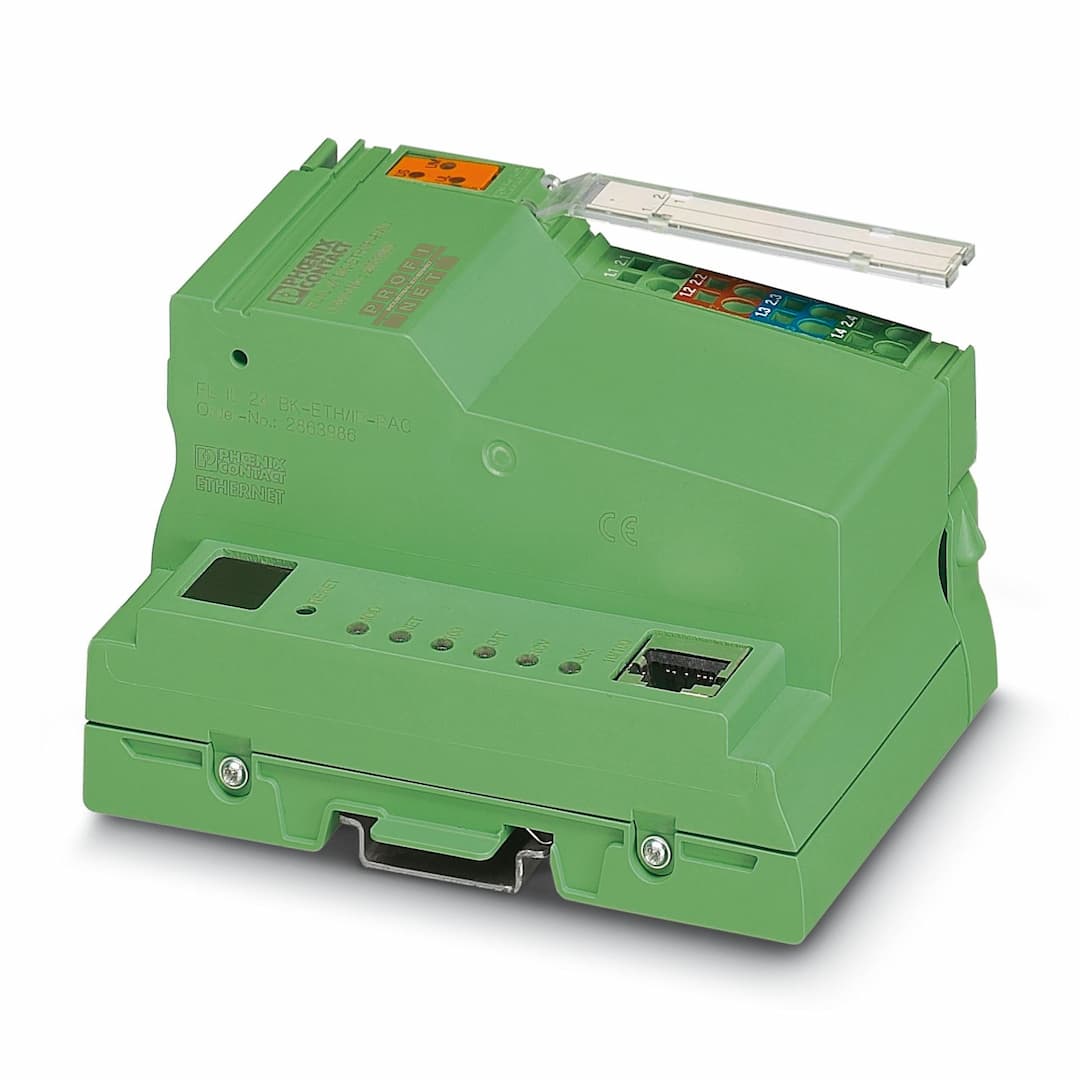

Product Model
FL IL 24 BK ETH/IP-PAC
Key Features
- 1Supports EtherNet/IP protocol for seamless integration.
- 2Connects up to 63 I/O terminals for extensive data transfer.
- 3Operates on 24 V DC power supply with a maximum current consumption of 1.5 A.
- 4Features IP20 degree of protection for reliable operation in harsh environments.
- 5Compatible with Sun Solaris and Windows NT driver software for easy configuration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 85 mm | Height | 119.8 mm |
| Depth | 71.5 mm | EMC note | EMC: class A product, see manufacturer's declaration in the download area |
| Color | green | No. of channels | 1 |
| Connection method | RJ45 jack | Note on the connection method | Autonegotiation |
| Transmission speed | 10/100 Mbps | Transmission physics | Copper |
| Connection method | Inline data jumper | Number of local bus devices that can be connected | max. 63 |
| Number of devices with parameter channel | max. 8 | Number of supported branch terminals with remote bus branch | 0 |
| ID code (hex) | none | Basic functions | EtherNet/IP™: Termination device, EtherNet/IP™ protocol, BootP-capable |
| Product type | I/O component | Product family | Inline |
| Type | modular | Transmission medium | Twisted pair cable 0.14 mm² ... 0.22 mm² |
| Supply voltage | 24 V DC (via Inline connector) | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | max. 1.5 A (with max. number of connected I/O terminal blocks)
typ. 92 mA (without connected Inline I/O terminals) | Supply voltage | 7.5 V DC ±5 % |
| Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Connection name | Inline connector | Connection method | Spring-cage connection |
| Conductor cross section rigid | 0.08 mm² ... 1.5 mm² | Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 | Stripping length | 8 mm |
| Connection method | Spring-cage connection | Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² | Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm | Ambient temperature (operation) | 0 °C ... 55 °C |
| Degree of protection | IP20 | Air pressure (operation) | 80 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Permissible humidity (operation) | 95 % (non-condensing) | Permissible humidity (storage/transport) | 95 % (non-condensing) |
| Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
