Product Model

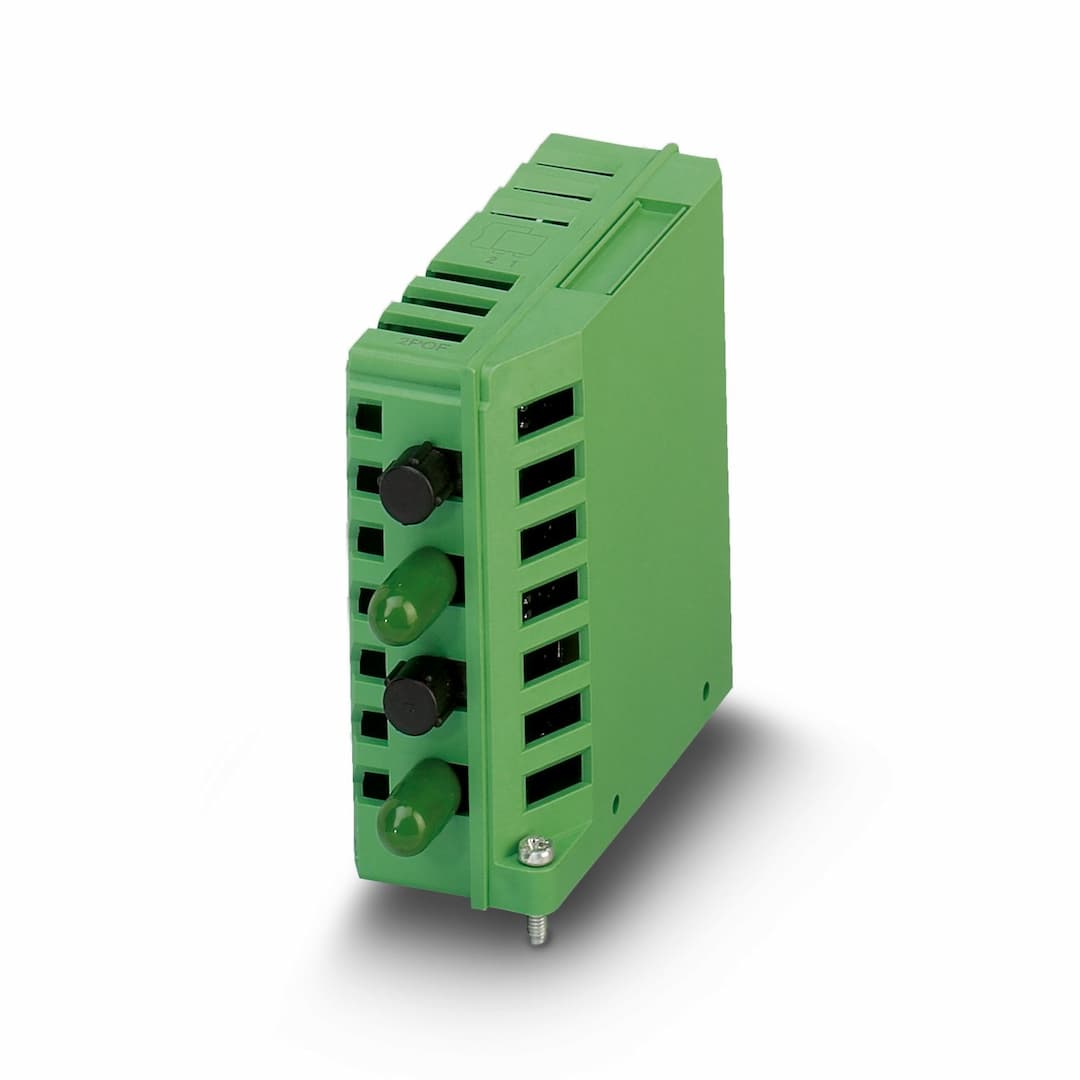

FL IF 2POF 10/100-D
Key Features
- 1Supports 10/100 Mbps transmission speeds for reliable data transfer.
- 2Designed with IP20 protection and operating in a wide ambient temperature range (0°C to 55°C).
- 3Can be plugged onto FL SWITCH MM HS or FL MXT for easy integration into modular managed switch systems.
- 4Ensures electrically isolated transmission for safe operation in industrial environments.
- 5Measures 31 mm in width, 73.5 mm in height, and 72.5 mm in depth for space-efficient installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Extension module | Type | fine granularity |
| Basic functions | Media module for modular managed switch | Electrical isolation | 10BASE-F/100BASE-FX//Supply |
| Transmission medium | FO | Supply voltage | via head station |
| Power supply connection | from FL SWITCH MM HS or MXT | Typical current consumption | 100 mA |
| Connection method | Can be plugged onto FL SWITCH MM HS or FL MXT | Connection method | Can be plugged onto FL SWITCH MM HS or FL MXT |
| Connection method | FSMA plugs | Transmission speed | 10/100 Mbps (connection direction downwards) |
| Transmission length | max. 50 m (including 3 dB system reserve, polymer fiber with 980/1000 230 dB/km) | No. of channels | 2 |
| Connection method | F-SMA connector | Transmission speed | 10/100 Mbps |
| Transmission length | 50 m (including 3 dB system reserve, polymer fiber with 980/1000 230 dB/km) | Wavelength | 650 nm |
| No. of channels | 2 | Width | 31 mm |
| Height | 80.3 mm | Depth | 72.5 mm |
| Color | green | Flammability rating according to UL 94 | V0 |
| Housing material | PA | Degree of protection | IP20 |
| Ambient temperature (operation) | 0 °C ... 55 °C (non-condensing) | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) | Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz | Electromagnetic compatibility | Conformance with EMC directive 89/336/EC |
| Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B
IEC 61000-4-3 (immunity to radiated interference) Criterion A
IEC 61000-4-4 (burst) Criterion A
IEC 61000-4-5 (surge) Criterion A
IEC 61000-4-6 (immunity to conducted interference) Criterion A
IEC 61000-4-8 (immunity to magnetic fields) Criterion A
EN 55022 (emitted interference) Criterion A | Noise immunity | EN 61000-6-2:2005 |
| Noise emission | EN 61000-6-3/-4 | Electrical isolation | 10BASE-F/100BASE-FX//Supply |
| Mounting type | In the host system |
Specifications may be subject to change without notice
