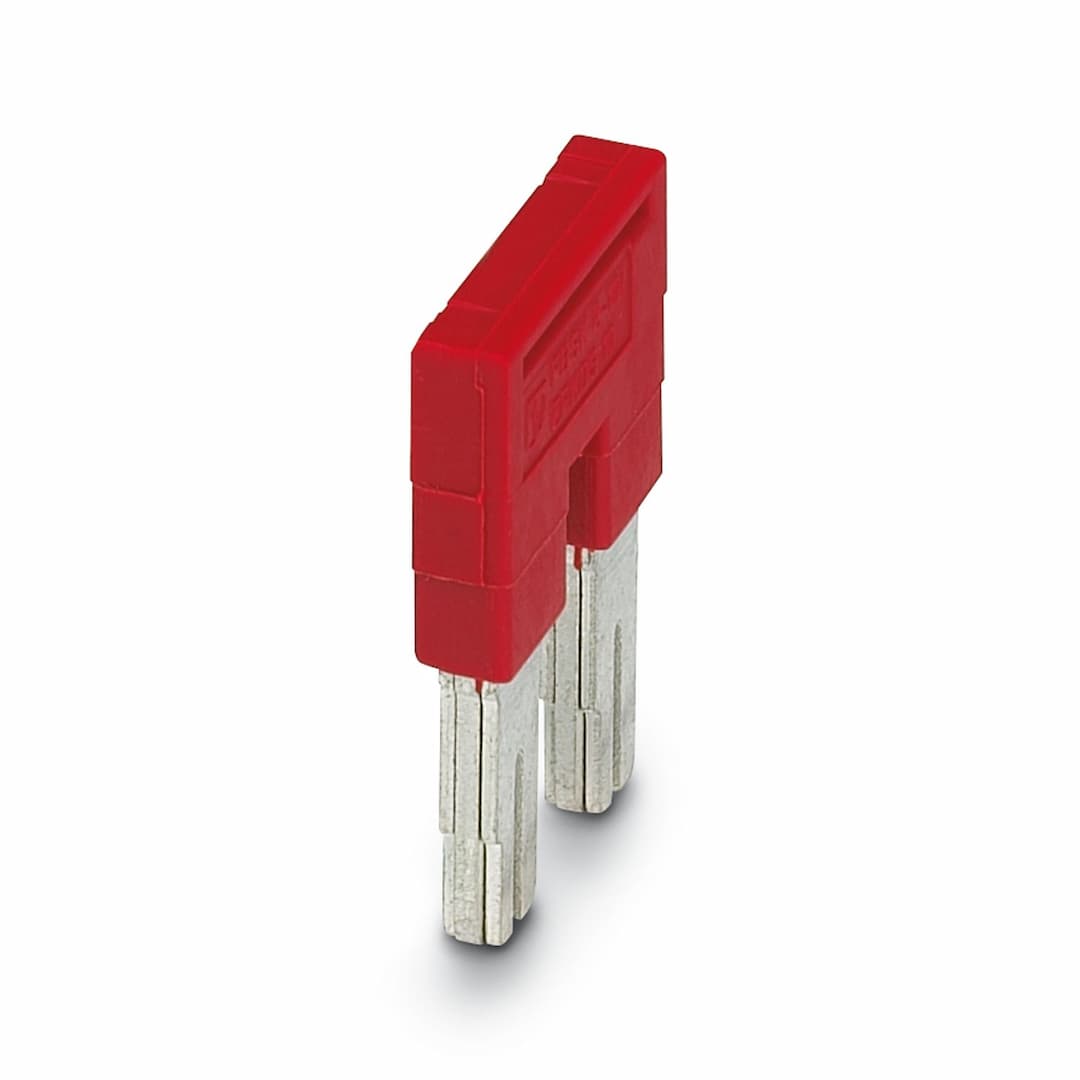

Product Model
FBSK 4-10/ZFKDS 10
Key Features
- 1Ensures environmental safety and compliance with international regulations.
- 2Ideal for precise and efficient connections in electronic circuits.
- 3Supports multiple connections, making it versatile for various applications.
- 4Designed to withstand temperatures up to 125°C for reliable performance.
- 5Constructed with Cu alloy contacts and PA insulating material for durability and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Bridge | Product family | FBSK |
| Product line | COMBICON Terminals Special | Number of positions | 4 |
| Pitch | 10 mm | Number of connections | 4 |
| Number of rows | 1 | Number of potentials | 4 |
| Article revision | 02 | Pitch | 10 mm |
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 | Contact material | Cu alloy |
| Color (Housing) | red (3001) | Insulating material | PA |
| Insulating material group | I | CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 | Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 | Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
| Insulating material | PA | CTI according to IEC 60112 | 600 |
Specifications may be subject to change without notice
