Product Model

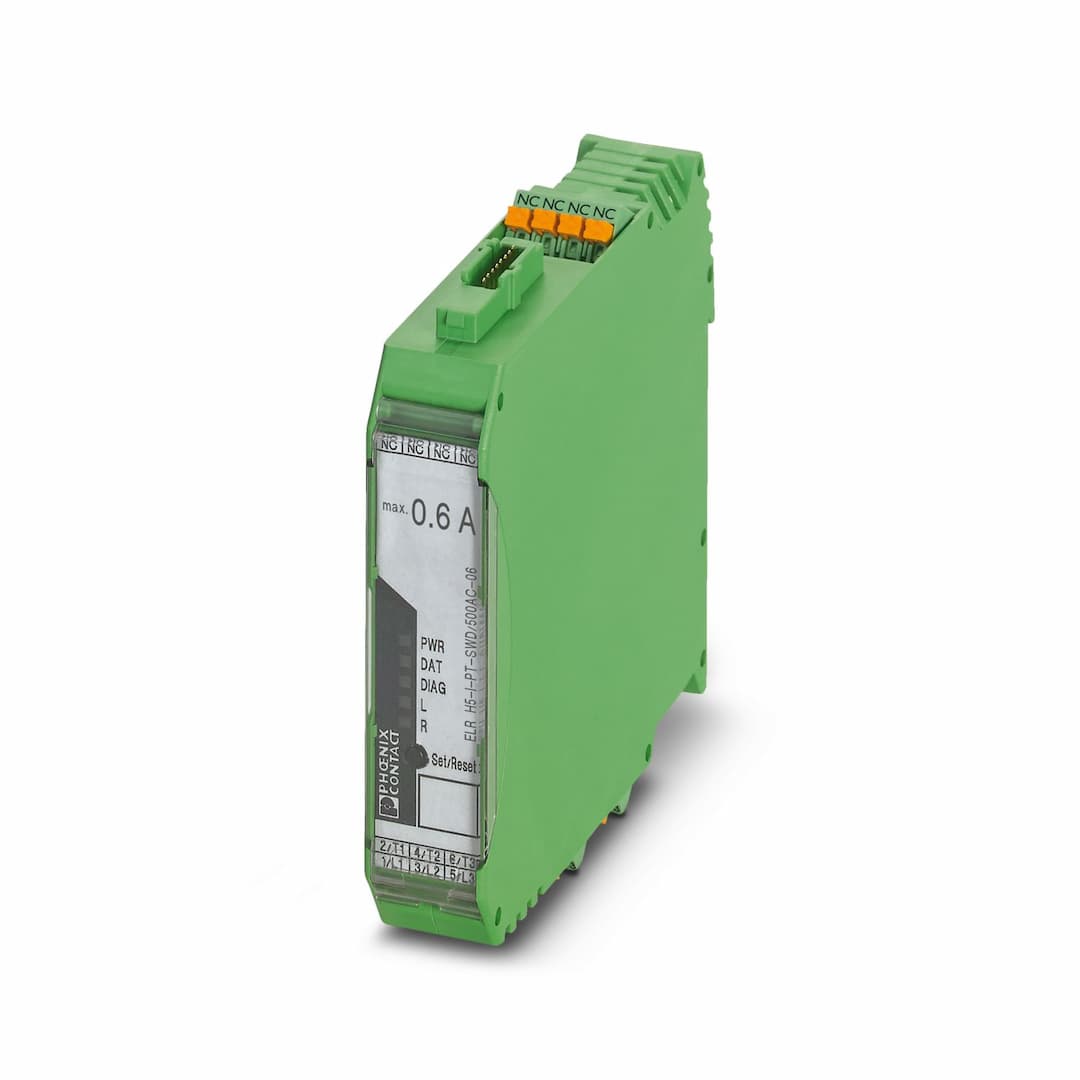

ELR H5-I-PT-SWD/500AC-06
Key Features
- 1Networkable Hybrid Motor Starter: Ideal for reversing 3-phase AC motors up to 500 V AC.
- 2Adjustable Overload Shutdown: Ensures safe operation with customizable overload protection.
- 3Emergency Stop Functionality: Provides immediate shutdown in emergency situations.
- 4DIN Rail Mounting: Compact design for easy installation on DIN rails.
- 5Push-in Connection: Simplifies wiring with secure push-in connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Notes on operation | If this device is to be used in combination with the CrossPowerSystem power distribution board, the device mount for the 16 A fuse (order designation: EM-CPS-DA-22,5F/16A; order number: 1002668) is required in order to attach the hybrid motor starter to the power distribution board. | Product type | Hybrid motor starters |
| Operating mode | 100% operating factor | Article revision | 04 |
| Number of phases | 3 | Switching frequency | ≤ 2 Hz (Load-dependent) |
| Maximum power dissipation for nominal condition | 0.5 W | Switching frequency | ≤ 2 Hz (Load-dependent) |
| Maximum power dissipation | 2.5 W | Minimum power dissipation | 0.88 W |
| Coordination type | 1 | Rated control circuit supply voltage U | 24 V DC |
| Control supply voltage range | 19.2 V DC ... 30 V DC | Rated control supply current I | 60 mA |
| Protective circuit | Surge protection
Reverse polarity protection; Parallel polarity protection diode | Rated insulation voltage | 550 V |
| Rated surge voltage | 6 kV | Overvoltage category | III |
| Degree of pollution | 2 | Insulation characteristics between the control input and control supply voltage, and auxiliary circuit to the main circuit | Safe isolation (IEC 60947-1) |
| Isolation characteristics between the control input and control supply voltage to auxiliary circuit | Safe isolation (IEC 60947-1) in the auxiliary circuit ≤ 300 V AC
Safe isolation (EN 50178) in the auxiliary circuit ≤ 300 V AC | Operate threshold | > 10 A |
| Response time | < 0.5 s | Rated operating voltage U | 500 V AC |
| Operating voltage range | 42 V AC ... 550 V AC | Rated operating current I | 0.6 A (AC-51)
0.6 A (AC-53a) |
| Mains frequency | 50/60 Hz | Load current range | 75 mA ... 600 mA (see to derating) |
| Trigger characteristic in acc. with IEC 60947-4-2 | Class 10 | Cooling time | 20 min (for auto reset) |
| Leakage current | 0 mA | Protective circuit | Surge protection; Varistor |
| Connection method | Push-in connection | Stripping length | 10 mm |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 14 | Connection method | Push-in connection |
| Stripping length | 10 mm | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 14 |
| Status display | LED (yellow) | Operating voltage display | Green LED |
| Error indication | Red LED | Width | 22.5 mm |
| Height | 107.5 mm | Depth | 114 mm |
| Flammability rating according to UL 94 | V0 (Housing) | Degree of protection | IP20 |
| Ambient temperature (operation) | -5 °C ... 55 °C (observe derating) | Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | ≤ 2000 m | Certificate | NLDX.E228652
NRNT.E172140 |
| SCCR | 100 kA (480 V AC (fuse: 30 A class CC/30 A class J (high fault)))
5 kA (480 V AC (fuse: 20 A RK5 (standard fault))) | FLA | 0.6 A (480 V AC) |
| Group installation | 20 A (class RK5, SCCR 5kA (480 V AC), #24 - 14 AWG max. solid and stranded)
30 A (class CC or J, SCCR 100kA (480 V AC), #24 - 14 AWG max, solid and stranded) | Category code | NLDX / NRNT |
| Horsepower ratings | - | Standards/regulations | IEC 60947-1
EN 60947-4-2 |
| Mounting type | DIN rail mounting | Assembly note | alignable, for spacing see derating |
| Mounting position | vertical (horizontal DIN rail, motor output below) |
