Product Model

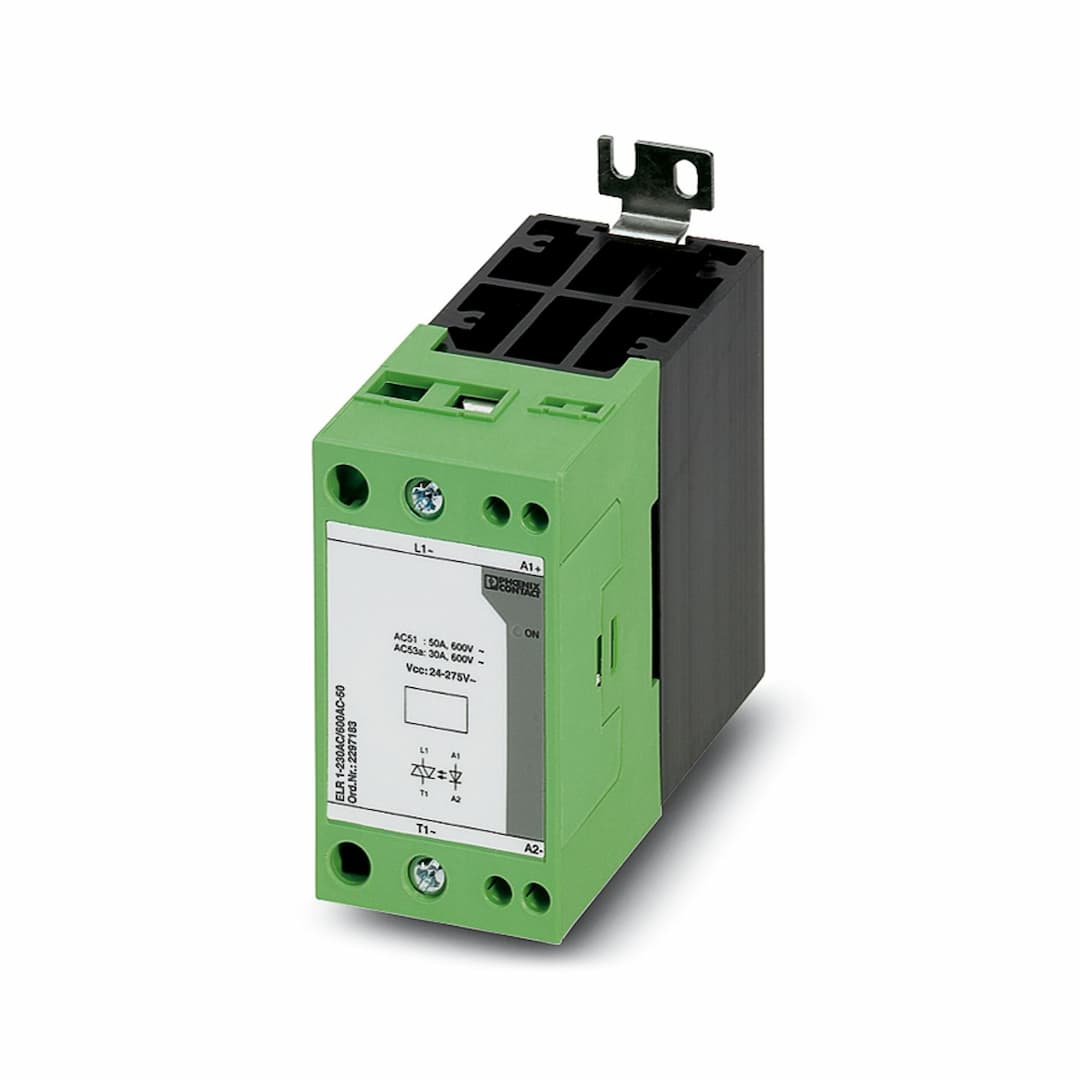

ELR 1-230AC/600AC-50
Key Features
- 1High switching frequency for efficient operation.
- 2Wear and bounce-free design for reliable performance.
- 3Compatible with 24 V DC and 230 V AC input voltages.
- 4Zero voltage switch for safe and controlled switching.
- 5Meets EN 61000-4 standards for electromagnetic compatibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product type | Solid-state contactor | Number of phases | 1 |
| Mains type | 1-phase | Test voltage (Input/output) | 4 kV |
| Input name | Control input | Rated actuating voltage U | 230 V AC |
| Triggering voltage range | 24 V AC ... 275 V AC | Rated actuating current I | approx. 17 mA |
| Switching threshold | ≤ 6 V AC (“0” signal)
≥ 22 V AC (“1” signal) | Operating voltage display | Green LED |
| Transmission frequency | 6 Hz | Operating voltage range | 42 V AC ... 660 V AC |
| Rated operating current at AC-51 | 50 A | Rated operating current at AC-53a | 30 A |
| Peak offstate voltage | 1200 V | Mains frequency | 45 Hz
65 Hz |
| Load current range | 150 mA ... 50 A (see to derating) | Leakage current | < 3 mA (In off state) |
| Residual voltage | < 1.6 V | Surge current | 1900 A (t = 10 ms) |
| Max. load value | 18000 A | Protective circuit | RCV circuit |
| Phase angle cos phi min | 0.5 | Connection method | Screw connection |
| Stripping length | 8 mm | Screw thread | M3 |
| Conductor cross section rigid | 0.5 mm² ... 4 mm² | Conductor cross section flexible | 0.5 mm² ... 4 mm² |
| Conductor cross section AWG | 20 ... 14 | Connection method | Screw connection |
| Stripping length | 8 mm | Screw thread | M5 |
| Conductor cross section rigid | 4 mm² ... 25 mm² | Conductor cross section flexible | 4 mm² ... 25 mm² |
| Conductor cross section AWG | 12 ... 3 | Operating voltage display | Green LED |
| Width | 45 mm | Height | 103 mm |
| Depth | 103 mm | Color | green (RAL 6021) |
| Ambient temperature (operation) | -30 °C ... 70 °C | Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Standards/regulations | EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 55011 | Mounting type | DIN rail mounting |
| Assembly note | Can be aligned with ≥ 22.5 mm spacing | Mounting position | Vertical (horizontal DIN rail) |
Specifications may be subject to change without notice
