Product Model

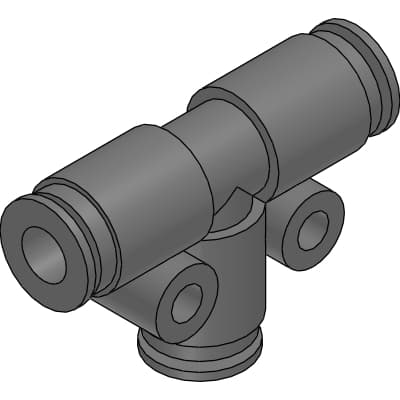

ZW-T6-0
Key Features
- 1Compact size saves space.
- 2Smooth insertion and secure sealing.
- 3Flame-resistant resin incorporated in white body and push ring (UL94 Standards V-0 equivalent).
- 4Stainless steel used for all metal parts.
- 5Compatible with various tube sizes (Φ4, Φ6, Φ8, Φ10, Φ12).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | ZW-T6-0 | Applicable tube outer diameter φ | 6mm |
| L | 21.0mm | B | 17.5mm |
| C | 12.5mm | E | 4.2mm |
| F | 13.5mm | N | 8.5mm |
| Min. bore size | 9.7mm | Effective cross section area | 9.7mm^2 |
| Weight | 12.0g |
Specifications may be subject to change without notice
