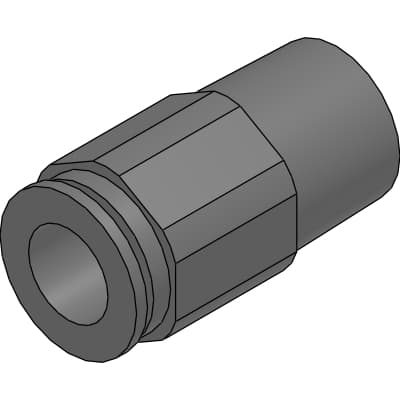

Product Model
ZW-S8-8
Key Features
- 1Compact Design: Saves space with a compact size.
- 2Smooth Insertion: Ensures easy and smooth insertion.
- 3Secure Sealing: Provides reliable and secure sealing.
- 4Flame-Resistant Resin: Incorporates flame-resistant resin for safety.
- 5Stainless Steel Construction: Made from high-quality stainless steel for durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | ZW-S8-8 | Applicable tube outer diameter φ | 8mm |
| Thread | R1/4mm | H | 14mm |
| K | 15.8mm | L | 27.0mm |
| A | 11.0mm | B | 19.0mm |
| Min. bore size | 6.0mm | Effective cross section area | 22.4mm2 |
| Weight | 17.0g |
Specifications may be subject to change without notice
