Product Model

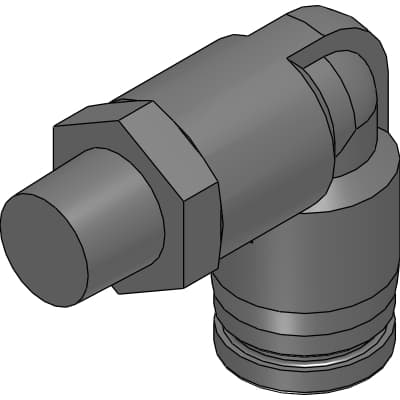

ZSP-L8_6
Key Features
- 1Made from stainless steel (SUS303 or equivalent), perfect for use in corrosive atmospheres.
- 2A wide range of variations for various pneumatic piping systems.
- 3Compliant with the RoHS Directive, eliminating harmful substances.
- 4Robust internal structure and parts list ensure long-lasting performance.
- 5Push-in fittings simplify the installation process in pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | ZSP-L8_6 | Applicable tube outer diameter φ | 8mm |
| Thread | R1/8mm | A | 8.0mm |
| L1 | 28.0mm | G1 | 31.3mm |
| C1 | 13.8mm | C2 | 14.5mm |
| B | 18.1mm | L2 | 22.7mm |
| H | 14mm | Effective cross section area | 16.5mm^2 |
| Weight | 17.0g |
Specifications may be subject to change without notice
