Product Model

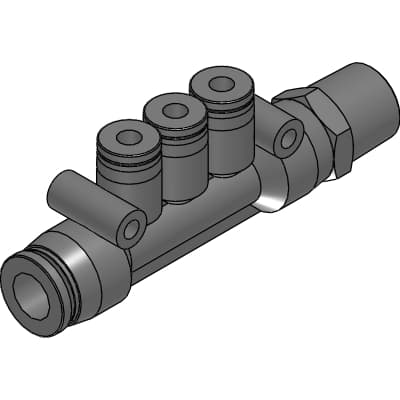

ZSP-KD6-4-6

Key Features
- 1Made from SUS303 stainless steel for durability and resistance to corrosive atmospheres.
- 2Designed to handle high-pressure applications with efficient flow rates.
- 3Compliant with the RoHS Directive, ensuring all harmful substances are eliminated.
- 4Offers a wide range of variations for various pneumatic piping needs.
- 5Features precise dimensions and tolerances for reliable performance in critical applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | ZSP-KD6-4-6 | Applicable tube outer diameter φ | 6mm |
| Applicable tube outer diameter φ | 4mm | Thread | R1/8 |
| A | 8mm | L1 | 68.4mm |
| L2 | 18.4mm | G1 | 34.3mm |
| G2 | 30.1mm | P1 | 10mm |
| P2 | 10mm | C1 | 11.8mm |
| C2 | 9.9mm | C3 | 13.0mm |
| C4 | 10mm | B1 | 17.0mm |
| B2 | 14.9mm | N1 | 34.0mm |
| N2 | 8.0mm | E | 3.3mm |
| H | 12mm | F | 13.0mm |
| Effective cross section area | 5.0mm^2 | Weight | 22g |
Specifications may be subject to change without notice
