Product Model

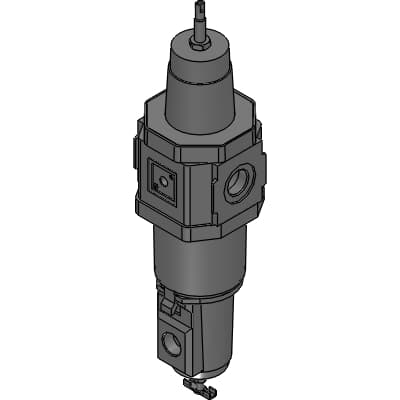

WW8000-20-W
Key Features
- 1Compact modular design for space-saving installation.
- 2Long-lasting chemical fiber elements with reduced clogs and improved service lifespan.
- 3Space-saving recessed pressure gauge for enhanced safety and reduced weight by 50%.
- 4High filtration level of 5μm for clean compressed air quality.
- 5Reliable operation up to 1 Mpa with manual drain cock and standard pressure gauge.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | WW8000 | Port size | 20 : 3/4 |
| Port thread type | Blank : Rc thread | Drain discharge | Blank : With a manual pet cock |
| Mantle (element) | Blank : 5 μm | Knob | Blank : Without knob |
| Warranty period | Blank : 1 year after delivery | Flow direction | Blank : Standard flow (left to right) |
| Attachment bracket type | Blank : Not attached | Attachment pressure gauge | Blank : Not attached |
| Infotext | https://www.ckd.co.jp/kiki/en/product/detail/363/WW%E2%80%BB000-W?t=list&cid=67&sid=0 |
Specifications may be subject to change without notice
