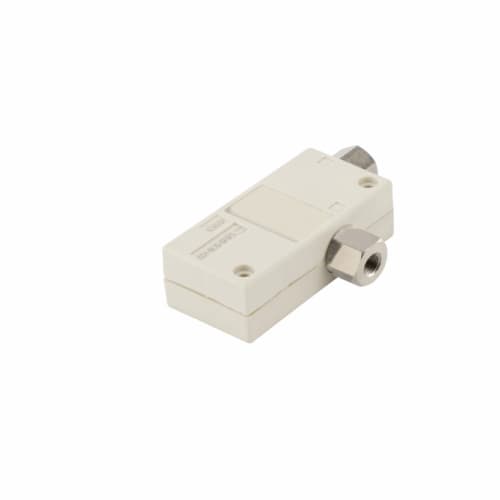

Product Model
VZH-BH07-66S
Key Features
- 1Precision Engineering: Designed with advanced engineering for precise control and reliability.
- 2Durability: Constructed with high-quality materials for long-lasting performance.
- 3Versatile Applications: Suitable for a wide range of industrial applications, including manufacturing and automation.
- 4Enhanced Safety: Equipped with safety features to ensure safe operation and minimize risks.
- 5Efficient Operation: Optimized for efficient operation, reducing downtime and increasing productivity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | VZH | Performance specification | H : High vacuum type(-88kPa) |
| Nozzle diameter | 07：Φ0.7mm | Vacuum port | 6 : Φ6 quick fittings |
| Air supply port | 6 : Φ6 quick fittings | Exhaust port | S : Muffler |
| A | 60.0mm | B | 16.0mm |
| C | 31.0mm | D | 5.8mm |
| E | 2mm | F | 3.2mm |
| G | 47.0mm | H | 22mm |
| Q | 24.0mm | L | 6mm |
| M | -mm | K | 5.0mm |
| J | 6mm |
Specifications may be subject to change without notice
