Product Model

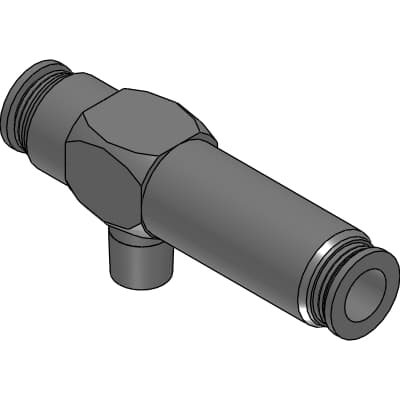

VSC-L20-8A8LS
Key Features
- 1High-Performance Vacuum Solution: The VSC-L20-8A8LS provides efficient vacuum operations with precise nozzle diameters (φ0.5 to φ2.0 mm).
- 2Adjustable Intake Flow Rates: Offers adjustable intake flow rates from 7 to 180 L/min (ANR) to suit various industrial applications.
- 3Robust Construction: Built with metallic body and nickel-plated brass components for durability and reliability.
- 4Versatile Design: Available in various shapes and types (H, L, E) to handle different industrial conditions.
- 5Comprehensive Documentation: Includes detailed PDF catalogs, safety precautions, and 2D/3D CAD designs for easy integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | VSC-L20-8A8LS | M | -mm |
| A | 11mm | D | -mm |
| D1 | 8mm | D2 | -mm |
| R | R1/4mm | L1 | 52.7mm |
| L2 | 46.7mm | L3 | 21mm |
| P | -mm | P1 | 14.5mm |
| P2 | 24mm | B | -mm |
| E | -mm | E1 | 98.3mm |
| E2 | 23.3mm | C | 18.1mm |
| C1 | -mm | C2 | -mm |
| Opposite side | 19mm | F | 22mm |
| Nozzle diameter | 2mm | Ultimate vacuum | 66kPa |
| Suction flow | 180l/min | Air consumption | 200l/min |
| Weight | 85.5g |
Specifications may be subject to change without notice
