Product Model

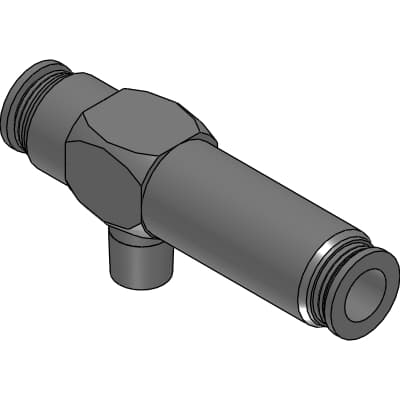

VSC-E20-8A8J
Key Features
- 1Precise Vacuum Control: The VSC-E20-8A8J provides high-vacuum performance with adjustable suction flow rates.
- 2Versatile Nozzle Options: Available in various nozzle diameters (0.5 to 2.0 mm) to match different workpiece sizes.
- 3Robust Construction: Built with durable materials for long-lasting operation in demanding industrial environments.
- 4Customizable Configuration: Selectable shapes and configurations (e.g., pad direct mounting) for tailored solutions.
- 5Enhanced Safety Features: Equipped with a mechanical vacuum switch for safe operation and automatic shutdown in case of emergencies.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | VSC-E20-8A8J | M | -mm |
| A | 11mm | D | -mm |
| D1 | 8mm | D2 | 12mm |
| R | R1/4mm | L1 | 38mm |
| L2 | 32mm | L3 | 21mm |
| P | 22mm | P1 | -mm |
| P2 | -mm | B | 94mm |
| E | 29.2mm | E1 | -mm |
| E2 | -mm | C | -mm |
| C1 | 18.2mm | C2 | 23.3mm |
| Opposite side | -mm | F | 22mm |
| Nozzle diameter | 2mm | Ultimate vacuum | 92kPa |
| Suction flow | 84l/min | Air consumption | 150l/min |
| Weight | 104.5g |
Specifications may be subject to change without notice
