Product Model

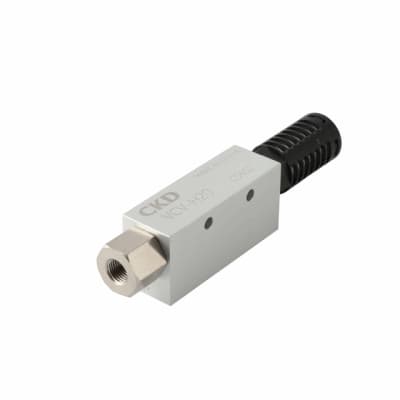

VCV-H15
Key Features
- 1High-quality pneumatic cylinders for precise control.
- 2Versatile hand/chuck assistive devices for efficient operations.
- 3Reliable directional control valves for fluid management.
- 4Durable components designed for heavy-duty industrial use.
- 5Comprehensive product lineup for various industrial machinery needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | VCV | Performance | H : High vacuum type |
| Nozzle diameter | 15 | Pressure switch | Blank : Without pressure switch |
| A | 63mm | B | 35mm |
| C | 20mm | D | 11mm |
| E | 10mm | F | 20mm |
| G | 25mm | H | 5.0mm |
| 2-ΦI(Mounting hole) | 4.5mm | J | Rp1/4 |
| K | 15mm | L | Rp1/4 |
| M | 51mm | N(Φ) | 19mm |
| O | 17mm | P | 129mm |
Specifications may be subject to change without notice
