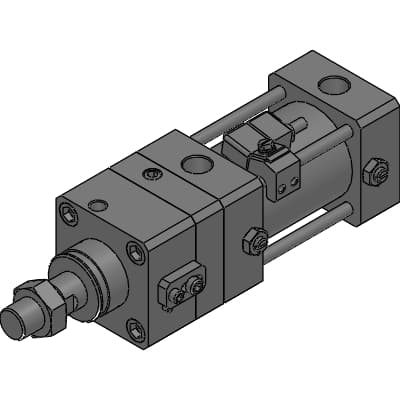

Product Model
USC-L2-00-63B-25-F-H0H-R
Key Features
- 1Advanced Position Locking Mechanism: Locks at any point throughout the full stroke length, ensuring precise control and preventing workpiece damage.
- 2High Precision Engineering: Designed with medium bore sizes (40 to 100 mm) and customizable stroke lengths for precise applications.
- 3Double Acting Capability: Suitable for both forward and backward movements, enhancing versatility in industrial settings.
- 4Strong Magnetic Field Proof Switch: Ensures reliable operation in strong magnetic fields, making it ideal for safety-critical applications.
- 5Customizable Mounting Options: Available in various mounting styles, including axial foot type, rod end flange type, and center trunnion type for flexible installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | USC: Double acting/single rod | Mounting | 00: Basic |
| Bore size | 63mm | Cushion | B: With two-sided cushion |
| Stroke | 25mm | Lock direction | F: Forward locking |
| Switch model No. | H0: Reed, 1-color LED strong magnetic field proof, 2-wire | Lead wire length | Blank: 1 m (standard) |
| Switch quantity | R: 1 on rod side | Option bellows | Blank: None |
| Optional piston rod material | Blank: None | Option cushion needle position | Blank: Cushion needle position R (standard) |
| Option: copper and PTFE free | Blank: None | Accessory | Blank: None |
| Accessory | Blank: None | Accessory | Blank: None |
| Stroke position | 0mm | Product information | Product information |
| A | 28mm | B | 27mm |
| C | 26mm | BA | 17.0mm |
| BC | 53.5mm | BD | 26.8mm |
| BE | 58.5mm | BF | 21.5mm |
| BG | 7mm | BH | 9.0mm |
| D | 22mm | Thread | M8 |
| DB | 12mm | DC | 4mm |
| Thread | Rc3/8 | F | 0mm |
| G | 30mm | J | 38mm |
| K | 80mm | Thread | M18 x 1.5 |
| L | 47.5mm | LL + stroke | 130mm |
| LL | 105mm | MM | 20mm |
| MN | 8mm | MO | 17mm |
| N | 3mm | Q | 15mm |
| SD | 59mm | T | 11mm |
| V | 21mm | WF | 35mm |
| X + stroke | 254.5mm | X | 229.5mm |
| BB | -mm | BD1 | -mm |
| BD2 | -mm | L1 | -mm |
| O | 85mm | P | 47mm |
| RD | 6mm | HD | -mm |
| LA + stroke | -mm | LA | -mm |
| LB | -mm | LC | -mm |
| LD | -mm | LF | -mm |
| LG + stroke | -mm | LG | -mm |
| LH | -mm | LR | -mm |
| LS | -mm | LT | -mm |
| FA + stroke | -mm | FA | -mm |
| FC | -mm | FD | -mm |
| FF | -mm | FG + stroke | -mm |
| FG | -mm | MT | -mm |
| FH | -mm | FJ + stroke | -mm |
| FJ | -mm | FL | -mm |
| FM | -mm | FT | -mm |
| CA + stroke | -mm | CA | -mm |
| CD | -mm | CE | -mm |
| CF | -mm | CI | -mm |
| CJ + stroke | -mm | CJ | -mm |
| CQ | -mm | CV | -mm |
| CW | -mm | AQ | -mm |
| AQPLUS | -mm | TB | -mm |
| TC | -mm | TD | -mm |
| TE | -mm | TF | -mm |
| TG | -mm | TJ | -mm |
| TM | -mm | TN | -mm |
| TK | -mm | TY + stroke/2 | -mm |
| TY | -mm | TZ + stroke/2 | -mm |
| TZ | -mm |
Specifications may be subject to change without notice
