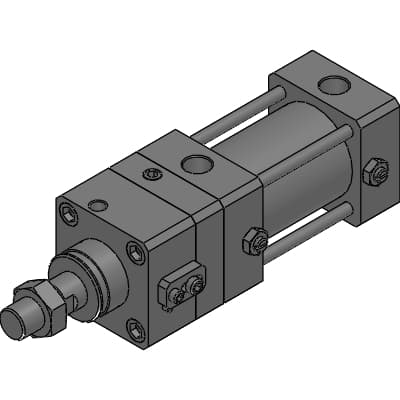

Product Model
USC-00-80B-25-F
Key Features
- 1Advanced Position Locking Mechanism: Locks at any point throughout the full stroke length for precise control.
- 2High Abrasion Resistance: Round slit method ensures long-lasting performance in demanding applications.
- 3Double Acting Design: Suitable for both forward and backward movements, enhancing versatility.
- 4Customizable Stroke Length: Available in various lengths (25, 50, 75, 100, 150, 200, 250 mm) to meet specific needs.
- 5Enhanced Safety Features: Prevents cylinder from falling due to its own weight during power blackouts, reducing workpiece damage.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | USC: Double acting/single rod | Mounting | 00: Basic |
| Bore size | 80mm | Cushion | B: With two-sided cushion |
| Stroke | 25mm | Lock direction | F: Forward locking |
| Option bellows | Blank: None | Optional piston rod material | Blank: None |
| Option cushion needle position | Blank: Cushion needle position R (standard) | Option: copper and PTFE free | Blank: None |
| Accessory | Blank: None | Accessory | Blank: None |
| Accessory | Blank: None | Stroke position | 0mm |
| Product information | Product information | A | 36mm |
| B | 32mm | C | 34mm |
| BA | 21.0mm | BC | 62.5mm |
| BD | 33.3mm | BE | 71.0mm |
| BF | 25.0mm | BG | 8mm |
| BH | 10.0mm | D | 26mm |
| Thread | M12 | DB | 16mm |
| DC | 5mm | Thread | Rc1/2 |
| F | 0mm | G | 34mm |
| J | 43mm | K | 98mm |
| Thread | M22 x 1.5 | L | 56.0mm |
| LL + stroke | 141mm | LL | 116mm |
| MM | 25mm | MN | 11mm |
| MO | 22mm | N | 3.5mm |
| Q | 17mm | SD | 74mm |
| T | 13mm | V | 23.5mm |
| WF | 48mm | X + stroke | 299.5mm |
| X | 274.5mm | BB | -mm |
| BD1 | -mm | BD2 | -mm |
| L1 | -mm | LA + stroke | -mm |
| LA | -mm | LB | -mm |
| LC | -mm | LD | -mm |
| LF | -mm | LG + stroke | -mm |
| LG | -mm | LH | -mm |
| LR | -mm | LS | -mm |
| LT | -mm | FA + stroke | -mm |
| FA | -mm | FC | -mm |
| FD | -mm | FF | -mm |
| FG + stroke | -mm | FG | -mm |
| MT | -mm | FH | -mm |
| FJ + stroke | -mm | FJ | -mm |
| FL | -mm | FM | -mm |
| FT | -mm | CA + stroke | -mm |
| CA | -mm | CD | -mm |
| CE | -mm | CF | -mm |
| CI | -mm | CJ + stroke | -mm |
| CJ | -mm | CQ | -mm |
| CV | -mm | CW | -mm |
| AQ | -mm | AQPLUS | -mm |
| TB | -mm | TC | -mm |
| TD | -mm | TE | -mm |
| TF | -mm | TG | -mm |
| TJ | -mm | TM | -mm |
| TN | -mm | TK | -mm |
| TY + stroke/2 | -mm | TY | -mm |
| TZ + stroke/2 | -mm | TZ | -mm |
Specifications may be subject to change without notice
