Product Model

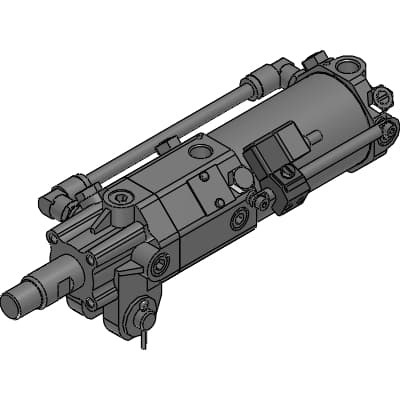

UCAC2-L2-A-63-50-F-H0-R
Key Features
- 1High-Performance Pneumatic Operation: The UCAC2-L2-A-63-50-F-H0-R operates with compressed air, ensuring reliable and efficient performance in various industrial settings.
- 2Robust Position Locking Mechanism: Equipped with a new swash plate type locking mechanism, this cylinder provides strong axial force for secure position locking.
- 3Double Acting Design: Double acting operation allows for both extension and retraction, enhancing versatility and control in applications.
- 4Standard Stroke Length: Available in standard stroke lengths of 50 mm, 75 mm, 100 mm, 125 mm, and 150 mm to suit diverse application needs.
- 5Compact and Durable Design: Designed with a bore size of ø63 mm and ø50 mm, this cylinder is compact yet durable, making it ideal for space-constrained environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | UCAC2 | Bore size | 63mm |
| Clevis width | A: 16.5 mmmm | Port thread | Blank: Rc thread |
| Cushion | Blank/H: Head side cushioned | Stroke | 50mm |
| Stroke position | 0mm | Speed adjustment needle | Blank: With both sides |
| Lock direction/bypass tube position | F: Forward lock (bypass tube position F, port position F1) | Switch model No. | H0, red, strong magnetic field proof switch, 1-color lamp, 2-wire |
| Lead wire direction | Blank: Axis | Lead wire length | Blank: 1 m Lead wire |
| Switch quantity | R: 1 on rod side | Switch mounting position | Blank: A position |
| Accessory | Blank: Without accessory (rod eye) | Bellows | Blank: None |
| Accessory | Blank: None | Limit switch mounting base | Blank: None |
| Product information | Product information | A | 70mm |
| B | 73mm | C | 35mm |
| D | 56mm | E | 70mm |
| F | 63mm | G | -mm |
| L | 143mm | LL | 174mm |
| X | 255mm | θ | -° |
Specifications may be subject to change without notice
