Product Model

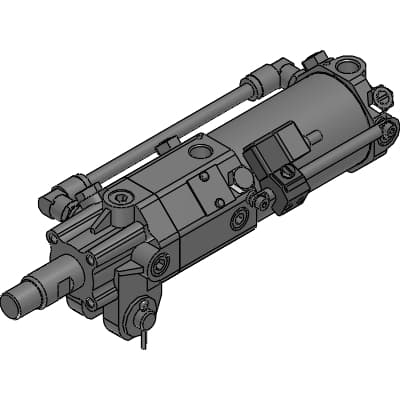

UCAC2-L2-A-50-50-F-H0-R
Key Features
- 1Precise Positioning: The UCAC2-L2-A-50-50-F-H0-R offers a new swash plate type locking mechanism for free position locking, ensuring accurate rod position control.
- 2Robust Locking Mechanism: Generates axial force F to hold the rod position, providing a strong and reliable locking system.
- 3Double Acting Design: Suitable for both forward and backward movements, enhancing versatility in various applications.
- 4Strong Magnetic Field: Equipped with a strong magnetic field, facilitating easy installation and operation of reed switches.
- 5High-Pressure Compatibility: Operates within a max working pressure of 1.0 MPa, ensuring reliable performance under demanding conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | UCAC2 | Bore size | 50mm |
| Clevis width | A: 16.5 mmmm | Port thread | Blank: Rc thread |
| Cushion | Blank/H: Head side cushioned | Stroke | 50mm |
| Stroke position | 0mm | Speed adjustment needle | Blank: With both sides |
| Lock direction/bypass tube position | F: Forward lock (bypass tube position F, port position F1) | Switch model No. | H0, red, strong magnetic field proof switch, 1-color lamp, 2-wire |
| Lead wire direction | Blank: Axis | Lead wire length | Blank: 1 m Lead wire |
| Switch quantity | R: 1 on rod side | Switch mounting position | Blank: A position |
| Accessory | Blank: Without accessory (rod eye) | Bellows | Blank: None |
| Accessory | Blank: None | Limit switch mounting base | Blank: None |
| Product information | Product information | A | 60mm |
| B | 69mm | C | 30mm |
| D | 50mm | E | 60mm |
| F | 61mm | G | -mm |
| L | 141mm | LL | 172mm |
| X | 253mm | θ | -° |
Specifications may be subject to change without notice
