Product Model

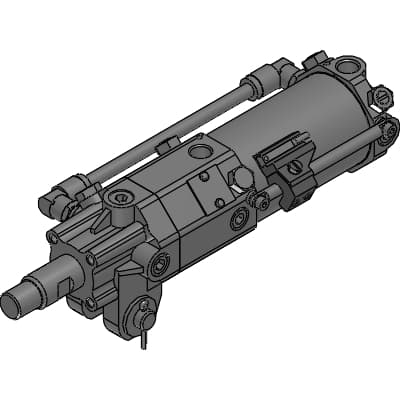

UCAC2-A-63-50-F-T0H-R
Key Features
- 1Advanced swash plate locking mechanism for precise position control.
- 2Double acting operation for smooth and efficient movement.
- 3Reliable position locking ensures workpiece stability during power failures.
- 4Selectable switch mounting options for flexible installation.
- 5Compatible with a wide range of bore sizes (50mm and 63mm) for versatile applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | UCAC2 | Bore size | 63mm |
| Clevis width | A: 16.5 mmmm | Port thread | Blank: Rc thread |
| Cushion | Blank/H: Head side cushioned | Stroke | 50mm |
| Stroke position | 0mm | Speed adjustment needle | Blank: With both sides |
| Lock direction/bypass tube position | F: Forward lock (bypass tube position F, port position F1) | Switch model No. | T0: Reed, 1-color LED, 2-wire |
| Lead wire direction | H: Straight | Lead wire | Blank: None |
| Lead wire length | Blank: 1 m Lead wire | Switch option | Blank: None |
| Switch quantity | R: 1 on rod side | Switch mounting position | Blank: A position |
| Accessory | Blank: Without accessory (rod eye) | Bellows | Blank: None |
| Accessory | Blank: None | Limit switch mounting base | Blank: None |
| Product information | Product information | A | 70mm |
| B | 73mm | C | 35mm |
| D | 56mm | E | 70mm |
| F | 63mm | G | -mm |
| L | 143mm | LL | 174mm |
| X | 255mm | θ | -° |
Specifications may be subject to change without notice
