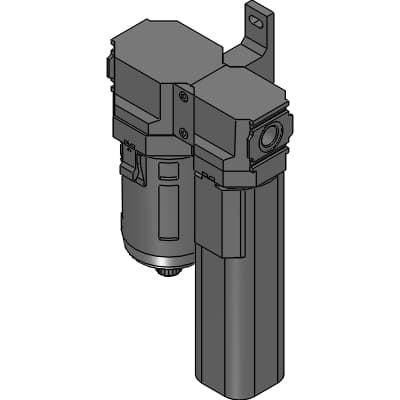

Product Model
SU302E-05-W-C1
Key Features
- 1Reduces operation costs through energy-saving moisture removal with a purge ratio of 10%.
- 2Achieves low dew point as a drying agent, ensuring optimal air quality.
- 3Space-saving design with non-moving parts for simple and quick installation.
- 4Available in three types of units to suit various applications and air flow rates.
- 5Includes air filter, oil mist filter, super dryer, regulator, and differential pressure gauge for comprehensive air treatment.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model no. | SU302E | Inlet air pressure | 05 : 0.5 MPa |
| Unit type | C1 | Option : Common exhaust | Blank : None |
| Option : Reversed inlet and outlet | Blank : None | Infotext | https://www.ckd.co.jp/kiki/en/product/detail/84/SD%E3%83%BBSU%E3%83%BBSDM?t=list&cid=75&sid=0 |
| A | 143mm | B | 223mm |
| C | 278mm | D | 80mm |
| E | 55mm | F | 97.0mm |
| G | 0.0mm |
Specifications may be subject to change without notice
