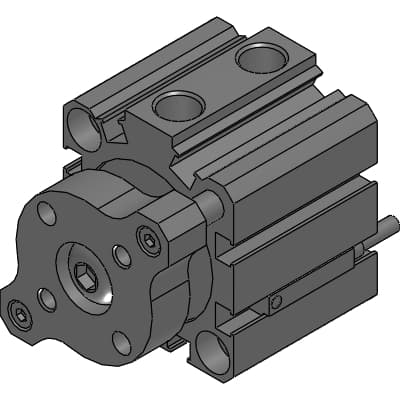

Product Model
SSG-L-12-5-T2H-R
Key Features
- 1Precision Control: Designed for precise operations with a double-acting single rod type.
- 2Customizable Switches: Equipped with proximity switches (T2H) for easy integration and customization.
- 3Compact Design: Compact size makes it ideal for space-constrained applications.
- 4Versatile Bore Sizes: Available in various bore sizes (ø12, ø16, ø20, ø25, ø32, ø40, ø50, ø63, ø80, ø100).
- 5Robust Construction: Built with stainless steel for high corrosion resistance and long service life.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | SSG-L | Bore size | 12mm |
| Cushion | Blank: No cushion | Stroke | 5mm |
| Switch model No. | T2: Proximity, 1-color LED, 2-wire | Lead wire direction | H: Straight |
| Lead wire | Blank: None | Lead wire length | Blank: 1 m (standard) |
| Switch option | Blank: None | Switch quantity | R: 1 on rod side |
| Piston rod position | 0mm | Product information | Product information |
| A | 31.5mm | A+STROKE | 36.5mm |
| B | 22.0mm | B+STROKE | 27.000mm |
| C | 5.5mm | D | 5.5mm |
| EE | M5 | F | 25mm |
| G | -mm | H | 8.5mm |
| I | 3.5mm | J | 6.5 spot face depth 3.5 |
| K | 32mm | KA | M4 depth 7 |
| MM | 6mm | N | 15.5mm |
| NN | M3 | O | 15mm |
| Q | 5mm | R | 3mm |
| U | 10±0.1 | Y | 6mm |
| W | 31mm | HD | 0mm |
| RD | 2.5mm |
Specifications may be subject to change without notice
