Product Model

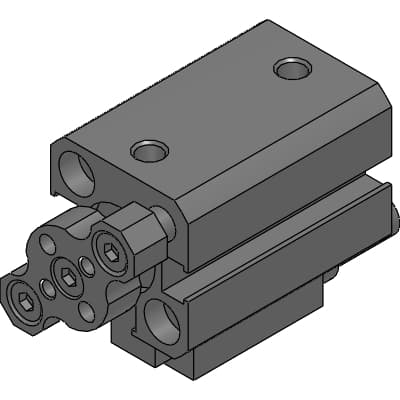

SSG-L1-16-10-T1H-R
Key Features
- 1Ideal for space-saving applications with a bore size of ø16 mm.
- 2Provides precise control with double-acting single rod functionality.
- 3Enhances visibility with a 2-color indicator for easy maintenance checks.
- 4Ensures smooth operation with an off-delay type switch.
- 5Designed to withstand strong magnetic fields, ensuring reliable performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | SSG-L1 | Bore size | 16mm |
| Cushion | Blank: No cushion | Stroke | 10mm |
| Switch model No. | T1: Proximity, 1-color LED, 2-wire | Lead wire direction | H: Straight |
| Lead wire length | Blank: 1 m (standard) | Switch quantity | R: 1 on rod side |
| Piston rod position | 0mm | Product information | Product information |
| A | 36.5mm | A+STROKE | 46.5mm |
| B | 27.0mm | B+STROKE | 37.000mm |
| C | 5.5mm | D | 5.5mm |
| EE | M5 | F | 29mm |
| H | 9.0mm | I | 3.5mm |
| J | 6.5 spot face depth 3.5 | K | 38mm |
| KA | M4 depth 7 | MM | 8mm |
| N | 20.0mm | NN | M3 |
| O | 19mm | Q | 5mm |
| R | 3mm | U | 14±0.1 |
| Y | 6mm | W | 37mm |
| HD | 0mm | RD | 2mm |
Specifications may be subject to change without notice
