Product Model

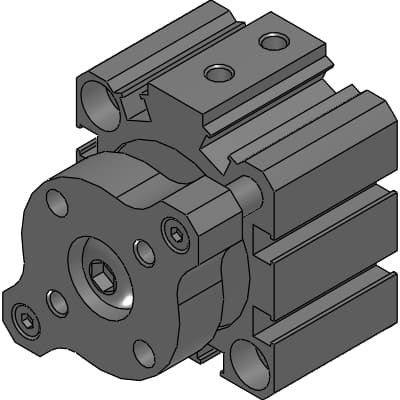

SSG-63-10
Key Features
- 1High Precision: Designed for precise operations with bore sizes ranging from ø12 to ø100.
- 2Durability: Constructed with robust materials like aluminum alloy and stainless steel for long-lasting performance.
- 3Versatile Mounting: Compatible with various mounting pitches, ensuring smooth replacement and integration.
- 4Improved Lateral Load Resistance: Equipped with a guide rod for enhanced stability and non-rotating performance.
- 5Easy Maintenance: Features convenient plate design for improved visibility and maintainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | SSG | Bore size | 63mm |
| Cushion | Blank: No cushion | Stroke | 10mm |
| Piston rod position | 0mm | Product information | Product information |
| A | 56.0mm | A+STROKE | 66.0mm |
| B | 36.0mm | B+STROKE | 46.000mm |
| C | 13.0mm | D | 11.0mm |
| EE | Rc 1/4 | F | 77mm |
| G | 84mm | H | 18.0mm |
| I | 8.7mm | J | 14 spot face depth 9 |
| K | 103mm | KA | M10 depth 25 |
| MM | 20mm | N | 60.0mm |
| NN | M6 | O | 68mm |
| Q | 12mm | R | 6mm |
| U | 50±0.2 | Y | 12mm |
| W | 102mm |
Specifications may be subject to change without notice
