Product Model

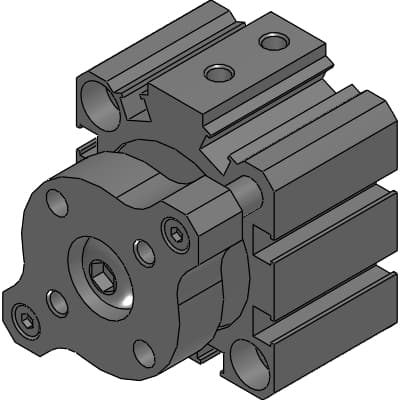

SSG-32-5
Key Features
- 1Ideal for space-saving applications.
- 2Enhanced lateral load resistance for stable performance.
- 3Compatible mounting pitch with the compact cylinder SSD Series.
- 4Available in various bore sizes (ø12 to ø100).
- 5Double acting single rod type with no cushion or rubber cushion options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | SSG | Bore size | 32mm |
| Cushion | Blank: No cushion | Stroke | 5mm |
| Piston rod position | 0mm | Product information | Product information |
| A | 40.0mm | A+STROKE | 45.0mm |
| B | 23.0mm | B+STROKE | 28.000mm |
| C | 10.0mm | D | 5.5mm |
| EE | M5 | F | 45mm |
| G | 49.5mm | H | 12.0mm |
| I | 5.5mm | J | 9 spot face depth 5.5 |
| K | 60mm | KA | M6 depth 11 |
| MM | 16mm | N | 34.0mm |
| NN | M5 | O | 36mm |
| Q | 6mm | R | 5mm |
| U | 28±0.2 | Y | 10mm |
| W | 59mm |
Specifications may be subject to change without notice
