Product Model

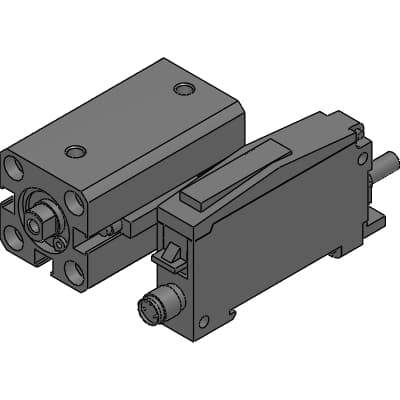

SSD-LN-5020-10HC114LS
Key Features
- 1Advanced Length Measurement: Equipped with a special magnetic sensor for nearly linear output, enabling precise length measurement.
- 2Dual Functionality: Combines actuator function with detection and inspection capabilities for efficient workpiece handling.
- 3Digital Display: Simplifies inspection with direct digital display of results, eliminating post-processing hassles.
- 4Versatile Bore Sizes: Available in φ12, φ16, φ20, φ32, and φ50 bore sizes to suit various applications.
- 5Enhanced Safety Features: Includes safety precautions and user's manual for safe operation and maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Drive component specifications | SSD | Cylinder bore size (mm) | 50: ø50 |
| Cylinder stroke (mm) | 20 | Position | 0 |
| Sensor lead wire outlet direction | H: Axial lead wire | Sensor mounting surface | 1: Right side |
| Analog output ON/OFF switch mounting surface | 1: Right side | Detecting position (mm) | 4mm |
| Amplifier unit output type and shape | LS: Amplifier separate, analog output | Indicator | Blank: None |
| Product information | Product information | A | 53.5mm |
| B | 45.5mm | C | 15.5mm |
| D | 10.5mm | EE | RC1/4mm |
| F | 64mm | G | 71.0mm |
| H | 33mm | I | 6.9mm |
| J | 11 spot face depth 6.5mm | K | 86mm |
| KA | M8 depth 13mm | KK | M10 depth 15mm |
| L | 15mm | M | 18mm |
| MM | 20mm | N | 50.0mm |
| O | 7mm | X | 8.0mm |
Specifications may be subject to change without notice
