Product Model

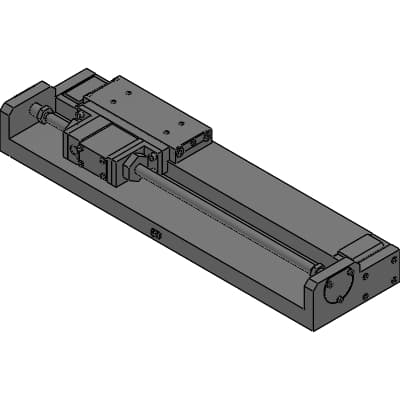

SRT3-00-63B-200-M0H-R
Key Features
- 1High-Performance Rodless Cylinder: Designed for demanding applications with double acting and compressed air operation.
- 2Customizable Stroke Lengths: Available in various bore sizes (ø12 to ø63) and customizable stroke lengths up to 200 mm.
- 3Brake Functionality: Equipped with a reliable brake system for precise control and safety.
- 4Durable Construction: Built with robust materials to withstand high pressures (max. working pressure: 0.7 MPa).
- 5Versatile Mounting Options: Compatible with basic and axial foot mounting brackets for easy installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | SRT3 | Mounting | 00: Basic |
| Bore size | 63mm | Stroke | 200mm |
| Cushion | B: With two-sided cushion | Switch model No. | M0, reed, 1-color LED, 2-wire |
| Lead wire direction | H: Straight | Lead wire length | Blank: 1 m (standard) |
| Switch quantity | R: 1 on R side | Option | None |
| Lot position | 0mm | A | 209.0mm |
| B | 35.0mm | C | 95mm |
| D | 50mm | DC | 39mm |
| DD | 42.0mm | F | 59.0mm |
| G | 112mm | H | 105mm |
| HA | 35.0mm | HB | 52.0mm |
| HC | 20mm | I | 68mm |
| J | 58.0mm | KA | 168.0mm |
| L + stroke | 536mm | L | 336mm |
| LL + stroke | 544mm | LL | 344mm |
| M | - | N | M10 depth 15 |
| O | 9.7mm | P + STROKE | 458mm |
| P | 258mm | Q | Rc1/8 |
| R | Rc3/8 | S | 93.0mm |
| T | 84.0mm | TA | 168mm |
| TB | 110mm | TC | 102mm |
| TD | 40mm | TE | M8 depth 13 |
| TG | -mm | U | 39.0mm |
| W | 1mm | XF | 210.0mm |
| YA | 98.5mm | YB | 89mm |
| YC | 9.0mm | YD | 10mm |
| Product information | Product information |
Specifications may be subject to change without notice
