Product Model

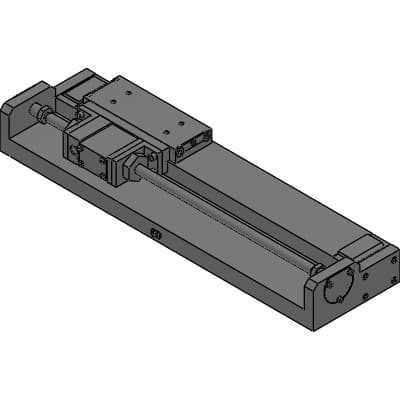

SRT3-00-16B-200-M0H-R
Key Features
- 1Designed for fast piston speeds up to 1000 mm/s.
- 2Available in 1 mm increments for precise control.
- 3Built with high-quality materials for long-lasting performance.
- 4Efficient operation using compressed air as the working fluid.
- 5Compatible with switch installation, enhancing control and precision.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Model No. | SRT3 | Mounting | 00: Basic |
| Bore size | 16mm | Stroke | 200mm |
| Cushion | B: With two-sided cushion | Switch model No. | M0, reed, 1-color LED, 2-wire |
| Lead wire direction | H: Straight | Lead wire length | Blank: 1 m (standard) |
| Switch quantity | R: 1 on R side | Option | None |
| Lot position | 0mm | A | 98.5mm |
| B | 18.0mm | C | 43mm |
| D | 20mm | DC | 12mm |
| DD | 18.0mm | F | 18.5mm |
| G | 72mm | H | 48mm |
| HA | 14.0mm | HB | 22.0mm |
| HC | 8mm | I | 30mm |
| J | 31.0mm | KA | 82.5mm |
| L + stroke | 365mm | L | 165mm |
| LL + stroke | 373mm | LL | 173mm |
| M | M3 depth 5 | N | M3 depth 5 |
| O | 7.5mm | P + STROKE | 357mm |
| P | 157mm | Q | M5 |
| R | M5 | S | 42.0mm |
| T | 38.5mm | TA | 88mm |
| TB | 48mm | TC | 32mm |
| TD | 15mm | TE | M3 depth 5 |
| TG | 12mm | U | 4.0mm |
| W | 5mm | XF | 99.5mm |
| YA | 53.5mm | YB | 34mm |
| YC | 4.5mm | YD | 8mm |
